Anti-CRISPR-Cas9 antibody [EPR18991]
- RabMAb
- Recombinant
- What is this?
4
(1 Review)
|
(10 Publications)
Anti-CRISPR-Cas9 antibody [EPR18991] (ab189380) is a rabbit monoclonal antibody detecting CRISPR-Cas9 in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IHC-P, ICC/IF.
- Biophysical QC for unrivalled batch-batch consistency
View Alternative Names
csn1, SPy_1046, cas9, CRISPR-associated endonuclease Cas9/Csn1, SpCas9, SpyCas9
- ICC
Supplier Data
Immunocytochemistry - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Immunocytochemical analysis of agarose-embedded sections of 293T (Human epithelial cell line from embryonic kidney) cells transfected with blank pcDNA3.1(+)-GFP-Myc vector labeling CRISPR-Cas9 with ab189380 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.
Negative on 293T cells transfected with blank pcDNA3.1(+)-GFP-Myc vector.
Counter stained with Hematoxylin.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Immunohistochemical analysis of paraffin-embedded Mouse stomach tissue labeling CRISPR-Cas9 with ab189380 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.
No staining on mouse stomach is observed.
Counter stained with Hematoxylin.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Immunohistochemical analysis of paraffin-embedded Rat cerebrum tissue labeling CRISPR-Cas9 with ab189380 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.
No staining on rat cerebrum is observed.
Counter stained with Hematoxylin.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Immunohistochemical analysis of paraffin-embedded Human stomach tissue labeling CRISPR-Cas9 with ab189380 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.
No staining on Human stomach is observed.
Counter stained with Hematoxylin.
Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
- ICC/IF
Supplier Data
Immunocytochemistry/ Immunofluorescence - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized 293T (Human epithelial cell line from embryonic kidney) cells transfected with CRISPR-Cas9-GFP or GFP only, labeling CRISPR-Cas9 with ab189380 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 647) (ab150079) secondary antibody at 1/1000 dilution.
Confocal image showing positive staining on 293T cells transfected with CRISPR-Cas9 with GFP-tag.
The nuclear counterstain is DAPI (blue).
Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (Alexa Fluor® 594 Goat anti-Mouse secondary) at 1/1000 dilution (red).
The negative controls are as follows : -
-ve control 1 : ab189380 at 1/500 dilution followed by ab150120 (Alexa Fluor® 594 Goat anti-Mouse secondary) at 1/1000 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150079 (Alexa Fluor® 647 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.
- Flow Cyt (Intra)
Lab

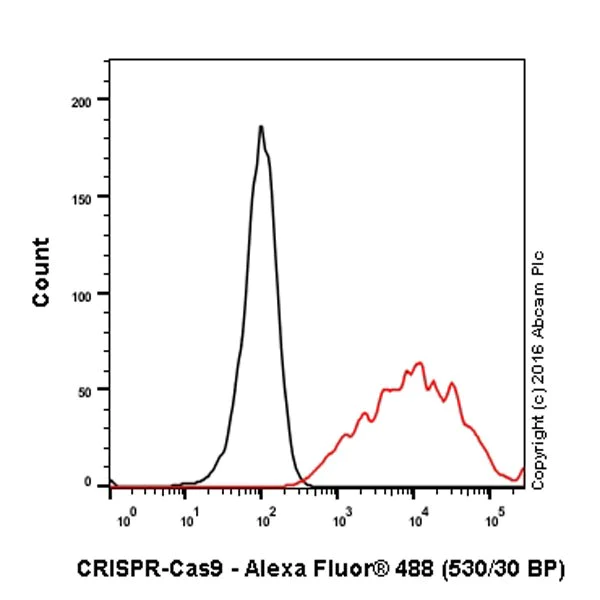

Flow Cytometry (Intracellular) - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Intracellular Flow Cytometry analysis of HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate (transfected with CRISPR-Cas9 (Q99ZW2, Streptococcus pyogenes serotype M1) with GFP-Myc tag) labelling CRISPR-Cas9 (red) with ab189380 at dilution of 1/70. The secondary antibody used was Alexa Fluorr® 488 goat-anti-rabbit IgG (1/2000). Cells were fixed with 4% paraformaldehyde. Isotype control antibody was (ab172730) Rabbit monoclonal IgG (black).
- ICC
Supplier Data
Immunocytochemistry - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Immunocytochemical analysis of agarose-embedded sections of 293T (Human epithelial cell line from embryonic kidney) cells transfected with Streptococcus pyogenes serotype M1 Cas9 (pcDNA3.1(+)-GFP-Myc) labeling CRISPR-Cas9 with ab189380 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.
Positive staining on 293T cells transfected with Streptococcus pyogenes serotype M1 Cas9 (pcDNA3.1(+)-GFP-Myc) is observed.
Counter stained with Hematoxylin.
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.
- WB
Supplier Data

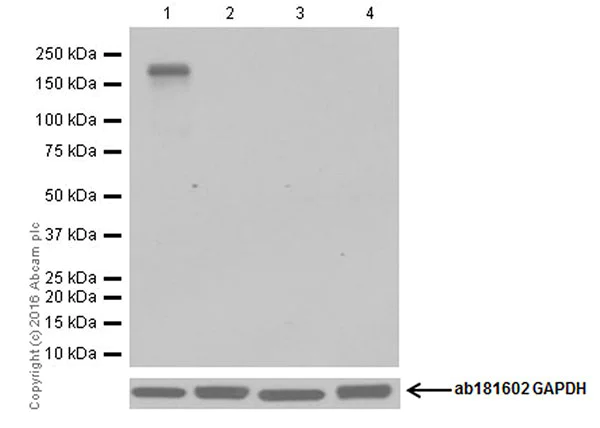

Western blot - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Blocking/Dilution buffer : 5% NFDM/TBST.
All lanes:
Western blot - Anti-CRISPR-Cas9 antibody [EPR18991] (ab189380) at 1/20000 dilution
Lane 1:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (Q99ZW2, Streptococcus pyogenes serotype M1) with GFP-Myc tag at 20 µg
Lane 2:
HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg
Lane 3:
NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 20 µg
Lane 4:
Rat embryo lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 158 kDa
Observed band size: 184 kDa
false
Exposure time: 10s
- WB
Unknown

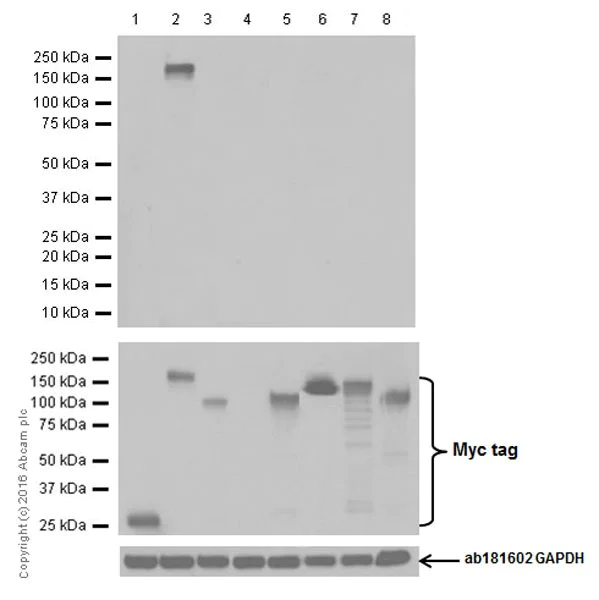

Western blot - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Blocking/Dilution buffer : 5% NFDM/TBST.
All lanes:
Western blot - Anti-CRISPR-Cas9 antibody [EPR18991] (ab189380) at 1/20000 dilution
Lane 1:
Empty vector with GFP-Myc tag (vector control) transfected HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (Q99ZW2, Streptococcus pyogenes serotype M1) with GFP-Myc tag at 20 µg
Lane 3:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (G3ECR1, Streptococcus thermophilus, N–terminal aa1-800) with GFP-Myc tag at 20 µg
Lane 4:
Empty vector with Myc-His tag (vector control) transfected HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 5:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (A1IQ68, Neisseria meningitidis serogroup A / serotype 4A (strain Z2491)) with Myc-His tag at 20 µg
Lane 6:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (G3ECR1, Streptococcus thermophilus) with Myc-His tag at 20 µg
Lane 7:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (Q03JI6, Streptococcus thermophilus (strain ATCC BAA-491 / LMD-9)) with Myc-His tag at 20 µg
Lane 8:
HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate transfected with CRISPR-Cas9 (J7RUA5, Staphylococcus aureus subsp. aureus) with Myc-His tag at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 158 kDa
Observed band size: 184 kDa
false
Exposure time: 3s
- WB
Lab

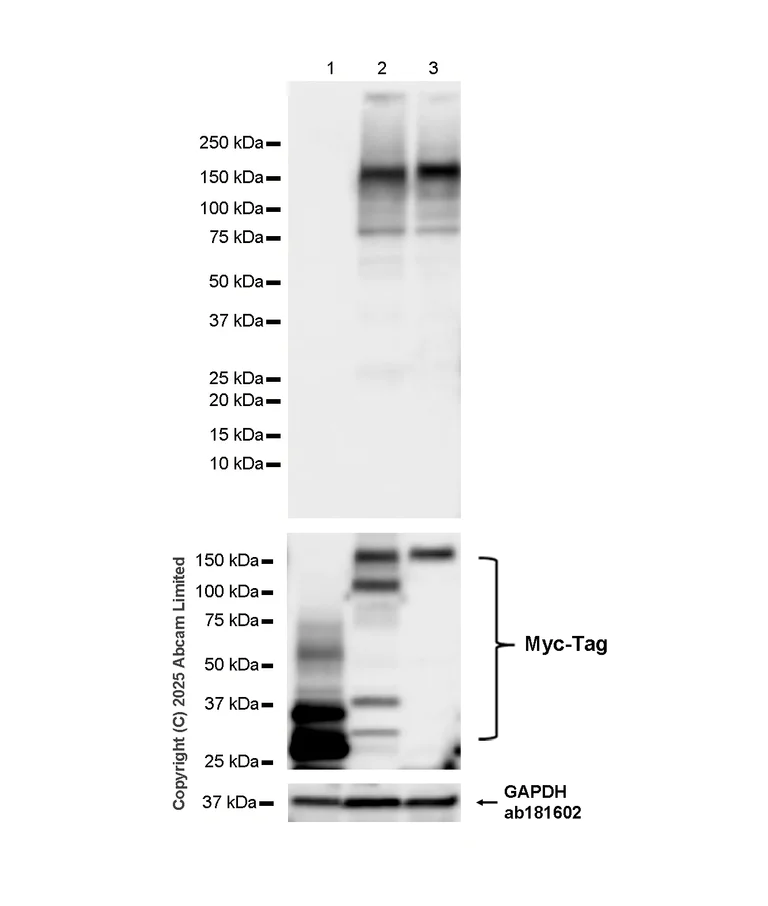

Western blot - Anti-CRISPR-Cas9 antibody [EPR18991] (AB189380)
Blocking and diluting buffer and concentration : 5% NFDM/TBST.
All lanes:
Western blot - Anti-CRISPR-Cas9 antibody [EPR18991] (ab189380) at 1/1000 dilution
Lane 1:
HEK-293 (Human epithelial cell line from embryonic kidney) cells transfected with an empty vector containing a Myc-Tag, whole cell lysate at 20 µg
Lane 2:
HEK-293 cells transfected with CRISPR-Cas9 (Q99ZW2, Streptococcus pyogenes serotype M1) containing a Myc-Tag, whole cell lysate at 20 µg
Lane 3:
HEK-293 cells transfected with Cas9/Csn1 point mutation (D10A and H840A) [dCas9] containing a Myc-Tag, whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Observed band size: 158 kDa
false
Exposure time: 4s
Related conjugates and formulations (4)
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-CRISPR-Cas9 antibody [EPR18991]
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-CRISPR-Cas9 antibody [EPR18991]
-
Anti-CRISPR-Cas9 antibody [EPR18991] - BSA and Azide free
-
HRP Anti-CRISPR-Cas9 antibody [EPR18991]
Reactivity data
Product details
What is this antibody validated in?
Anti-CRISPR-Cas9 antibody [EPR18991] (ab189380) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF). What is the molecular weight of CRISPR-Cas9?
Anti-CRISPR-Cas9 [EPR18991] (ab189380) specifically detects a band for CRISPR-Cas9 (UniProt: Q99ZW2) at a molecular weight of 158kDa.
Trusted by the scientific community
Anti-CRISPR-Cas9 [EPR18991] (ab189380) was first used in a scientific publication in 2016 and has been cited over 10 times in peer-reviewed journals.
Trial sizes available!
Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.
Other related products
We have a range of other formats of antibody clone [EPR18991] also available for your convenience: ab189380, Alexa Fluor® 488 - ab215239, Alexa Fluor® 647 - ab215240, HRP - ab215345, Carrier free - ab232379
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage duration
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
The Cas9 protein functions as an integral part of the CRISPR-Cas9 complex which includes a guide RNA to direct the protein to specific DNA sequences. This complex enables precise cuts at targeted locations within the genome. The Cas9 protein size allows it to fit effectively within cells facilitating genome editing in areas such as research agriculture and therapeutics. The complexity of CRISPR-Cas9 also includes the interaction with other cellular components that assist in DNA repair post-cleavage.
Pathways
CRISPR-Cas9 plays a role in DNA repair pathways particularly non-homologous end joining and homologous recombination. After Cas9-induced DNA breaks these pathways become active to repair the cleaved DNA. The gene editing process facilitated by CRISPR-Cas9 often involves interaction with DNA repair proteins like ku70/80 and Rad51 in response to induced breaks. This allows for either the incorporation of new genetic material or the modification of existing genes.
