Anti-CTBP2 antibody [EPR7611(B)]

7 product images

•

  Immunocytochemistry/ Immunofluorescence - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  Immunocytochemistry analysis of SH-SY5Y (Human neuroblastoma epithelial cell) cells labeling CTBP2 with purified ab128871 at 1:50 dilution (2.5 µg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) at 1/200 dilution (2.5 µg/ml) (Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889) (red). Goat anti-rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 µg/ml) dilution. DAPI (blue) was used as a nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse stomach tissue sections labeling CTBP2 with purified ab128871 at 1:12000 (0.011 μg/ml). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 2 (pH 9.0). Tissue was counterstained with Hematoxylin. LeicaDS9800 (BondTM Polymer Refine Detection) was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

•

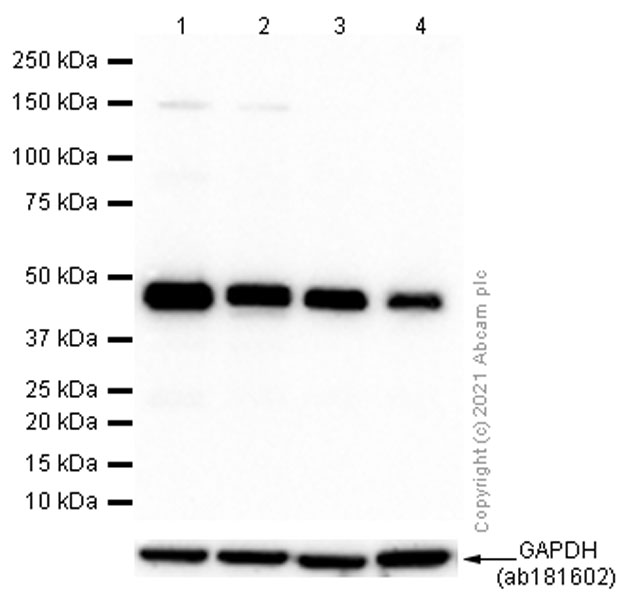

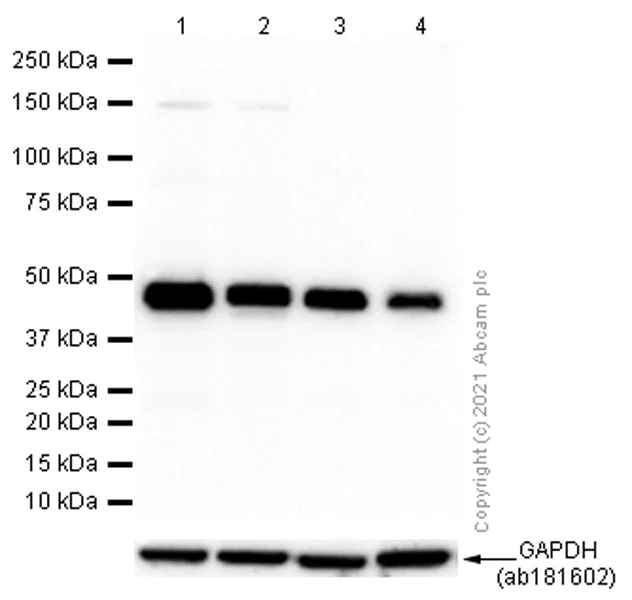

  Western blot - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  All lanes: Western blot - Anti-CTBP2 antibody [EPR7611(B)] (ab128871) at 1/10000 dilution

  Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: SK-BR-3 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 3: Mouse brain lysate at 20 µg

  Lane 4: Rat brain lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 49 kDa

  Observed band size: 49 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human ovarian carcinoma tissue sections labeling CTBP2 with purified ab128871 at 1:6000 (0.021 μg/ml). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 2 (pH 9.0). Tissue was counterstained with Hematoxylin. LeicaDS9800 (BondTM Polymer Refine Detection) was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

•

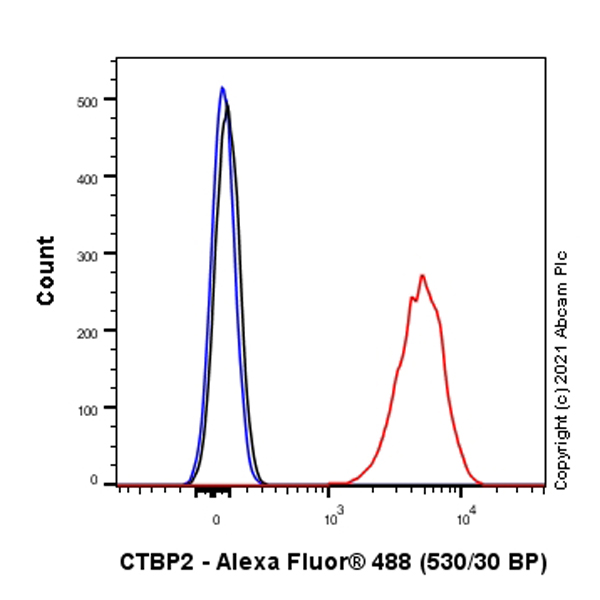

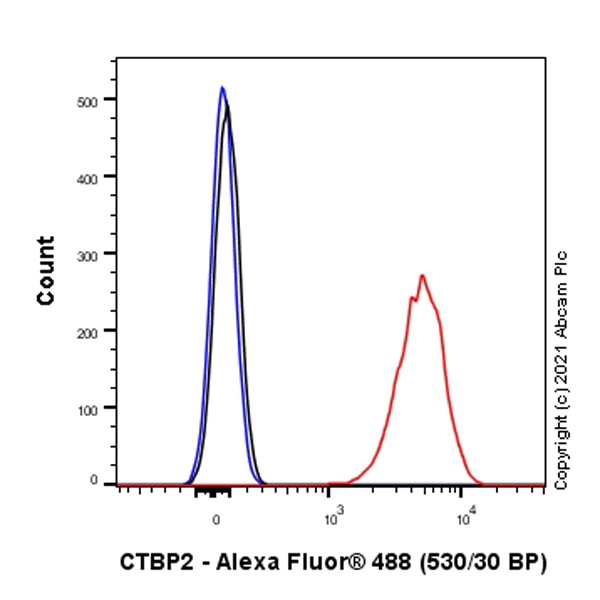

  Flow Cytometry (Intracellular) - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  Flow Cytometry analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labelling CTBP2 with purified ab128871 at 1/20 dilution (5 µg/ml) (red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti-rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (blue).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat stomach tissue sections labeling CTBP2 with Purified ab128871 at 1:12000 (0.011 μg/ml). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 2 (pH 9.0). Tissue was counterstained with Hematoxylin. LeicaDS9800 (BondTM Polymer Refine Detection) was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTBP2 antibody [EPR7611(B)] (ab128871)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human glioma tissue sections labeling CTBP2 with purified ab128871 at 1:6000 (0.021 μg/ml). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 2 (pH 9.0). Tissue was counterstained with Hematoxylin. LeicaDS9800 (BondTM Polymer Refine Detection) was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.
