Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

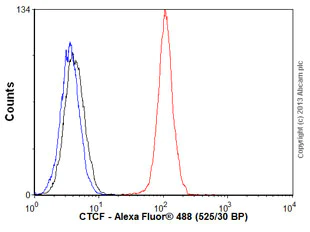

Overlay histogram showing Hela cells stained with un-purified ab128873 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab128873, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling CTCF with un-purified ab128873 at 1/250 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

Immunocytochemistry/immunofluorescence staining of 4% paraformaldehyde fixed; 0.1% triton X 100 permeabilized HeLa (human cervix adenocarcinoma) cells with purified ab128873 at dilution of 1/500. The secondary antibody used was Alexa Fluor® 488; goat anti-rabbit IgG (ab150077) at a dilution of 1/1000. Nucleus was counter-stained with DAPI (blue). ab7291, a mouse anti-tubulin antibody (1/1000) was used to stain tubulin along with ab150120 (AlexaFluor®594 goat anti-mouse secondary, 1/1000) shown in the top right hand panel. The negative controls are shown in the bottom middle and right hand panels- for negative control 1 rabbit primary antibody and anti-mouse secondary antibody (ab150120) was used. For negative control 2 mouse primary antibody (ab7291) and anti-rabbit secondary antibody (ab150077) was used.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

Immunohistochemical staining of paraffin-embedded human breast carcinoma sections labelling CTCF with purified ab128873 at dilution of 1 : 1000. The secondary antibody used was ab97051; a goat anti-rabbit IgG H&L (HRP) at dilution of 1/500. The sample was counter-stained with hematoxylin. Antigen retrieval was performed using EDTA Buffer; pH 9.0. PBS was used instead of the primary antibody as the negative control and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

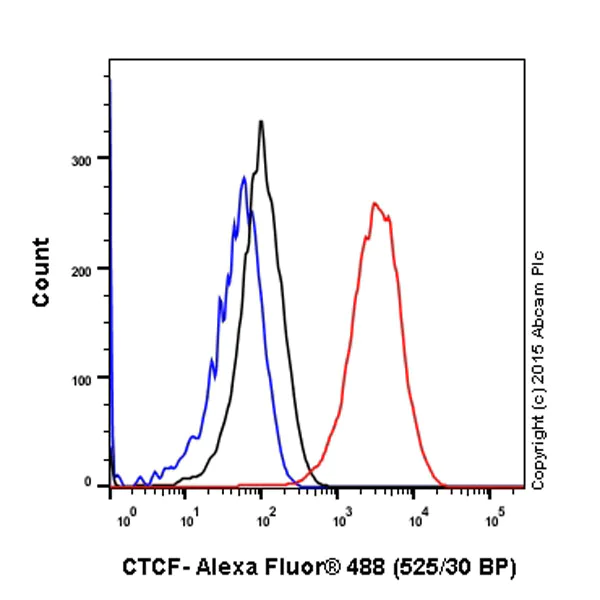

Intracellular Flow Cytometry analysis showing 4% paraformaldehyde fixed 293T (human embryonic kidney) cells labelling CTCF with purified ab128873 at dilution of 1/40 followed by the secondary antibody; Alexa Fluor^® 488 goat-anti-rabbit IgG at dilution of 1/500 (red line). A non-specific IgG antibody (rabbit monoclonal) was used as isotype control (black line). The blue line shows cells without incubation with primary antibody and secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

Immunohistochemical analysis of paraffin embedded Human colon tissue labelling CTCF with un-purified ab128873 at 1/250 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• ChIP-seq

Lab

ChIP-sequencing - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

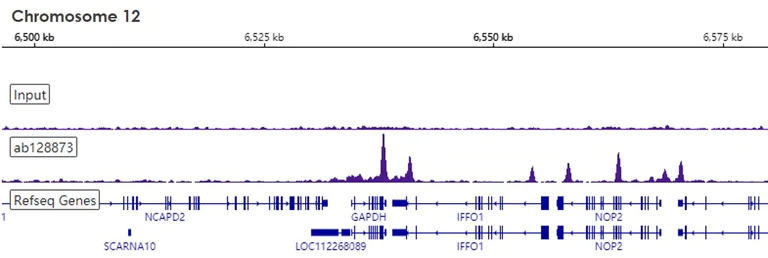

Chromatin was prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 30 μg of chromatin and 4 μg of ab128873. ChIP DNA was sequenced on the Illumina NextSeq 500 to a depth of 30 million reads. ChIP-Seq validation performed with ChIP-Ki Transcription Factors ChIP-Seq (ab270813). Additional screenshots of mapped reads can be downloaded here.

• ChIP

Unknown

ChIP - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

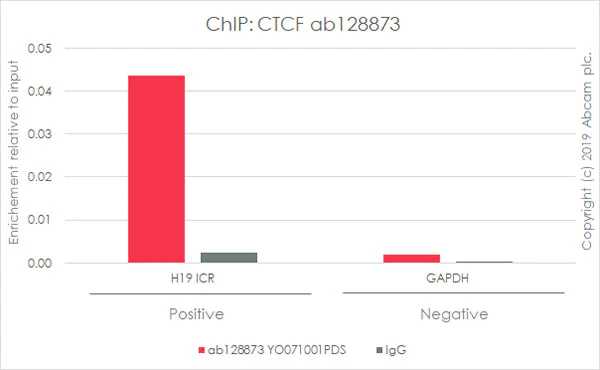

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with 1% formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 5μg of ab128873 (red), and 20μl of protein A/G sepharose beads slurry (10μl of sepharose A beads + 10μl of sepharose G beads). 5μg of rabbit normal IgG was added to the beads control (grey). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

Immunohistochemical staining of paraffin-embedded rat kidney sections labelling CTCF with purified ab128873 at dilution of 1 : 1000. The secondary antibody used was ab97051; a goat anti-rabbit IgG H&L (HRP) at dilution of 1/500. The sample was counter-stained with hematoxylin. Antigen retrieval was performed using EDTA Buffer; pH 9.0. PBS was used instead of the primary antibody as the negative control and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

Immunohistochemical staining of paraffin-embedded mouse kidney sections labelling CTCF with purified ab128873 at dilution of 1 : 1000. The secondary antibody used was ab97051; a goat anti-rabbit IgG H&L (HRP) at dilution of 1/500. The sample was counter-stained with hematoxylin. Antigen retrieval was performed using EDTA Buffer; pH 9.0. PBS was used instead of the primary antibody as the negative control and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• ChIC/CUT&RUN-seq

Supplier Data

ChIC/CUT&RUN sequencing - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

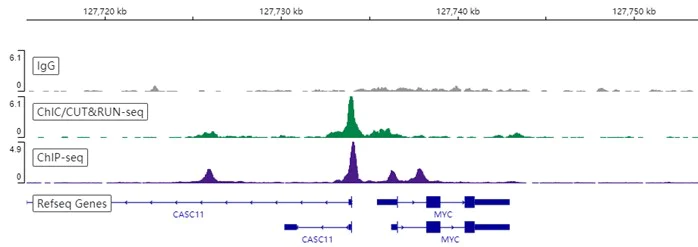

ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/mL, 2.5 x 10^5 HeLa (Human cervix adenocarcinoma epithelial cell line) cells and 2 µg of ab128873 [EPR7314(B)]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The ChIP data was conducted on chromatin prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 10^7 HeLa cells and 4 µg of ab128873. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. Additional screenshots of mapped reads can be found in the Protocol booklet in the Product Protocol section. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab128873).

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

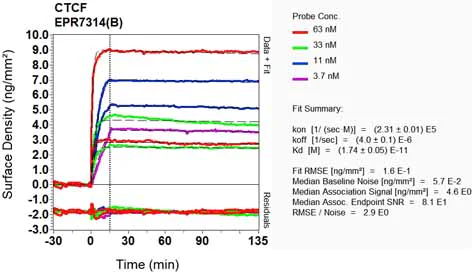

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

• CUT&Tag

Supplier Data

CUT&Tag - Anti-CTCF antibody [EPR7314(B)] - ChIP Grade - BSA and Azide free (AB240035)

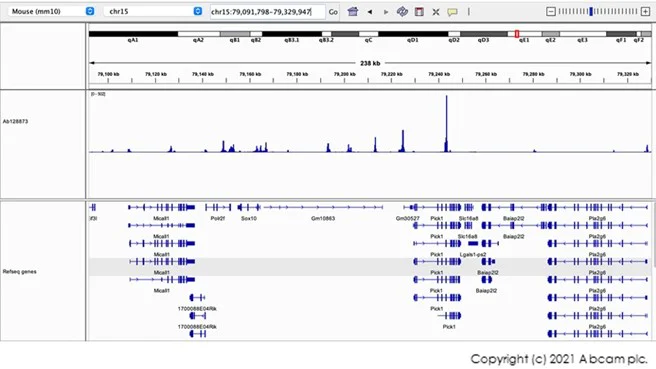

CUT&Tag-seq was performed using 200,000 Oli-neu (Oligodendrocyte progenitor) cells. Cells were permeabilized with 0.05% Digitonin and 0.01% NP-40 for 3 minutes. A 1 : 100 dilution of Recombinant Anti-CTCF antibody [EPR7314(B)] - ChIP Grade (ab128873) was used, along with a Guinea pig anti-rabbit Secondary. DNA was seg using Illumina NovaSeq S Prime to a depth of 24 million reads. This image is courtesy of Dr Marek Bartosovic, Gonçalo Castelo-Branco Group, Karolinska Institutet. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

This experiment and image is courtesy of Dr Marek Bartosovic, Gonçalo Castelo-Branco Group, Karolinska Institutet.
