Anti-Ctip1/BCL-11A antibody [14B5]

• WB

Lab

Western blot - Anti-Ctip1/BCL-11A antibody [14B5] (AB19487)

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : Empty (0 μg)
Lane 3 : BCL11A (Ctip1) knockout HAP1 whole cell lysate (20 μg)
Lane 4 : Raji whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab19487 observed at 91 kDa. Red - loading control, ab181602, observed at 37 kDa.

ab19487 was shown to specifically react with BCL11A (Ctip1) in HAP1 wild type cells. No band was observed when BCL11A (Ctip1) knockout cells were examined. Wild-type and BCL11A (Ctip1) knockout samples were subjected to SDS-PAGE. ab19487 and ab181602 (Rabbit anti GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/10,000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) secondary antibodies at 1/10,000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Ctip1/BCL-11A antibody [14B5] (ab19487)

Predicted band size: 91 kDa

false

• WB

Supplier Data

Western blot - Anti-Ctip1/BCL-11A antibody [14B5] (AB19487)

The CTIP1 / BCL-11A protein band is indicated at 92 kDa. This antibody also identified a 55 kDa protein band in Western blotting, principally in mouse fibroblasts (MEF), but this is unrelated to.

Blocking was performed in 5% milk (in PBS). The primary antibody was diluted in 1% milk (in PBS) and incubated overnight at 4°C.

All lanes:

Western blot - Anti-Ctip1/BCL-11A antibody [14B5] (ab19487)

Lane 1:

C6 Cell Line at 20 µg

Lane 2:

MEF Cell Line at 20 µg

Lane 3:

HDFn Cell LIne at 20 µg

Lane 4:

Jurkat Cell Line at 20 µg

Lane 5:

HEK293T Cell Line at 20 µg

Predicted band size: 91 kDa

true

• Flow Cyt

Unknown

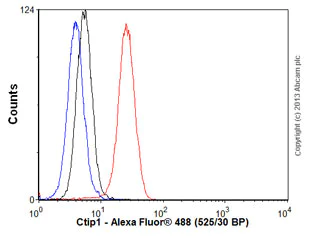

Flow Cytometry - Anti-Ctip1/BCL-11A antibody [14B5] (AB19487)

Overlay histogram showing Ramos cells stained with ab19487 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab19487, 0.1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was Alexa Fluor® 488 goat anti-mouse IgG (H+L) (ab150113) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in Ramos cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

• WB

Unknown

Western blot - Anti-Ctip1/BCL-11A antibody [14B5] (AB19487)

The 120 kDa band observed is comparable to the molecular weight seen with other commercially available antibodies to Ctip1 / BCL-11A.

All lanes:

Western blot - Anti-Ctip1/BCL-11A antibody [14B5] (ab19487) at 1 µg/mL

All lanes:

Raji (Human Burkitt's lymphoma cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/5000 dilution

Predicted band size: 91 kDa

Observed band size: 120 kDa,37 kDa,42 kDa,62 kDa

true

Exposure time: 20min
