AB313471

Anti-CX3CR1 antibody [RP23040180]

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Multiclonal CX3CR1 antibody. Suitable for ICC/IF, WB and reacts with Human samples. Immunogen corresponding to Synthetic Peptide within Human CX3CR1.

View Alternative Names

CMKBRL1, GPR13, CX3CR1, CX3C chemokine receptor 1, C-X3-C CKR-1, Beta chemokine receptor-like 1, Fractalkine receptor, G-protein coupled receptor 13, V28, CMK-BRL-1, CMK-BRL1

2 Images

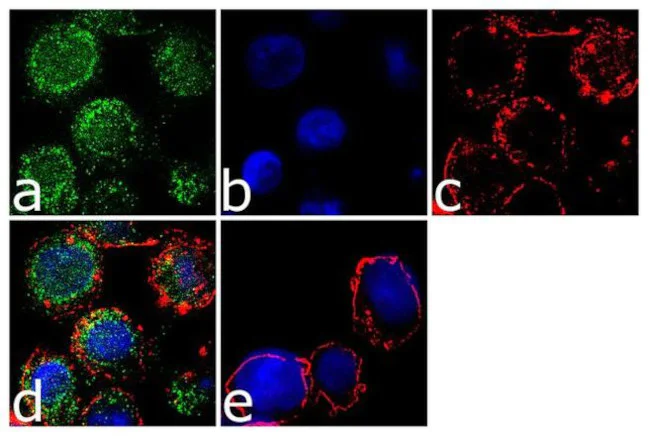

Immunocytochemistry/ Immunofluorescence - Anti-CX3CR1 Antibody [RP23040180] (AB313471)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-CX3CR1 Antibody [RP23040180] (AB313471)

For immunofluorescence analysis, THP-1 cells were fixed and permeabilized for detection of endogenous CX3CR1 using ab313471 (2 ug/ml) and labeled with Goat anti-Rabbit IgG (H+L) Secondary Antibody, Alexa Fluor® 488 conjugate ( 1 : 2000). Panel a) shows representative cells that were stained for detection and localization of CX3CR1 protein (green), Panel b) is stained for nuclei (blue) using with DAPI . Panel c) represents cytoskeletal F-actin staining using Alexa Fluor® 555 Rhodamine Phalloidin ( 1 : 300). Panel d) is a composite image of Panels a, b and c clearly demonstrating localization of CX3CR1 in the membrane. Panel e) represents control cells with no primary antibody to assess background. The images were captured at 60X magnification.

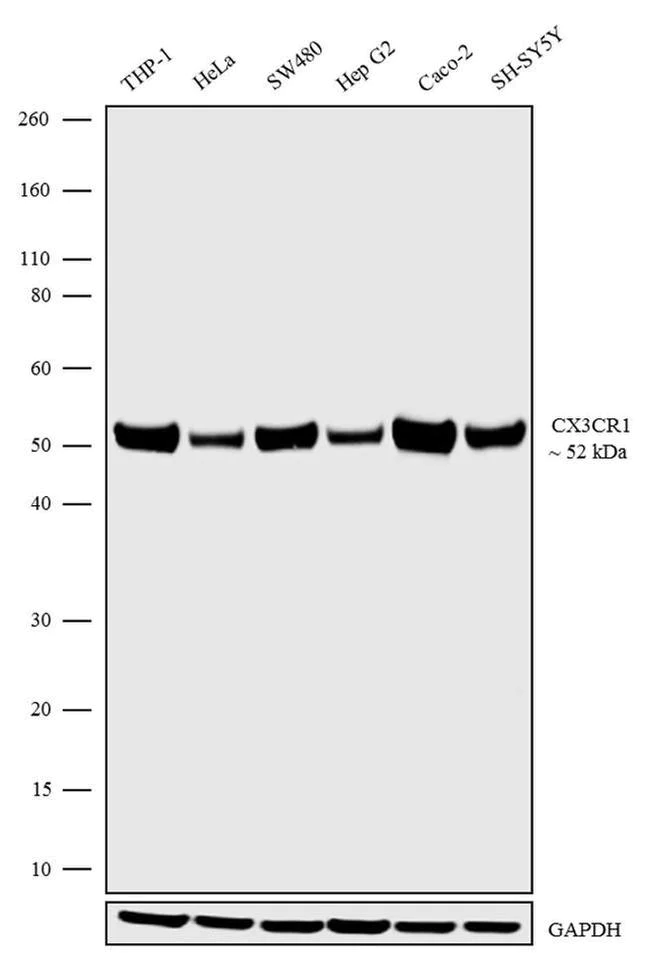

Western blot - Anti-CX3CR1 Antibody [RP23040180] (AB313471)
  • WB

Supplier Data

Western blot - Anti-CX3CR1 Antibody [RP23040180] (AB313471)

A 52 kDa band corresponding to CX3CR1 was observed across the cell lines tested. Known quantity of protein samples were electrophoresed using 4-12% Bis-Tris gel. Resolved proteins were then transferred onto a nitrocellulose membrane. The membrane was probed with the relevant primary and secondary Antibody following blocking with 5% skimmed milk.

All lanes:

Western blot - Anti-CX3CR1 Antibody [RP23040180] (ab313471) at 2 µg/mL

Lane 1:

Membrane enriched cell extracts of THP-1 at 30 µg

Lane 2:

Membrane enriched cell extracts of HeLa at 30 µg

Lane 3:

Membrane enriched cell extracts of SW480 at 30 µg

Lane 4:

Membrane enriched cell extracts of Hep G2 at 30 µg

Lane 5:

Membrane enriched cell extracts of Caco-2 at 30 µg

Lane 6:

Membrane enriched cell extracts of SH-SY 5Y at 30 µg

Secondary

All lanes:

Goat anti-Rabbit IgG (H+L) Secondary Antibody, HRP conjugate at 1/2500 dilution

true

Key facts

Host species

Rabbit

Clonality

Multiclonal

Clone number

RP23040180

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

WB, ICC/IF

applications

Immunogen

Synthetic Peptide within Human CX3CR1.

P49238

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "2 µg/mL", "ICCIF-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1-2 µg/mL", "WB-species-notes": "<p></p>" } } }

Product details

What are recombinant multiclonals?
Recombinant multiclonals are a mixture of recombinant antibodies co-expressed from a library of heavy and light chains. They offer several advantages including:

  • - The sensitivity of polyclonal antibodies by recognising multiple epitopes
  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

View our range of recombinant multiclonal antibodies.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 Preservative: 0.09% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

CX3CR1 also known as fractalkine receptor is a seven-transmembrane G protein-coupled receptor. It has a molecular weight of about 40 kDa. This receptor is expressed in various tissues particularly on immune cells like monocytes natural killer cells T cells and microglia. CX3CR1 binds to its ligand CX3CL1 or fractalkine which is a chemokine involved in directing cell movement. The receptor-ligand interaction is critical for the adhesion and migration of leukocytes to inflammatory sites.
Biological function summary

CX3CR1 plays a significant role in immune regulation and cellular migration. It is not part of a larger protein complex but interacts directly with monocyte and microglia cells influencing their activity. CX3CR1 is recognized as a marker for microglia in flow cytometry applications assisting in the identification of these brain-resident immune cells. The receptor is frequently studied using monoclonal antibodies like anti-CX3CR1 and is subject to inhibition by CX3CR1 antagonists such as 8e10 affecting its function in immune responses.

Pathways

CX3CR1 involves itself heavily in the chemokine signaling pathway and the inflammatory response pathway. Its interaction with CX3CL1 influences the PI3K-Akt signaling pathway modulating cell survival and proliferation. The receptor works in conjunction with CCR2 in monocyte navigation impacting the inflammatory cascade during immune response. Their coordinated action is important for cellular trafficking to sites requiring immune intervention.

CX3CR1 has associations with neurodegenerative diseases such as Alzheimer's disease as well as with atherosclerosis. Changes in its expression and function can exacerbate these conditions. In Alzheimer's disease microglial CX3CR1 may mediate neuroinflammatory processes affecting plaque buildup. In atherosclerosis the receptor is involved in monocyte recruitment to plaques influenced by the related protein fractalkine. Understanding these relationships provides insights into potential therapeutic targets for modulating disease progression.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Receptor for the C-X3-C chemokine fractalkine (CX3CL1) present on many early leukocyte cells; CX3CR1-CX3CL1 signaling exerts distinct functions in different tissue compartments, such as immune response, inflammation, cell adhesion and chemotaxis (PubMed : 12055230, PubMed : 23125415, PubMed : 9390561, PubMed : 9782118). CX3CR1-CX3CL1 signaling mediates cell migratory functions (By similarity). Responsible for the recruitment of natural killer (NK) cells to inflamed tissues (By similarity). Acts as a regulator of inflammation process leading to atherogenesis by mediating macrophage and monocyte recruitment to inflamed atherosclerotic plaques, promoting cell survival (By similarity). Involved in airway inflammation by promoting interleukin 2-producing T helper (Th2) cell survival in inflamed lung (By similarity). Involved in the migration of circulating monocytes to non-inflamed tissues, where they differentiate into macrophages and dendritic cells (By similarity). Acts as a negative regulator of angiogenesis, probably by promoting macrophage chemotaxis (PubMed : 14581400, PubMed : 18971423). Plays a key role in brain microglia by regulating inflammatory response in the central nervous system (CNS) and regulating synapse maturation (By similarity). Required to restrain the microglial inflammatory response in the CNS and the resulting parenchymal damage in response to pathological stimuli (By similarity). Involved in brain development by participating in synaptic pruning, a natural process during which brain microglia eliminates extra synapses during postnatal development (By similarity). Synaptic pruning by microglia is required to promote the maturation of circuit connectivity during brain development (By similarity). Acts as an important regulator of the gut microbiota by controlling immunity to intestinal bacteria and fungi (By similarity). Expressed in lamina propria dendritic cells in the small intestine, which form transepithelial dendrites capable of taking up bacteria in order to provide defense against pathogenic bacteria (By similarity). Required to initiate innate and adaptive immune responses against dissemination of commensal fungi (mycobiota) component of the gut : expressed in mononuclear phagocytes (MNPs) and acts by promoting induction of antifungal IgG antibodies response to confer protection against disseminated C.albicans or C.auris infection (PubMed : 29326275). Also acts as a receptor for C-C motif chemokine CCL26, inducing cell chemotaxis (PubMed : 20974991).. Isoform 1. (Microbial infection) Acts as a coreceptor with CD4 for HIV-1 virus envelope protein.. Isoform 2. (Microbial infection) Acts as a coreceptor with CD4 for HIV-1 virus envelope protein (PubMed : 14607932). May have more potent HIV-1 coreceptothr activity than isoform 1 (PubMed : 14607932).. Isoform 3. (Microbial infection) Acts as a coreceptor with CD4 for HIV-1 virus envelope protein (PubMed : 14607932). May have more potent HIV-1 coreceptor activity than isoform 1 (PubMed : 14607932).
See full target information CX3CR1

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
