Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free

6 product images

•

  This experiment was carried out by an anonymous collaborator

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free (ab271934)

  IHC image of CXCR4 staining on retina of E14 mouse embryo formalin fixed paraffin embedded tissue section. The section was pre-treated using heat mediated antigen retrieval with 10 mM sodium citrate buffer (pH6) for 20 mins in a microwave at 600W, and incubated overnight at + 4^oC with Anti-CXCR4 antibody [EPUMBR3] ab181020 at 5 ugml. Staining of primary antibody was detected using the appropriate biotinylated secondary antibodies followed by incubation with avidin-biotinylated peroxidase solution. DAB was used as the chromogen (15 min). The section was then counterstained with haematoxylin. As a negative control (inset), an identical assay was performed on retina of E14 knockout mouse (CXCR4 -/-) embryo.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CXCR4 antibody [EPUMBR3] ab181020).

•

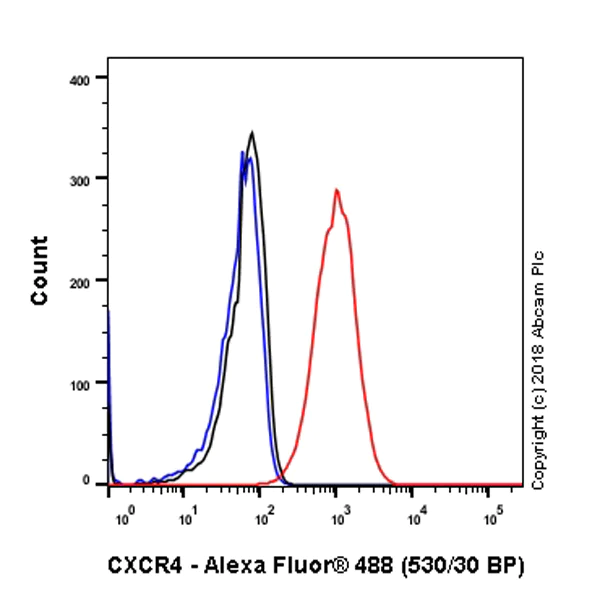

  Flow Cytometry (Intracellular) - Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free (ab271934)

  Intracellular Flow Cytometry analysis of Jurkat (human T cell leukemia T lymphocyte) cells labeling CXCR4 with purified Anti-CXCR4 antibody [EPUMBR3] ab181020 at 1/200 dilution (10.23μg/ml) - Red. Cells were fixed with 4% paraformaldehyde . A Goat anti rabbit IgG (Alexa Fluor 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) - Black. Unlabeled control - Blue. Untreated cells - Green.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CXCR4 antibody [EPUMBR3] ab181020).

•

  Immunocytochemistry/ Immunofluorescence - Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free (ab271934)

  Immunocytochemistry/Immunofluorescence analysis of Ramos (Human Burkitt's lymphoma cell line) labeling CXCR4 with purified Anti-CXCR4 antibody [EPUMBR3] ab181020 at 1/500 dilution. Cells were fixed with 4% PFA and permeabilized with 0.1% tritonX-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/1000 was used as the secondary antibody. Nuclei were counterstained with DAPI. PBS was used instead of the primary antibody as the negative control.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CXCR4 antibody [EPUMBR3] ab181020).

•

  Immunocytochemistry/ Immunofluorescence - Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free (ab271934)

  Anti-CXCR4 antibody [EPUMBR3] ab181020 stained Jurkat cells. The cells were 100% methanol fixed for 5 minutes at -20°C and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1hour at room temperature to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (Anti-CXCR4 antibody [EPUMBR3] ab181020 at 5µg/ml) overnight at +4°C. The secondary antibody (pseudo-colored green) was Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) used at a 1/1000 dilution for 1hour at room temperature. Alexa Fluor® 594 WGA was used to label plasma membranes (pseudo-colored red) at a 1/200 dilution for 1hour at room temperature. DAPI was used to stain the cell nuclei (pseudo-colored blue) at a concentration of 1.43µM for 1hour at room temperature.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CXCR4 antibody [EPUMBR3] ab181020).

•

  This experiment was carried out by an anonymous collaborator

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free (ab271934)

  IHC image of CXCR4 staining on Brain of E14 mouse embryo formalin fixed paraffin embedded tissue section. The section was pre-treated using heat mediated antigen retrieval with 10 mM sodium citrate buffer (pH6) for 20 mins in a microwave at 600W, and incubated overnight at + 4^oC with Anti-CXCR4 antibody [EPUMBR3] ab181020 at 1/500 dilution. Staining of primary antibody was detected using the appropriate biotinylated secondary antibodies followed by incubation with avidin-biotinylated peroxidase solution. DAB was used as the chromogen (15 min). The section was then counterstained with haematoxylin. As a negative control (inset), an identical assay was performed on Brain of E14 knockout mouse (CXCR4 -/-) embryo.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CXCR4 antibody [EPUMBR3] ab181020).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CXCR4 antibody [EPUMBR3] - BSA and Azide free (ab271934)

  Immunohistochemical analysis of paraffin embedded Human small cell lung carcinoma tissue labeling CXCR4 using Anti-CXCR4 antibody [EPUMBR3] ab181020.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-CXCR4 antibody [EPUMBR3] ab181020).
