Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free

• Flow Cyt

Lab

Flow Cytometry - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

This data was developed using the same antibody clone in a different buffer formulation (ab254415).

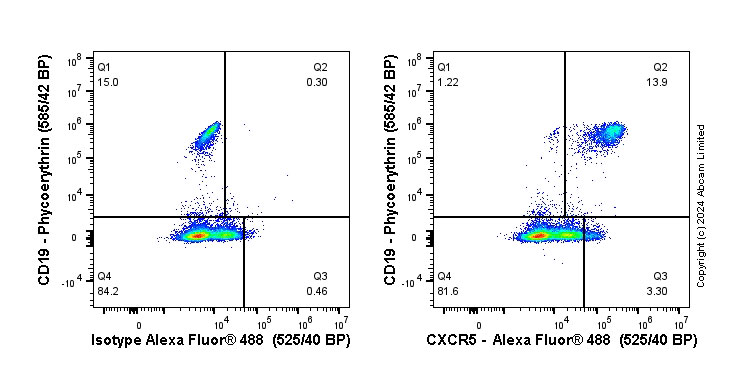

Flow cytometry staining of human peripheral blood mononuclear cells (PBMCs) with ab254415 (right) or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (left). PBMCs were incubated for 30 mins on ice in 1x PBS containing 10 µg/ml human IgG and 10 % normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab254415 or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (1x 10⁶ in 100 µl at 0.2 μg/ml (1/11500 dilution)) for 30 mins on ice. The cells were simultaneously stained with CD19.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed was incubated at 1/4000 dilution for 30 mins on ice

Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on live cells.

• Flow Cyt

Unknown

Flow Cytometry - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

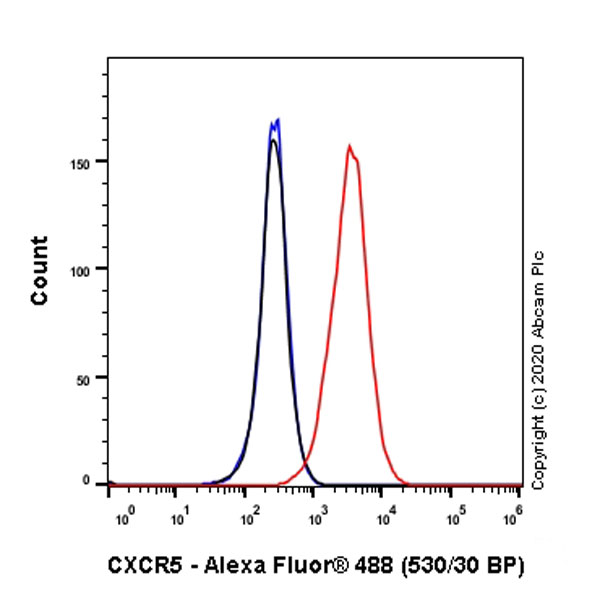

Flow cytometric analysis of Raji (Human Burkitt's lymphoma B lymphocyte) cells labelling CXCR5 with ab254415 at 1/500 dilution (0.1μg) (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody. Gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254415).

• Flow Cyt

Lab

Flow Cytometry - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

This data was developed using the same antibody clone in a different buffer formulation (ab254415)

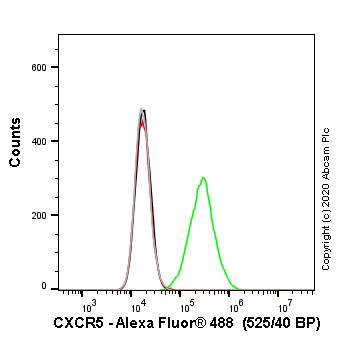

Flow cytometry overlay histogram showing wild-type Raji (green line) and CXCR5 knockout Raji cells (ab273380) stained with ab254415 (red line). The cells were incubated in 1x PBS containing 10μg/ml human IgG and 10% normal goat serumto block FC receptors and non-specific protein-protein interaction followed by the antibody (ab254415) (1x10⁶ in 100μl at 0.2 μg/ml) for 30 min at 4°C.

The secondary antibody Goat anti-rabbit IgG H&L (Alexa Fluor^® 488 pre-adsorbed) (ab150081) was used at 1/2000 for 30 min at 4°C.

Isotype control antibody was Rabbit IgG (monoclonal) (ab172730) used at the same concentration and conditions as the primary antibody (wild-type Raji - black line; CXCR5 knockout Raji - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

This data was developed using the same antibody clone in a different buffer formulation (ab254415). ab254415 staining CXCR5 in Daudi cells (top panel, positive control) and Jurkat cells (bottom panel, negative control). The cells were fixed with 4% paraformaldehyde (10 min) then permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab254415 at 5μg/ml concentration and ab7291 (Mouse monoclonal to alpha Tubulin) at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat secondary antibody to rabbit IgG (Alexa Fluor^® 488) (ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to mouse IgG (Alexa Fluor^® 594) (ab150120) at 2 μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI.
Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

Immunohistochemical analysis of paraffin-embedded human diffuse large B-cell lymphoma tissue labeling CXCR5 with ab254415 at 1/5000 dilution followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human diffuse large B-cell lymphoma. The section was incubated with ab254415 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254415).

• Flow Cyt

Unknown

Flow Cytometry - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

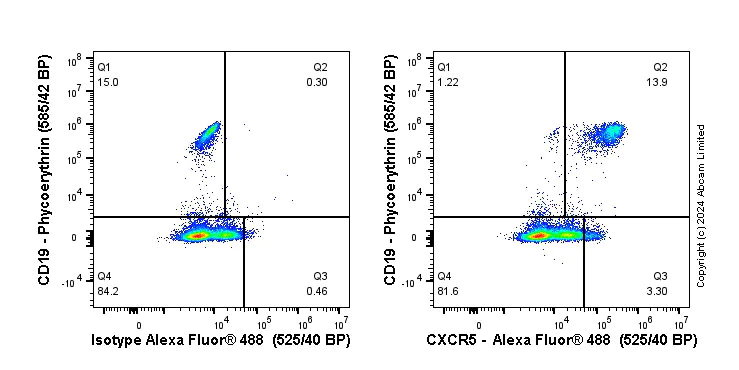

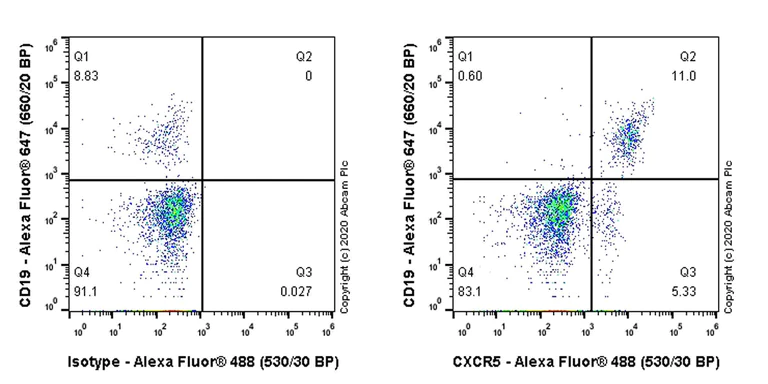

Flow cytometric analysis of human peripheral blood mononuclear cell (PBMC) cells labelling CXCR5 with ab254415 at 1/500 dilution (0.1μg) (Right) compared with a Rabbit monoclonal IgG (ab172730) isotype control (Left). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary at a 1/2000 dilution. Cells were stained with rabbit IgG (Left) or ab254415 (Right), then stained with anti-CD19 conjugated to Alexa Fluor^® 647.

Gated on viable cells.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254415).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling CXCR5 with ab254415 at 1/5000 dilution followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human tonsil (PMID : 12393412). The section was incubated with ab254415 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254415).

• WB

Lab

Western blot - Anti-CXCR5 antibody [EPR23463-30] - BSA and Azide free (AB272936)

This data was developed using the same antibody clone in a different buffer formulation (ab254415).

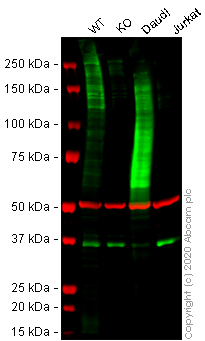

Lanes 1 - 4 : Merged signal (red and green). Green - ab254415 observed at 60 kDa. Red - loading control ab7291 (Mouse anti-Alpha Tubulin [DM1A]) observed at 55 kDa.

ab254415 was shown to react with CXCR5 in Raji wild-type cells in Western blot with loss of signal observed in CXCR5 knockout sample. Wild-type and CXCR5 knockout Raji cell lysates were subjected to SDS-PAGE. Membranes were blocked in fluorescent western blot (TBS-based) blocking solution before incubation with ab254415 and ab7291 (Mouse anti-Alpha Tubulin [DM1A]) overnight at 4 °C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 h at room temperature before imaging.

All lanes:

Western blot - Anti-CXCR5 antibody [EPR23463-30] (<a href='/en-us/products/primary-antibodies/cxcr5-antibody-epr23463-30-ab254415'>ab254415</a>) at 1/1000 dilution

Lane 1:

Wild-type Raji cell lysate at 30 µg

Lane 2:

CXCR5 knockout Raji cell lysate at 30 µg

Lane 2:

Western blot - Human CXCR5 knockout Raji cell line (<a href='/en-us/products/cell-lines/human-cxcr5-knockout-raji-cell-line-ab273380'>ab273380</a>)

Lane 3:

Daudi cell lysate at 30 µg

Lane 4:

Jurkat cell lysate at 30 µg

Predicted band size: 42 kDa
