Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free

• IHC-P

Lab

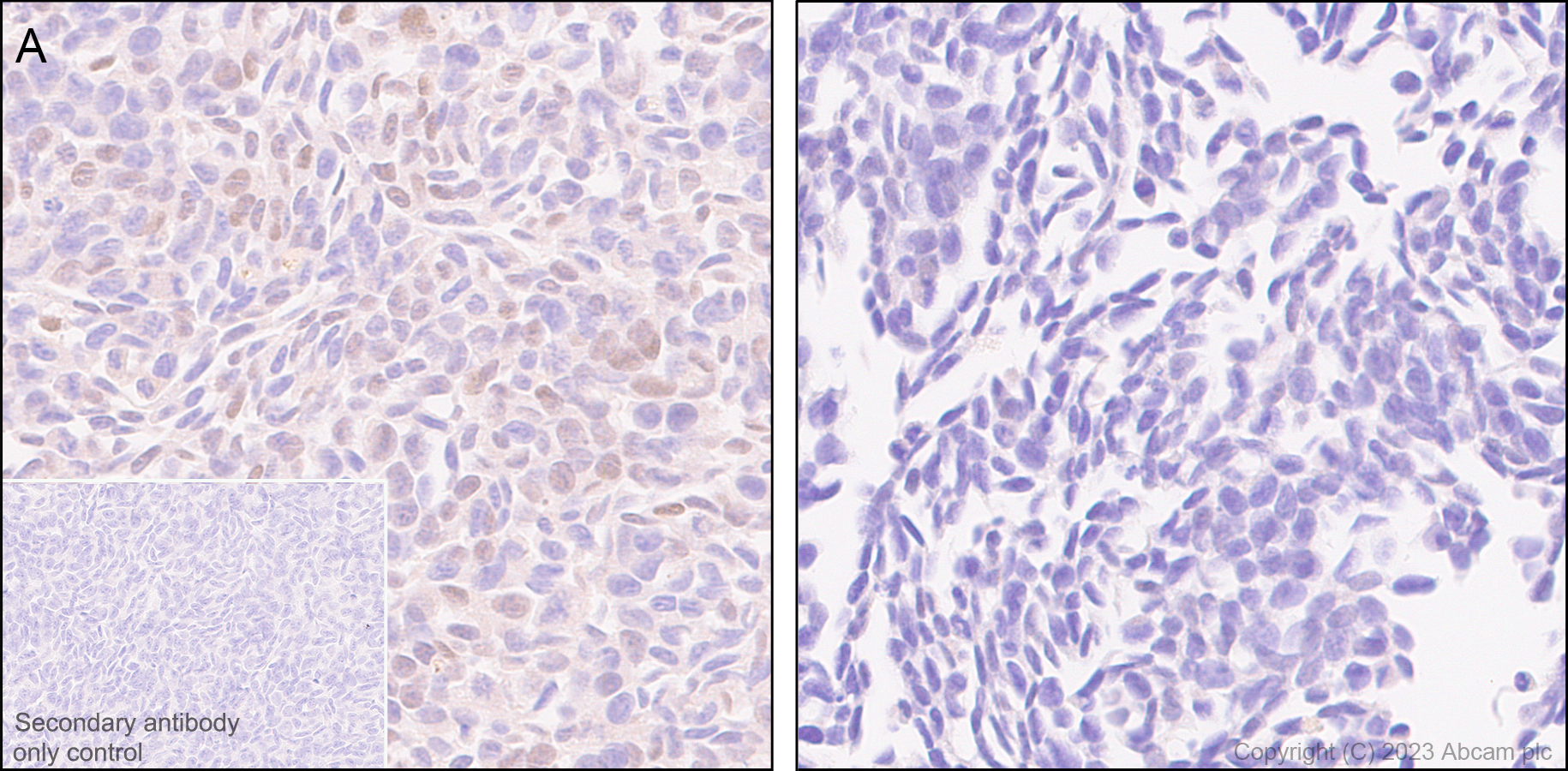

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

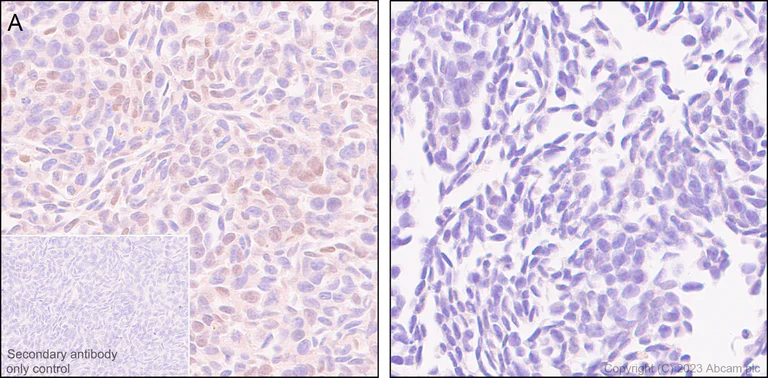

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911). Immunohistochemical analysis of paraffin-embedded (A) Wild-type HAP1 (human chronic myelogenous leukemia near-haploid cell) cell pellets (B)CCNE1 KO HAP1 cell pellets tissue labeling Cyclin E1 with ab33911 at 1/2000 (0.12 μg/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on (A) Wild-type HAP1 cell pellets, no staining on (B) CCNE1 KO HAP1 cell pellets.The section was incubated with ab33911 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

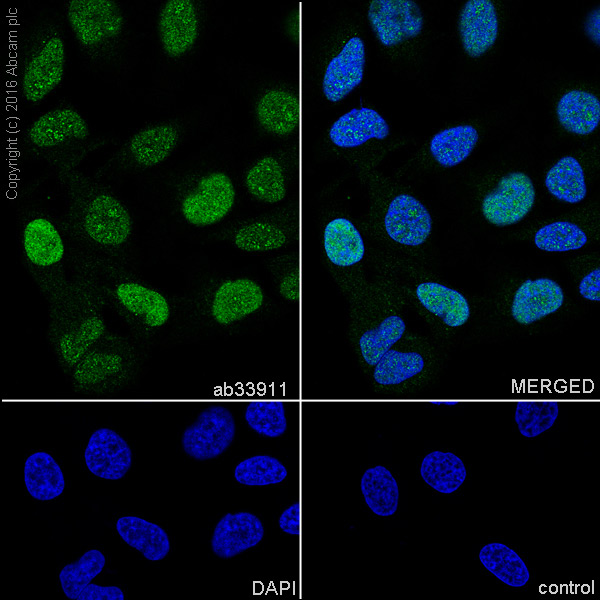

Immunocytochemistry/Immunofluorescence analysis of HeLa (human cervix adenocarcinoma) cells labeling Cyclin E1 (green) with purified ab33911 at 1/500. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. Nuclei were counterstained with DAPI (blue).

Secondary Only Control : PBS was used instead of the primary antibody as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

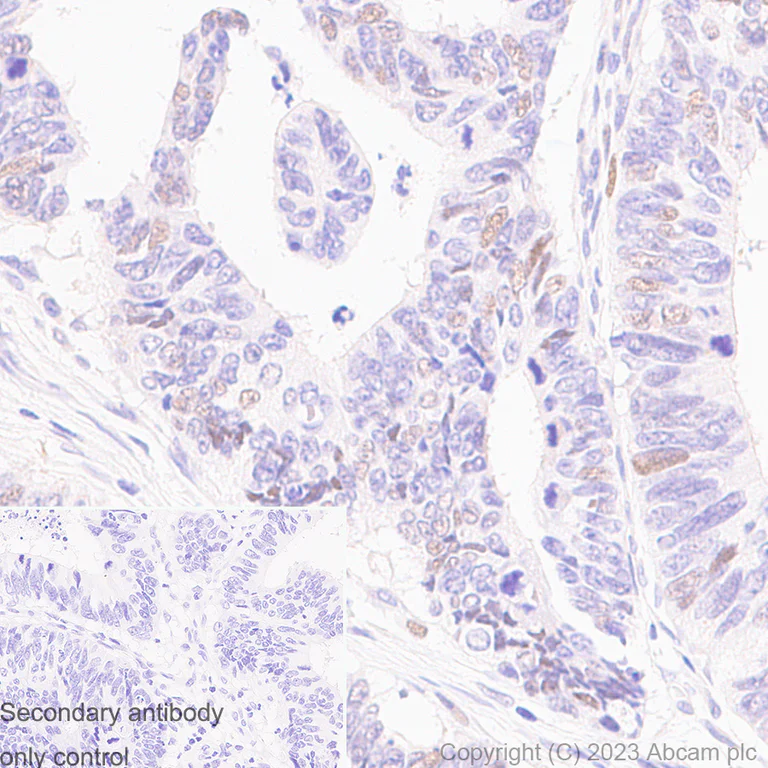

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911). Immunohistochemical analysis of paraffin-embedded Human colon carcinoma tissue labeling Cyclin E1 with ab33911 at 1/2000 (0.12 μg/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on the human colon carcinoma. The section was incubated with ab33911 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

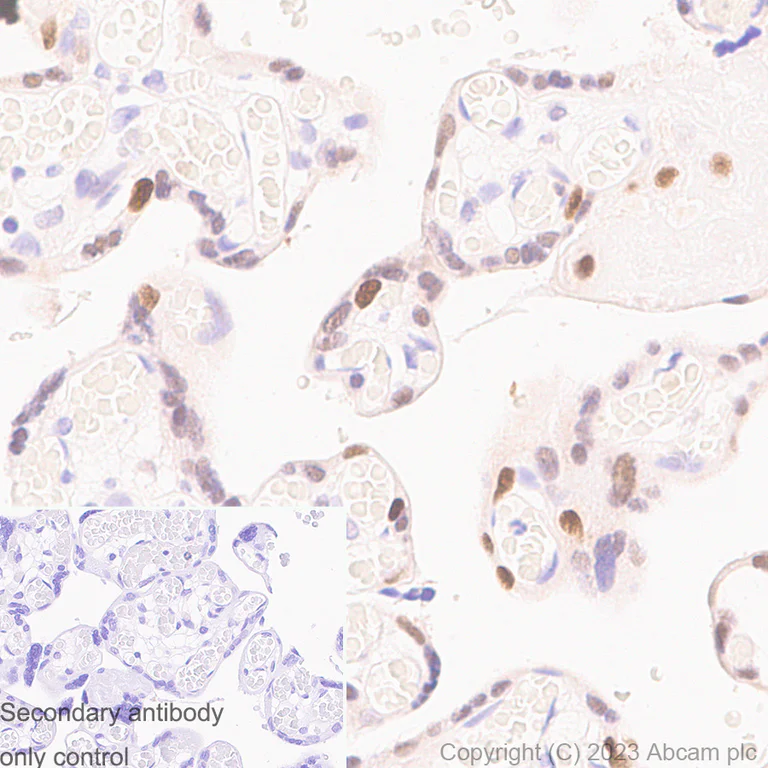

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911). Immunohistochemical analysis of paraffin-embedded Human placenta tissue labeling Cyclin E1 with ab33911 at 1/2000 (0.12 μg/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on the human placenta. The section was incubated with ab33911 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

• ICC/IF

AbReview42932****

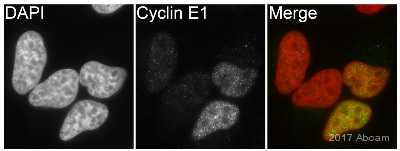

Immunocytochemistry/ Immunofluorescence - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

ab33911 staining Cyclin E1 in HeLa cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde, permeabilized with 0.2% Triton X-100 and blocked with 2% BSA for 45 minutes at room temperature. Samples were incubated with primary antibody (1/300 in PBS + 2% BSA) for 14 hours at 4°C. An Alexa Fluor^® 488-conjugated goat anti-rabbit IgG polyclonal (1/500) was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911) (unpurified).

This image is courtesy of an anonymous Abreview.

• ICC/IF

AbReview57481****

Immunocytochemistry/ Immunofluorescence - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

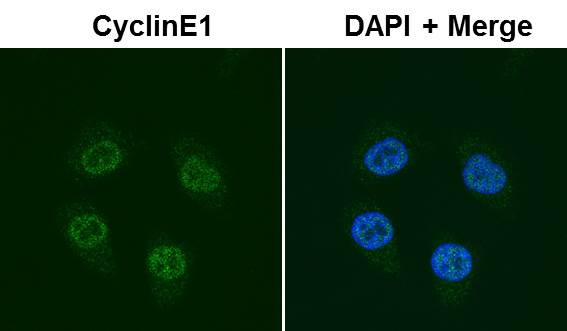

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labeling Cyclin E1 with ab33911 at 1/500 dilution. Cells were fixed in paraformaldehyde and permeabilized with 0.5% Triton X-100 in PBS. Staining with ab33911 at 1/500 was carried out for 1 hour at 22°C in PBS buffer. ab150081, a Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed secondary antibody, was used at 1/200 dilution. DAPI was used to counterstain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911) (unpurified).

This image is courtesy of an Abreview submitted by Kirk McManus.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

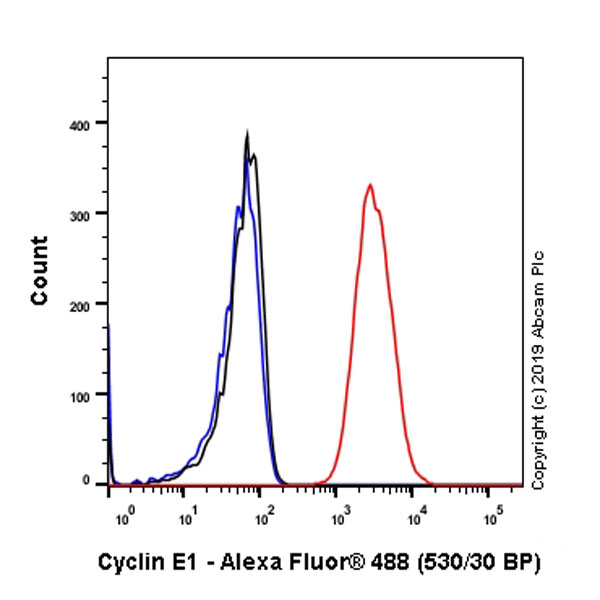

Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling Cyclin E1 with Purified ab33911 at 1/30 dilution (10 μg/mL) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue). This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

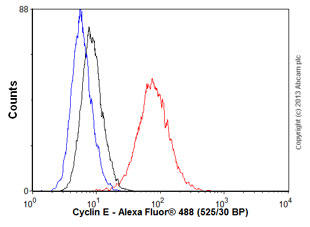

Overlay histogram showing MCF7 cells stained with ab33911 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab33911, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in MCF7 cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911) (unpurified).

• IP

Unknown

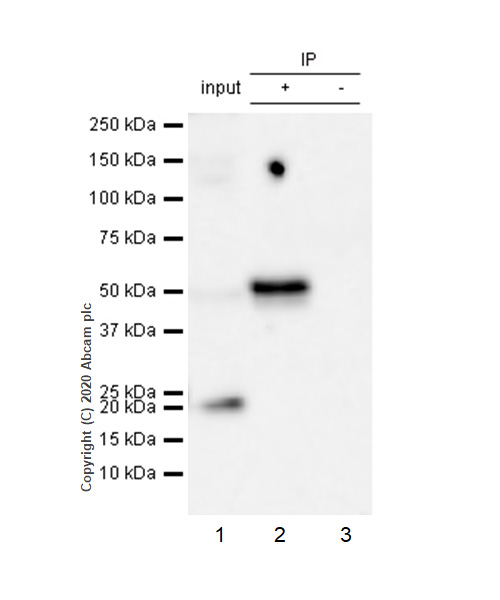

Immunoprecipitation - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

Purified ab33911 at 1/30 dilution (2ug) immunoprecipitating Cyclin E1 in HeLa whole cell lysate.
Lane 1 (input) : HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate (10μg)
Lane 2 (+) : ab33911 + HeLa whole cell lysate.
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab33911 in HeLa whole cell lysate.
VeriBlot for IP Detection Reagent (HRP) (ab131366) (1/1000) was used for Western blotting.
Blocking Buffer and concentration : 5% NFDM/TBST.
Diluting buffer and concentration : 5% NFDM/TBST.
Observed band size : 50 kDa
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911).

All lanes:

Immunoprecipitation - Anti-Cyclin E1 antibody [EP435E] (<a href='/en-us/products/primary-antibodies/cyclin-e1-antibody-ep435e-ab33911'>ab33911</a>)

Predicted band size: 47 kDa

false

• WB

Lab

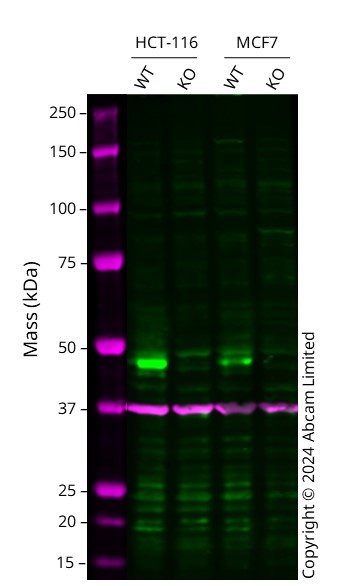

Western blot - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

This data was developed using the same antibody clone in a different buffer formulation (ab33911).

Western blot : Anti-CCNE1 antibody [EPR26497-64] (ab33911) staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab33911 was shown to bind specifically to CCNE1. A band was observed at 45 kDa in wild-type HCT 116 cell lysates with no signal observed at this size in CCNE1 knockout cell line. To generate this image, wild-type and CCNE1 knockout HCT 116 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

All lanes:

Western blot - Anti-Cyclin E1 antibody [EP435E] (<a href='/en-us/products/primary-antibodies/cyclin-e1-antibody-ep435e-ab33911'>ab33911</a>) at 1/1000 dilution

Lane 1:

Wild-type HCT 116 cell lysate at 20 µg

Lane 2:

CCNE1 knockout HCT 116 cell lysate at 20 µg

Lane 3:

Wild-type MCF7 ab288560 cell lysate at 20 µg

Lane 4:

CCNE1 knockout MCF7 <a href='/en-us/products/cell-lines/human-ccne1-knockout-mcf7-cell-line-ab286303'>ab286303</a> cell lysate at 20 µg

Secondary

All lanes:

Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Predicted band size: 47 kDa

Observed band size: 45 kDa

false

• WB

Lab

Western blot - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

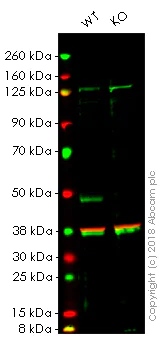

Lanes 1 - 2 : Merged signal (red and green). Green - ab33911 observed at 47 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab33911 was shown to recognize CCNE1 in wild-type HAP1 cells as signal was lost at the expected MW in CCNE1 (Cyclin E1) knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and CCNE1 (Cyclin E1) knockout samples were subjected to SDS-PAGE. ab33911 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911) (unpurified).

All lanes:

Western blot - Anti-Cyclin E1 antibody [EP435E] (<a href='/en-us/products/primary-antibodies/cyclin-e1-antibody-ep435e-ab33911'>ab33911</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 40 µg

Lane 2:

CCNE1 (Cyclin E1) knockout HAP1 whole cell lysate at 40 µg

Predicted band size: 47 kDa

false

• WB

Unknown

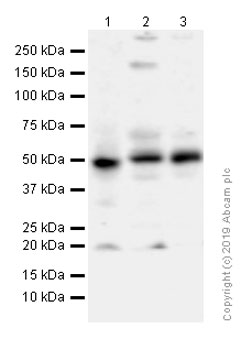

Western blot - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

Cyclin E1 is highly expressed in testis and placenta which is described in PMID : 9840943.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911).

All lanes:

Western blot - Anti-Cyclin E1 antibody [EP435E] (<a href='/en-us/products/primary-antibodies/cyclin-e1-antibody-ep435e-ab33911'>ab33911</a>) at 1/1000 dilution

Lane 1:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 20 µg

Lane 2:

Human testis lysates at 20 µg

Lane 3:

Human placenta lysates at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Predicted band size: 47 kDa

Observed band size: 50 kDa

false

• WB

Lab

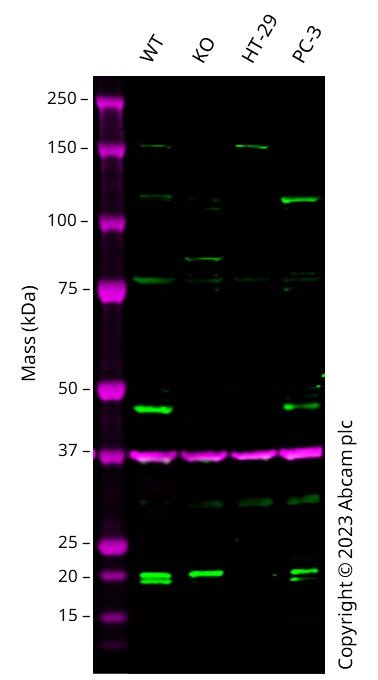

Western blot - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab33911).

All lanes:

Western blot - Anti-Cyclin E1 antibody [EP435E] (<a href='/en-us/products/primary-antibodies/cyclin-e1-antibody-ep435e-ab33911'>ab33911</a>) at 1/1000 dilution

Lane 1:

Wild-type MCF7 cell lysate at 20 µg

Lane 2:

CCNE1 knockout MCF7 cell lysate at 20 µg

Lane 3:

HT-29 cell lysate at 20 µg

Lane 4:

PC-3 cell lysate at 20 µg

Observed band size: 47 kDa

true

• WB

Lab

Western blot - Anti-Cyclin E1 antibody [EP435E] - BSA and Azide free (AB208696)

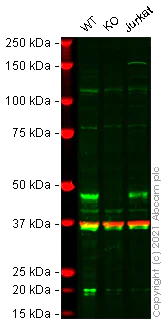

False colour image of Western blot : Anti-Cyclin E1 antibody [EP435E] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab33911 was shown to bind specifically to Cyclin E1. A band was observed at 47 kDa in wild-type HAP1 cell lysates with no signal observed at this size in CCNE1 knockout cell line. To generate this image, wild-type and CCNE1 knockout HAP1 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) at 1/20000 dilution.

All lanes:

Western blot - Anti-Cyclin E1 antibody [EP435E] (<a href='/en-us/products/primary-antibodies/cyclin-e1-antibody-ep435e-ab33911'>ab33911</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 cell lysate at 20 µg

Lane 2:

CCNE1 knockout HAP1 cell lysate at 20 µg

Lane 3:

Jurkat cell lysate at 20 µg

Predicted band size: 47 kDa

Observed band size: 47 kDa

false
