Anti-Cytokeratin 13 antibody [AE8] - BSA and Azide free

5 product images

•

  Western blot - Anti-Cytokeratin 13 antibody [AE8] - BSA and Azide free (ab269574)

  This image was produced using the same antibody clone but in a different formulation Anti-Cytokeratin 13 antibody [AE8] ab16112, PBS and sodium azide.

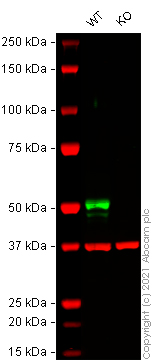

  False colour image of Western blot: Anti-Cytokeratin 13 antibody [AE8] staining at 1 μg/ml, shown in green; Rabbit Anti-GAPDH antibody [EPR16891] (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-Cytokeratin 13 antibody [AE8] ab16112 was shown to bind specifically to Cytokeratin 13. A band was observed at 51 kDa in wild-type A431 cell lysates with no signal observed at this size in Krt13 knockout cell line Human KRT13 knockout A-431 cell line ab269483 (knockout cell lysate Human KRT13 knockout A-431 cell lysate ab269647). To generate this image, wild-type and Krt13 knockout A431 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777) at 1/20000 dilution.

  All lanes: Western blot - Anti-Cytokeratin 13 antibody [AE8] (Anti-Cytokeratin 13 antibody [AE8] ab16112) at 1 µg/mL

  Lane 1: Wild-type A431 cell lysate at 20 µg

  Lane 2: KRT13 knockout A431 cell lysate at 20 µg

  Lane 2: Western blot - Human KRT13 knockout A-431 cell line (Human KRT13 knockout A-431 cell line ab269483)

  Performed under reducing conditions.

  Predicted band size: 50 kDa

  Observed band size: 51 kDa

•

  Western blot - Anti-Cytokeratin 13 antibody [AE8] - BSA and Azide free (ab269574)

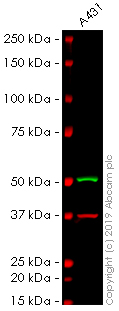

  This blot was produced using a 4-12% Bis-tris under the MOPS buffer system. The gel was run at 200V for 55 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was blocked for an hour using 3% milk before Anti-Cytokeratin 13 antibody [AE8] ab16112 and Anti-GAPDH antibody [EPR16891] - Loading Control ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at a 1ug/ml concentration and 1/20000 dilution respectively. Antibody binding was detected using Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preadsorbed (Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777) secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.


  This image was produced using the same antibody clone but in a different formulation Anti-Cytokeratin 13 antibody [AE8] ab16112, PBS and sodium azide.

  All lanes: Western blot - Anti-Cytokeratin 13 antibody [AE8] (Anti-Cytokeratin 13 antibody [AE8] ab16112) at 1 µg/mL

  All lanes: A431 whole cell lysate at 20 µg

  Performed under reducing conditions.

  Predicted band size: 50 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Cytokeratin 13 antibody [AE8] - BSA and Azide free (ab269574)

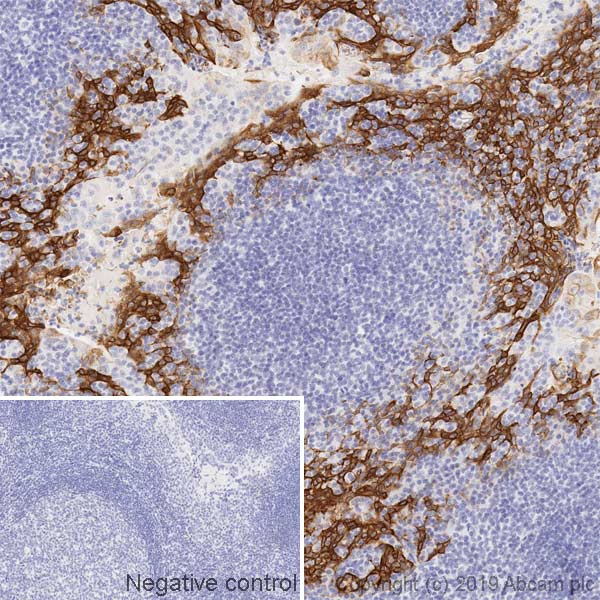

  IHC image of Cytokeratin 13 staining in a section of formalin-fixed paraffin-embedded normal human tonsil* performed on a Leica BOND^TM system using the standard protocol F.


  The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6, epitope retrieval solution 1) for 20 mins. The section was then incubated with Anti-Cytokeratin 13 antibody [AE8] ab16112, 0.05 μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with hematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

  This image was produced using the same antibody clone but in a different formulation Anti-Cytokeratin 13 antibody [AE8] ab16112, PBS and sodium azide.

•

  Immunohistochemistry (Frozen sections) - Anti-Cytokeratin 13 antibody [AE8] - BSA and Azide free (ab269574)

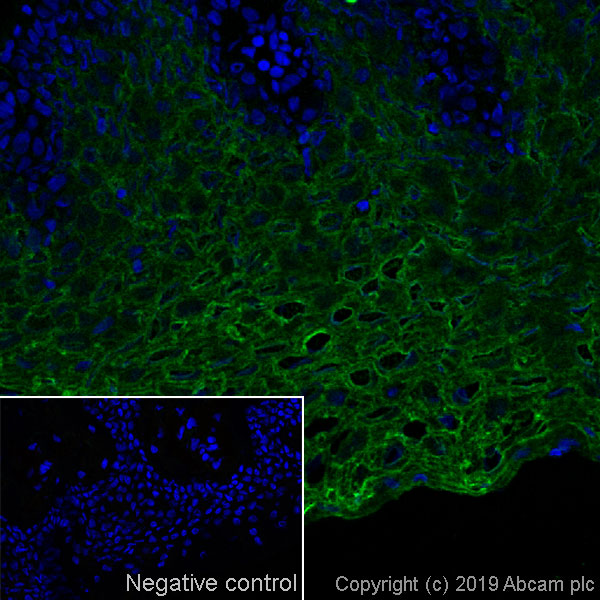

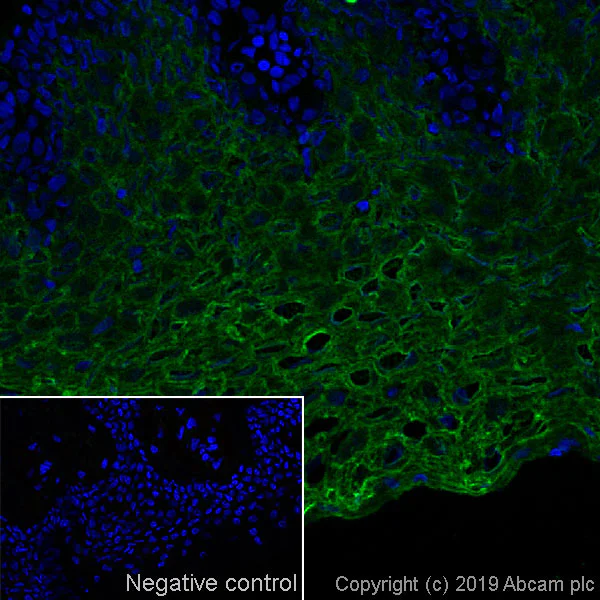

  IHC image of Cytokeratin 13 staining in a section of frozen normal human tonsil*.


  The section was fixed using 10% formaldehyde in 1XPBS for 10 minutes. No antigen retrieval step was performed prior to staining. Non-specific protein-protein interactions were then blocked in TBS containing 0.025% (v/v) Triton X-100, 0.3M glycine and 1% (w/v) BSA for 1h at room temperature. The section was then incubated overnight at +4°C in TBS containing 0.025% (v/v) Triton X-100 and 1% (w/v) BSA with Anti-Cytokeratin 13 antibody [AE8] ab16112 at 1μg/ml. The section was then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117 (Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488), 1/1000)) (shown in green) for 1 hour at room temperature. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM. The secondary-only control insert image is taken from an identical assay without primary antibody. The section was then mounted using Fluoromount®. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). For IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antibody concentrations and incubation times.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

  This image was produced using the same antibody clone but in a different formulation Anti-Cytokeratin 13 antibody [AE8] ab16112, PBS and sodium azide.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Cytokeratin 13 antibody [AE8] - BSA and Azide free (ab269574)

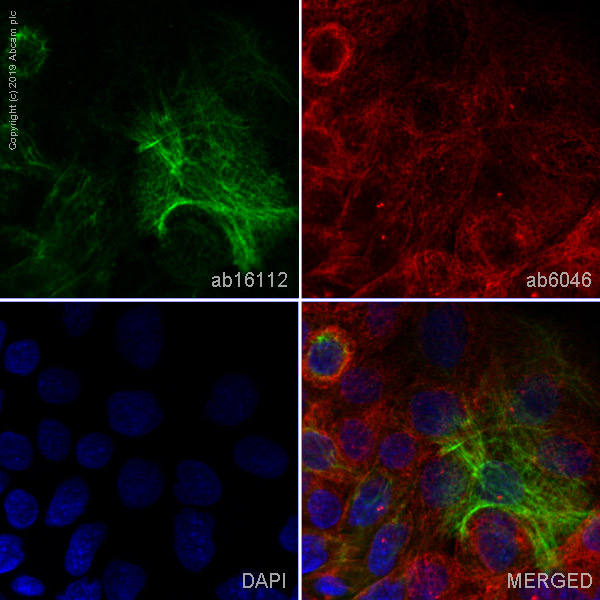

  Anti-Cytokeratin 13 antibody [AE8] ab16112 staining Cytokeratin 13 in A431 cells. The cells were fixed with Methanol (5min), permeabilized with 0.1%PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at +4°C with Anti-Cytokeratin 13 antibody [AE8] ab16112 at 5μg/ml and Anti-beta Tubulin antibody - Loading Control ab6046, Rabbit polyclonal to beta Tubulin - Loading Control, at 1/1000 dilution. Cells were then incubated with Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117, Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution (shown in green) and Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) ab150080, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labeled with DAPI (shown in blue).


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  This image was produced using the same antibody clone but in a different formulation Anti-Cytokeratin 13 antibody [AE8] ab16112, PBS and sodium azide.
