AB326416

Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector)

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal DC-SIGN antibody. Carrier free. Suitable for sELISA and reacts with Human samples.

View Alternative Names

CD209, CLEC4L, CD209 antigen, C-type lectin domain family 4 member L, Dendritic cell-specific ICAM-3-grabbing non-integrin 1, DC-SIGN, DC-SIGN1

4 Images
Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)
  • sELISA

Lab

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)

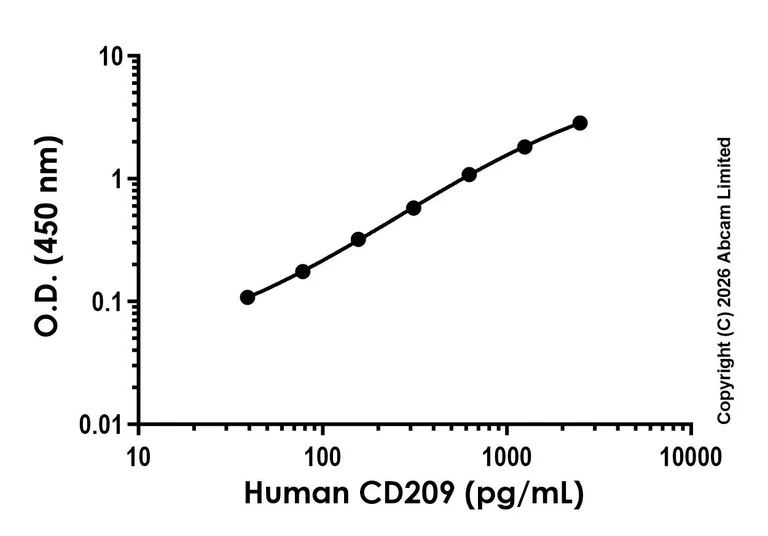

Sandwich ELISA using Human CD209 immunogen protein standard curve with the capture antibody ab326415 dilution at 2 µg/mL and detector antibody ab326416 dilution at 0.5 µg/mL. The background-subtracted absorbance data values are presented as mean +/- standard deviation.

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)
  • sELISA

Lab

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)

Interpolated concentration of native CD209 was measured at different sample concentrations. Undiluted sample is as follows : THP-1 cell extract (1mg/ml) . Sample dilutions are made in 1% bovine serum albumin (BSA). Data represented here are indicative of assay working using example of biological sample. However, we do not guarantee same sensitivity level due to biological variation.

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)
  • sELISA

Lab

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)

Interpolated concentration of native CD209 was measured at different sample concentrations. Undiluted sample is as follows : Human Tonsil extract (1mg/ml). Sample dilutions are made in 1% bovine serum albumin (BSA). Data represented here are indicative of assay working using example of biological sample. However, we do not guarantee same sensitivity level due to biological variation.

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)
  • sELISA

Lab

Sandwich ELISA - Anti-DC-SIGN antibody [EPR30695-62] - BSA and Azide free (Detector) (AB326416)

Interpolated concentration of native CD209 was measured at different sample concentrations and the interpolated dilution factor corrected values (to neat sample) . Undiluted sample is as follows : Human serum (Heparin) 100%, Sample dilutions are made in 1% bovine serum albumin (BSA). Data represented here are indicative of assay working using example of biological sample. However, we do not guarantee same sensitivity level due to biological variation.

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR30695-62

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

sELISA

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

This clone is specific for CD209.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "sELISA" : {"fullname" : "Sandwich ELISA", "shortname":"sELISA"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "sELISA-species-checked": "testedAndGuaranteed", "sELISA-species-dilution-info": "", "sELISA-species-notes": "<p></p>" } } }
style
left-column

Product details

ab326416 is a BSA and Azide Free antibody supplied in an unconjugated format and it is suitable for sandwich ELISAs to quantify Human DC-SIGN. The recommended pair for sandwich ELISA is: Capture: ab326415, Human DC-SIGN Capture Antibody (unconjugated) Detector: ab326416, Human DC-SIGN Detector Antibody (unconjugated) The reference range value is 39.06-2500pg/ml.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Sandwich ELISA
The recommended antibody orientation is based on internal optimization for ELISA-based assays. Antibody orientation is assay dependent and needs to be optimized for each assay type. Please note that the range provided for this antibody is only an estimation based on the performance of the product using the recommended antibody pair. Performance of the antibody pair will depend on the specific characteristics of your assay. We guarantee the product works in sandwich ELISA, but we do not guarantee the sensitivity or dynamic range of the antibody in your assay.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Pathogen-recognition receptor expressed on the surface of immature dendritic cells (DCs) and involved in initiation of primary immune response. Thought to mediate the endocytosis of pathogens which are subsequently degraded in lysosomal compartments. The receptor returns to the cell membrane surface and the pathogen-derived antigens are presented to resting T-cells via MHC class II proteins to initiate the adaptive immune response.. On dendritic cells (DCs) it is a high affinity receptor for ICAM2 and ICAM3 by binding to mannose-like carbohydrates (PubMed : 10721994, PubMed : 10721995, PubMed : 11017109, PubMed : 12574325). May act as a DC rolling receptor that mediates transendothelial migration of DC presursors from blood to tissues by binding endothelial ICAM2 (PubMed : 11017109). Forms a first contact between DC and resting T cell, througth ICAM3 binding, facilitating the downstream DC-T cell clustering process and DC-induced proliferation of resting T Cells (PubMed : 10721994, PubMed : 10721995).. (Microbial infection) Acts as an attachment receptor for HIV-1 and HIV-2.. (Microbial infection) Acts as an attachment receptor for Ebolavirus.. (Microbial infection) Acts as an attachment receptor for Cytomegalovirus.. (Microbial infection) Acts as an attachment receptor for HCV.. (Microbial infection) Acts as an attachment receptor for Dengue virus.. (Microbial infection) Acts as an attachment receptor for Measles virus.. (Microbial infection) Acts as an attachment receptor for Herpes simplex virus 1.. (Microbial infection) Acts as an attachment receptor for Influenzavirus A.. (Microbial infection) Acts as an attachment receptor for SARS-CoV.. (Microbial infection) Acts as an attachment receptor for Japanese encephalitis virus.. (Microbial infection) Acts as an attachment receptor for Lassa virus (PubMed : 23966408). Acts as an attachment receptor for Marburg virusn.. (Microbial infection) Acts as an attachment receptor for Respiratory syncytial virus.. (Microbial infection) Acts as an attachment receptor for Rift valley fever virus and uukuniemi virus.. (Microbial infection) Acts as an attachment receptor for West-nile virus.. (Microbial infection) Probably recognizes in a calcium-dependent manner high mannose N-linked oligosaccharides in a variety of bacterial pathogen antigens, including Leishmania pifanoi LPG, Lewis-x antigen in Helicobacter pylori LPS, mannose in Klebsiella pneumonae LPS, di-mannose and tri-mannose in Mycobacterium tuberculosis ManLAM and Lewis-x antigen in Schistosoma mansoni SEA (PubMed : 16379498). Recognition of M.tuberculosis by dendritic cells occurs partially via this molecule (PubMed : 16092920, PubMed : 21203928).
See full target information CD209
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
