Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free (AB236777)

Negative control : No staining on human hepatocellular cancer.

Immunohistochemical analysis of paraffin-embedded human hepatocellular cancer tissue stained for DDDDK tag using ab205606 at 1/750 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205606).

Heat mediated antigen retrieval was performed with EDTA buffer pH 9 before commencing with IHC staining protocol.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free (AB236777)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) cells labeling DDDDK tag with ab205606 at 1/100 dilution, followed by ab150077 Alexa Fluor^® 488 Goat anti-Rabbit secondary at 1/1000 dilution (green).

Confocal image showing positive staining for FLAG^® on HEK-293T cells transfected with DDDDK-tagged PFKFB3 expression vector. Mouse monoclonal anti-FLAG^® M2 antibody was used as a counterstain at 1/500 dilution, and Alexa Fluor^® 647 Goat anti-mouse secondary (ab150115) was used as the secondary antibody only control at 1/500 dilution. The nucleus is counterstained with DAPI.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205606).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free (AB236777)

Immunhistochemical analysis of agarose-embedded HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) transfected with DDDDK-tagged human PD-L1 expression vector labeling DDDDK tag with ab205606 at 1/750 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Counterstained with hematoxylin.

Positive staining on HEK-293T cells transfected with DDDDK-tagged human PD-L1 expression vector (Panel A) is observed. No signal was detected on HEK-293T transfected with an empty vector (vector control), containing a C-terminal DDDDK tag (Panel B).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205606).

Heat mediated antigen retrieval was performed with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IP

Supplier Data

Immunoprecipitation - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free (AB236777)

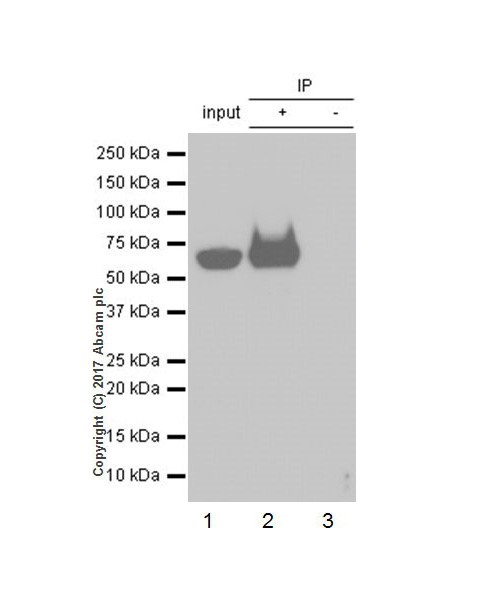

DDDDK tag was immunoprecipitated from 0.35 mg HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) transfected with DDDDK-tagged human PFKFB3 expression vector whole cell lysate with ab205606 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab205606 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : HEK-293T transfected with DDDDK-tagged human PFKFB3 expression vector whole cell lysate (input).

Lane 2 : ab205606 IP in HEK-293T transfected with DDDDK-tagged human PFKFB3 expression vector whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab205606 in HEK-293T transfected with DDDDK-tagged human PFKFB3 expression vector whole cell lysate.

Blocking/Dilution buffer : 5% NFDM/TBST
Exposure time : 3 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205606).

All lanes:

Immunoprecipitation - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] (<a href='/en-us/products/primary-antibodies/ddddk-tag-binds-to-flag-tag-sequence-antibody-epr20018-251-ab205606'>ab205606</a>)

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free (AB236777)

Negative control : No staining on mouse spleen.

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue stained for DDDDK tag using ab205606 at 1/750 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205606).

Heat mediated antigen retrieval was performed with EDTA buffer pH 9 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DDDDK tag (Binds to FLAG® tag sequence) antibody [EPR20018-251] - BSA and Azide free (AB236777)

Negative control : No staining on rat spleen.

Immunohistochemical analysis of paraffin-embedded rat spleen tissue stained for DDDDK tag using ab205606 at 1/750 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab205606).

Heat mediated antigen retrieval was performed with EDTA buffer pH 9 before commencing with IHC staining protocol.
