Anti-delta Sarcoglycan antibody [EPR8706] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-delta Sarcoglycan antibody [EPR8706] - BSA and Azide free (AB240108)

Immunohistochemical analysis of paraffin-embedded Human heart tissue labelling delta Sarcoglycan with ab137101 at 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab137101).

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-delta Sarcoglycan antibody [EPR8706] - BSA and Azide free (AB240108)

Fluorescence multiplex immunohistochemical analysis of the human skeletal muscle (Formalin/PFA-fixed paraffin-embedded sections). Panel A : merged staining of anti-delta Sarcoglycan (ab137101, red; Opal™690), anti-MYH2 (ab264036, cyan; Opal™520) and anti-MYH6 + Slow Skeletal Myosin Heavy chain (ab250868, gray; Opal™570) on human skeletal muscle. Panel B : anti-MYH2 stained on the fast twitch type 2A fibers. Panel C : anti-MYH6 + Slow Skeletal Myosin Heavy chain stained on skeletal muscle fiber subtypes. Panel D : anti-delta Sarcoglycan stained on membrane of skeletal muscle. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The section was incubated in three rounds of staining : in the order of ab137101 at 1/1000 dilution (1.043 μg/ml), ab264036 at 1/1000 dilution (1.116 μg/ml) and ab250868 1/5000 dilution (0.209 μg/ml) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. DAPI (blue) was used as a nuclear counter stain. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab137101).

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-delta Sarcoglycan antibody [EPR8706] - BSA and Azide free (AB240108)

Fluorescence multiplex immunohistochemical analysis of the human cardiac muscle (Formalin/PFA-fixed paraffin-embedded sections). Panel A : merged staining of anti-delta Sarcoglycan (ab137101, red; Opal™690), anti-Titin (ab307446, green; Opal™520) and anti-Natriuretic peptides A (ab209232, magenta; Opal™570) on human cardiac muscle. Panel B : anti-Titin displayed nucleus and cytoplasm expression. Panel C : anti-Natriuretic peptides A displayed granular cytoplasmic expression. Panel D : anti-delta Sarcoglycan displayed membrane expression. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The section was incubated in three rounds of staining : in the order of ab137101 at 1/1000 (1.043 μg/ml) dilution, ab307446 at 1/500 (0.95 μg/ml) dilution, and ab209232 at 1/3000 (0.241 μg/ml) dilution for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. DAPI (blue) was used as a nuclear counter stain. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab137101).

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-delta Sarcoglycan antibody [EPR8706] - BSA and Azide free (AB240108)

Fluorescence multiplex immunohistochemical analysis of the human skeletal muscle (Formalin/PFA-fixed paraffin-embedded sections). Panel A : merged staining of anti-delta Sarcoglycan (ab137101, green; Opal™690), anti-Fast Myosin Skeletal Heavy chain + MYH4 (ab221149, magenta; Opal™520) and anti-Slow Skeletal Myosin Heavy chain (ab234431, red; Opal™570) on human skeletal muscle. Panel B : anti-Fast Myosin Skeletal Heavy chain + MYH4 stained on fast type fibers. Panel C : anti-Slow Skeletal Myosin Heavy chain stained on slow type fibers. Panel D : anti-delta Sarcoglycan stained on membrane of skeletal muscle. Opal Polymer HRP Ms + Rb was used as a secondary antibody. The section was incubated in three rounds of staining : in the order of ab137101 at 1/1000 (1.043 μg/ml), ab221149 at 1/1000 (0.505 μg/ml, and ab234431 at 1/4000 (0.255 μg/ml) for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. DAPI (blue) was used as a nuclear counter stain. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab137101).

• IP

Lab

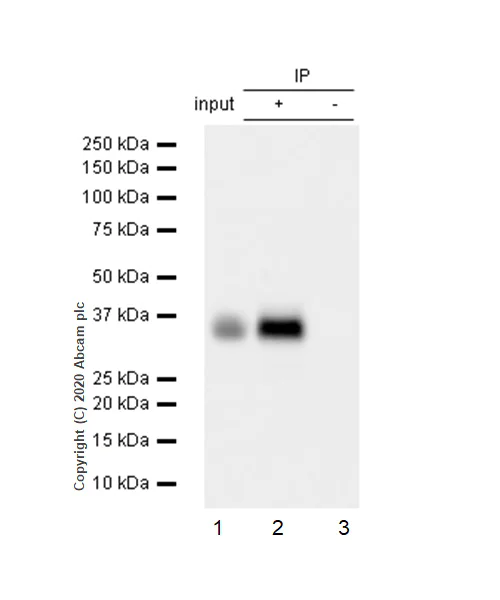

Immunoprecipitation - Anti-delta Sarcoglycan antibody [EPR8706] - BSA and Azide free (AB240108)

This data was developed using ab137101, the same antibody clone in a different buffer formulation.
Purified ab137101 at 1/20 dilution (1μg) immunoprecipitating delta Sarcoglycan in Human skeletal muscle lysate.
Lane 1 (input) : Human skeletal muscle lysate 10μg
Lane 2 (+) : ab137101 + Human skeletal muscle lysate.
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab137101 in Human skeletal muscle lysate.
VeriBlot for IP Detection Reagent (HRP) (ab131366) (1/1000 dilution) was used for Western blotting.
Blocking Buffer and concentration : 5% NFDM/TBST.
Diluting buffer and concentration : 5% NFDM/TBST.
Observed band size : 35 kDa

All lanes:

Immunoprecipitation - Anti-delta Sarcoglycan antibody [EPR8706] (<a href='/en-us/products/primary-antibodies/delta-sarcoglycan-antibody-epr8706-ab137101'>ab137101</a>)

Predicted band size: 32 kDa
