AB41616

Anti-Dengue Virus NS1 glycoprotein antibody [DN3]

1

(2 Reviews)

|

(18 Publications)

Mouse Monoclonal POLG antibody. Suitable for WB, ICC/IF and reacts with Dengue virus 1, Dengue virus 2, Dengue virus 3, Dengue virus 4 samples. Cited in 18 publications.

View Alternative Names

Genome polyprotein, pol

3 Images
Immunocytochemistry/ Immunofluorescence - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (AB41616)
  • ICC/IF

PubMed

Immunocytochemistry/ Immunofluorescence - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (AB41616)

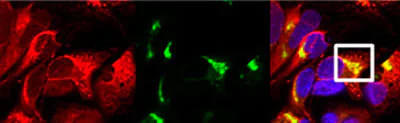

ab41616 staining NS1 glycoprotein in Dengue Virus 2 infected Huh-7.5 cells by Immunocytochemistry/ Immunofluorescence.

Huh-7.5 cells were plated on glass coverslips, infected with Dengue Virus 2, fixed in methanol, and blocked, and antibody was added in 1× PBS + 0.1% saponin. Antibodies used include FASN polyclonal, left image (ab3844) or NS1 monoclonal antibody, middle image (ab41616). Secondary antibodies were species-appropriate Alexa-Fluor 488 or 594 secondary antibody. Stained coverslips were mounted with DAPI, right merged image.

Image from Heaton NS et al, Proc Natl Acad Sci U S A. 2010 Oct 5;107(40):17345-50. Epub 2010 Sep 20, Fig 2. DOI 10.1073/pnas.1010811107

Immunocytochemistry/ Immunofluorescence - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (AB41616)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (AB41616)

Dengue Virus 2 infected Vero cells stained according to protocol with ab41349 antibody against Dengue Virus envelope glycoprotein NS1 (green). Cell nuclei are blue.

Western blot - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (AB41616)
  • WB

Unknown

Western blot - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (AB41616)

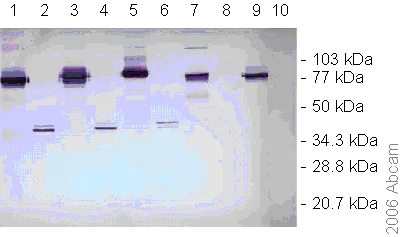

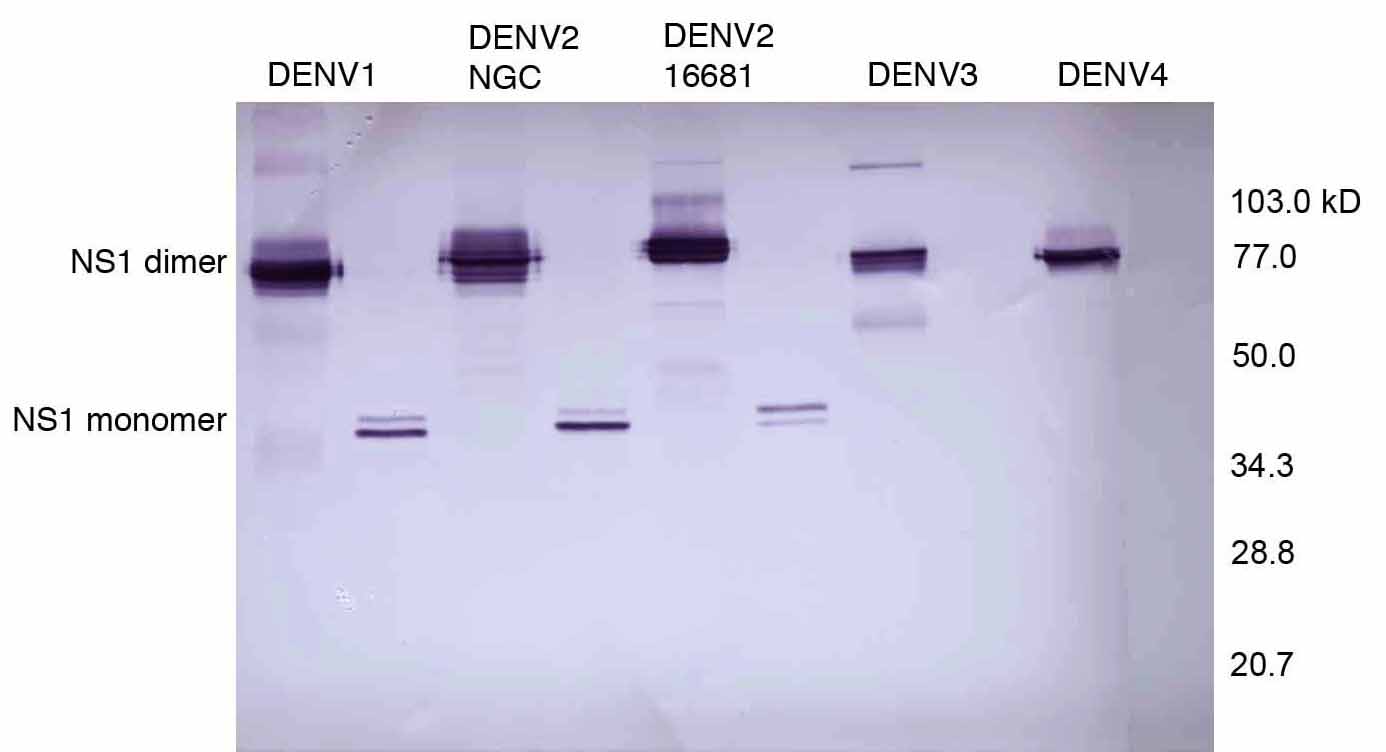

Recognises NS1 dimer (~80 kDa) in unheated samples and NS1 monomer (~40 kDa) when samples are boiled.

All lanes:

Western blot - Anti-Dengue Virus NS1 glycoprotein antibody [DN3] (ab41616)

Lane 1:

Dengue Virus 1 infected C6/36 cell lysate (unheated)

Lane 2:

Dengue Virus 1 infected C6/36 cell lysate (boiled)

Lane 3:

Dengue Virus 2 (NGC) infected C6/36 cell lysate (unheated)

Lane 4:

Dengue Virus 2 (NGC) infected C6/36 cell lysate (boiled)

Lane 5:

Dengue Virus 2 (16681) infected C6/36 cell lysate (unheated)

Lane 6:

Dengue Virus 2 (16681) infected C6/36 cell lysate (boiled)

Lane 7:

Dengue Virus 3 infected C6/36 cell lysate (unheated)

Lane 8:

Dengue Virus 3 infected C6/36 cell lysate (boiled)

Lane 9:

Dengue Virus 4 infected C6/36 cell lysate (unheated)

Lane 10:

Dengue Virus 4 infected C6/36 cell lysate (boiled)

Predicted band size: 40 kDa

Observed band size: 40 kDa,80 kDa

false

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

DN3

Isotype

IgG1

Light chain type

kappa

Carrier free

No

Reacts with

Dengue virus 1, Dengue virus 2, Dengue virus 3, Dengue virus 4

Applications

ICC/IF, WB

applications

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Dengue virus 1": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/50 - 1/100", "WB-species-notes": "<p>Block membrane with PBS containing 5% non-fat skimmed milk (PBS-SM) for 30 minutes. Wash membrane and probe with serum diluted in PBS-SM with 10 mM sodium azide by incubating overnight on a rocker at room temperature.</p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "1/5 - 1/20", "ICCIF-species-notes": "<p></p>" }, "Dengue virus 2": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/50 - 1/100", "WB-species-notes": "<p>Block membrane with PBS containing 5% non-fat skimmed milk (PBS-SM) for 30 minutes. Wash membrane and probe with serum diluted in PBS-SM with 10 mM sodium azide by incubating overnight on a rocker at room temperature.</p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/5 - 1/20", "ICCIF-species-notes": "<p></p>" }, "Dengue virus 3": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/50 - 1/100", "WB-species-notes": "<p>Block membrane with PBS containing 5% non-fat skimmed milk (PBS-SM) for 30 minutes. Wash membrane and probe with serum diluted in PBS-SM with 10 mM sodium azide by incubating overnight on a rocker at room temperature.</p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "1/5 - 1/20", "ICCIF-species-notes": "<p></p>" }, "Dengue virus 4": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/50 - 1/100", "WB-species-notes": "<p>Block membrane with PBS containing 5% non-fat skimmed milk (PBS-SM) for 30 minutes. Wash membrane and probe with serum diluted in PBS-SM with 10 mM sodium azide by incubating overnight on a rocker at room temperature.</p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "1/5 - 1/20", "ICCIF-species-notes": "<p></p>" } } }

Properties and storage information

Form
Liquid
Purity
Tissue culture supernatant
Storage buffer
Preservative: 0.1% Proclin 150 Constituents: 89.9% RPMI 1640, 10% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Storage information
Avoid freeze / thaw cycle

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The Dengue Virus NS1 glycoprotein also known as NS1 alternative DN1 and others like BC5 and CC6 is a non-structural protein that plays an important role in dengue virus infection. It has a molecular mass of about 46-50 kDa and expresses in both intracellular and extracellular environments. Within infected cells NS1 produces in the endoplasmic reticulum (ER). Outside the cells it exists as a soluble hexamer and gets secreted into the bloodstream.
Biological function summary

Within infected cells NS1 aids dengue virus replication and contributes to viral RNA synthesis. Though not part of a ribonucleoprotein complex NS1 interacts with the viral RNA and RNA polymerase facilitating efficient genome replication. It also interferes with the host’s immune response helping the virus escape immune detection. The extracellular form of NS1 triggers immune responses and can lead to vascular leakage by disrupting endothelial cell function.

Pathways

NS1 significantly impacts the flavivirus replication cycle and the host's immune pathways. It interacts with proteins such as FB10 in the replication pathway affecting replication efficiency. In the immune pathway NS1 modulation impairs the complement system through interactions with proteins like OB4 reducing the host's ability to clear the virus.

The NS1 protein closely links to dengue fever and dengue hemorrhagic fever. It associates with the severity of these diseases due to its role in immune evasion and vascular permeability. NS1 levels in circulation correlate with disease severity and interactions with DN2 contribute to immune modulation exacerbating symptoms and leading to complications in infected individuals.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Capsid protein C. Plays a role in virus budding by binding to the cell membrane and gathering the viral RNA into a nucleocapsid that forms the core of a mature virus particle. During virus entry, may induce genome penetration into the host cytoplasm after hemifusion induced by the surface proteins. Can migrate to the cell nucleus where it modulates host functions. Overcomes the anti-viral effects of host EXOC1 by sequestering and degrading the latter through the proteasome degradation pathway.. Capsid protein C. Inhibits RNA silencing by interfering with host Dicer.. Peptide pr. Prevents premature fusion activity of envelope proteins in trans-Golgi by binding to envelope protein E at pH6.0. After virion release in extracellular space, gets dissociated from E dimers.. Protein prM. Acts as a chaperone for envelope protein E during intracellular virion assembly by masking and inactivating envelope protein E fusion peptide. prM is the only viral peptide matured by host furin in the trans-Golgi network probably to avoid catastrophic activation of the viral fusion activity in acidic Golgi compartment prior to virion release. prM-E cleavage is inefficient, and many virions are only partially matured. These uncleaved prM would play a role in immune evasion.. Small envelope protein M. May play a role in virus budding. Exerts cytotoxic effects by activating a mitochondrial apoptotic pathway through M ectodomain. May display a viroporin activity.. Envelope protein E. Binds to host cell surface receptor and mediates fusion between viral and cellular membranes. Envelope protein is synthesized in the endoplasmic reticulum in the form of heterodimer with protein prM. They play a role in virion budding in the ER, and the newly formed immature particle is covered with 60 spikes composed of heterodimer between precursor prM and envelope protein E. The virion is transported to the Golgi apparatus where the low pH causes dissociation of PrM-E heterodimers and formation of E homodimers. prM-E cleavage is inefficient, and many virions are only partially matured. These uncleaved prM would play a role in immune evasion.. Non-structural protein 1. Involved in immune evasion, pathogenesis and viral replication. Once cleaved off the polyprotein, is targeted to three destinations : the viral replication cycle, the plasma membrane and the extracellular compartment. Essential for viral replication. Required for formation of the replication complex and recruitment of other non-structural proteins to the ER-derived membrane structures. Excreted as a hexameric lipoparticle that plays a role against host immune response. Antagonizing the complement function. Binds to the host macrophages and dendritic cells. Inhibits signal transduction originating from Toll-like receptor 3 (TLR3).. Non-structural protein 1. Disrupts the host endothelial glycocalyx layer of host pulmonary microvascular endothelial cells, inducing degradation of sialic acid and shedding of heparan sulfate proteoglycans. NS1 induces expression of sialidases, heparanase, and activates cathepsin L, which activates heparanase via enzymatic cleavage. These effects are probably linked to the endothelial hyperpermeability observed in severe dengue disease.. Non-structural protein 2A. Component of the viral RNA replication complex that functions in virion assembly and antagonizes the host immune response.. Serine protease subunit NS2B. Required cofactor for the serine protease function of NS3. May have membrane-destabilizing activity and form viroporins (By similarity).. Serine protease NS3. Displays three enzymatic activities : serine protease, NTPase and RNA helicase. NS3 serine protease, in association with NS2B, performs its autocleavage and cleaves the polyprotein at dibasic sites in the cytoplasm : C-prM, NS2A-NS2B, NS2B-NS3, NS3-NS4A, NS4A-2K and NS4B-NS5. NS3 RNA helicase binds RNA and unwinds dsRNA in the 3' to 5' direction.. Non-structural protein 4A. Regulates the ATPase activity of the NS3 helicase activity. NS4A allows NS3 helicase to conserve energy during unwinding. Plays a role in the inhibition of the host innate immune response. Interacts with host MAVS and thereby prevents the interaction between RIGI and MAVS. In turn, IFN-beta production is impaired. Interacts with host AUP1 which mediates induction of lipophagy in host cells and facilitates production of virus progeny particles (By similarity).. Peptide 2k. Functions as a signal peptide for NS4B and is required for the interferon antagonism activity of the latter.. Non-structural protein 4B. Induces the formation of ER-derived membrane vesicles where the viral replication takes place. Inhibits interferon (IFN)-induced host STAT1 phosphorylation and nuclear translocation, thereby preventing the establishment of cellular antiviral state by blocking the IFN-alpha/beta pathway.. RNA-directed RNA polymerase NS5. Replicates the viral (+) and (-) RNA genome, and performs the capping of genomes in the cytoplasm. NS5 methylates viral RNA cap at guanine N-7 and ribose 2'-O positions. Besides its role in RNA genome replication, also prevents the establishment of cellular antiviral state by blocking the interferon-alpha/beta (IFN-alpha/beta) signaling pathway. Inhibits host TYK2 and STAT2 phosphorylation, thereby preventing activation of JAK-STAT signaling pathway.
See full target information pol

Additional targets

POLG_DEN4D,POLG_DEN26

Publications (18)

Recent publications for all applications. Explore the full list and refine your search

iScience 27:110711 PubMed39262808

2024

Cordycepin exhibits both antiviral and anti-inflammatory effects against dengue virus infection.

Applications

Unspecified application

Species

Unspecified reactive species

Pucharee Songprakhon,Aussara Panya,Kornkan Choomee,Thawornchai Limjindaporn,Sansanee Noisakran,Mayuri Tarasuk,Pa-Thai Yenchitsomanus

Viruses 15: PubMed36851578

2023

Extracellular Vesicles Are Conveyors of the NS1 Toxin during Dengue Virus and Zika Virus Infection.

Applications

Unspecified application

Species

Unspecified reactive species

Daed El Safadi,Grégorie Lebeau,Alisé Lagrave,Julien Mélade,Lauriane Grondin,Sarah Rosanaly,Floran Begue,Mathilde Hoareau,Bryan Veeren,Marjolaine Roche,Jean-Jacques Hoarau,Olivier Meilhac,Patrick Mavingui,Philippe Desprès,Wildriss Viranaïcken,Pascale Krejbich-Trotot

Nanoscale advances 2:3017-3026 PubMed36132417

2020

A magnetic immunoconjugate nanoplatform for easy colorimetric detection of the NS1 protein of dengue virus in infected serum.

Applications

Unspecified application

Species

Unspecified reactive species

Ramsés Ramírez-Navarro,Peter Polesnak,Julio Reyes-Leyva,Ubydul Haque,Juan Carlos Vazquez-Chagoyán,Martín R Pedroza-Montero,Miguel A Méndez-Rojas,Aracely Angulo-Molina

Frontiers in plant science 10:1674 PubMed32010161

2020

Transient Expression of Dengue Virus NS1 Antigen in for Use as a Diagnostic Antigen.

Applications

Unspecified application

Species

Unspecified reactive species

Lívia É C Marques,Bruno B Silva,Rosa Fireman Dutra,Eridan O P Tramontina Florean,Rima Menassa,Maria Izabel F Guedes

Cell host & microbe 26:606-622.e8 PubMed31631053

2019

Dengue NS2A Protein Orchestrates Virus Assembly.

Applications

Unspecified application

Species

Unspecified reactive species

Xuping Xie,Jing Zou,Xianwen Zhang,Yiyang Zhou,Andrew L Routh,Congbao Kang,Vsevolod L Popov,Xinwen Chen,Qing-Yin Wang,Hongping Dong,Pei-Yong Shi

Vector borne and zoonotic diseases (Larchmont, N.Y.) 20:143-150 PubMed31503521

2019

Differences in the Transmission of Dengue Fever by Different Serotypes of Dengue Virus.

Applications

Unspecified application

Species

Unspecified reactive species

Cong Niu,Yalan Huang,Miao Wang,Dana Huang,Jia Li,Suibin Huang,Fan Yang,Chengsong Wan,Renli Zhang

The journal of histochemistry and cytochemistry : 67:419-439 PubMed30924711

2019

Differential Microglial Morphological Response, TNFα, and Viral Load in Sedentary-like and Active Murine Models After Systemic Non-neurotropic Dengue Virus Infection.

Applications

Unspecified application

Species

Unspecified reactive species

Giovanni Freitas Gomes,Railana Deise da Fonseca Peixoto,Brenda Gonçalves Maciel,Kedma Farias Dos Santos,Lohrane Rosa Bayma,Pedro Alves Feitoza Neto,Taiany Nogueira Fernandes,Cintya Castro de Abreu,Samir Mansour Moraes Casseb,Camila Mendes de Lima,Marcus Augusto de Oliveira,Daniel Guerreiro Diniz,Pedro Fernando da Costa Vasconcelos,Marcia Consentino Kronka Sosthenes,Cristovam Wanderley Picanço Diniz

Biosensors & bioelectronics 132:38-46 PubMed30851494

2019

Localized surface plasmon resonance (LSPR) biosensor based on thermally annealed silver nanostructures with on-chip blood-plasma separation for the detection of dengue non-structural protein NS1 antigen.

Applications

Unspecified application

Species

Unspecified reactive species

Pearlson Prashanth Austin Suthanthiraraj,Ashis Kumar Sen

Autophagy 13:322-332 PubMed28102736

2017

Dengue and Zika viruses subvert reticulophagy by NS2B3-mediated cleavage of FAM134B.

Applications

Unspecified application

Species

Unspecified reactive species

Nicholas J Lennemann,Carolyn B Coyne

Intervirology 59:8-19 PubMed27318958

2016

Expression of Antimicrobial Peptides in Human Monocytic Cells and Neutrophils in Response to Dengue Virus Type 2.

Applications

Unspecified application

Species

Unspecified reactive species

Jorge I Castañeda-Sánchez,Diana Alhelí Domínguez-Martínez,Nataly Olivar-Espinosa,Blanca Estela García-Pérez,María Alba Loroño-Pino,Julieta Luna-Herrera,Ma Isabel Salazar
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
