Anti-Desmoglein 2/DSG2 antibody [EPR26639-18]

9 product images

•

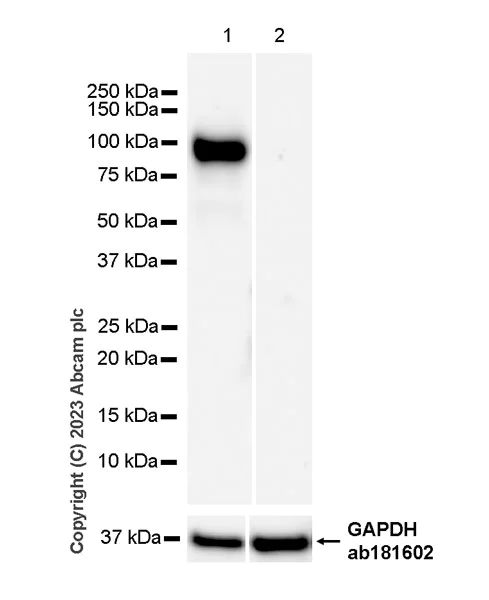

  Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Low expression: Daudi(PMID: 29301346)

  The identity of the band between 50 kDa and 37 kDa is unknown.

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  All lanes: Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448) at 1/1000 dilution

  Lane 1: K-562 (human chronic myelogenous leukemia lymphoblast) whole cell lysate at 20 µg

  Lane 2: Daudi (human Burkitt’s lymphoma lymphoblast) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 90-160 kDa, 36 kDa

  Exposure time: 3m

•

  Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Low expression: skeletal muscle (PMID: 22457526).

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  All lanes: Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448) at 1/1000 dilution

  Lane 1: Human colon tissue lysate at 20 µg

  Lane 2: Human skeletal muscle tissue lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 90-160 kDa, 36 kDa

  Exposure time: 37s

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling Desmoglein 2/DSG2 with ab315448 at 1/8000 (0.065 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Low expression tissue: no staining on human liver. The section was incubated with ab315448 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Immunohistochemical analysis of paraffin-embedded Human ovarian carcinoma tissue labeling Desmoglein 2/DSG2 with ab315448 at 1/8000 (0.065 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on human ovarian carcinoma. The section was incubated with ab315448 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Immunohistochemical analysis of paraffin-embedded Human lung carcinoma tissue labeling Desmoglein 2/DSG2 with ab315448 at 1/8000 (0.065 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on human lung carcinoma (PMID: 33217893). The section was incubated with ab315448 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Immunohistochemical analysis of paraffin-embedded Human endometrium tissue labeling Desmoglein 2/DSG2 with ab315448 at 1/8000 (0.065 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on human endometrium. The section was incubated with ab315448 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

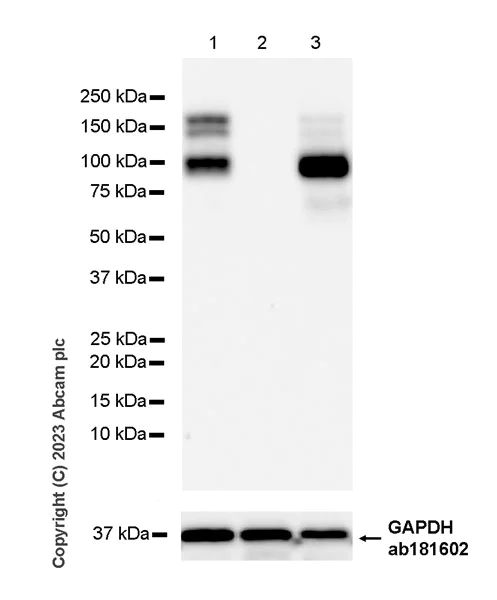

  Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  In Western blot, ab315448 was shown to bind specifically to Desmoglein 2/DSG2. A band was observed at 90-160 kDa in wild-type HeLa cell lysates with whereas no signal observed at this size in Desmoglein 2/DSG2 knockout cell line Human DSG2 (Desmoglein 2) knockout HeLa cell line ab261826 (knockout cell lysate Human DSG2 (Desmoglein 2) knockout HeLa cell lysate ab257158).

  The expression molecular weight observed is consistent with what has been described in the literature (PMID: 21841821).

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  All lanes: Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448) at 1/1000 dilution

  Lane 1: Wild-type HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: DSG2 knockout HeLa whole cell lysate at 20 µg

  Lane 3: HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Performed under reducing conditions.

  Observed band size: 90-160 kDa, 36 kDa

  Exposure time: 37s

•

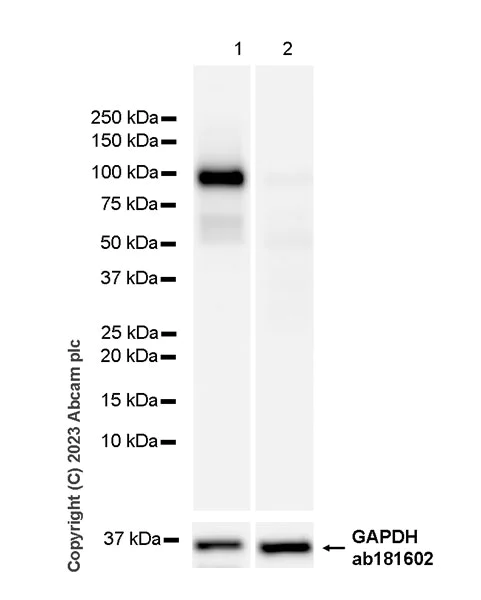

  Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Low expression: liver.

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  All lanes: Western blot - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448) at 1/1000 dilution

  Lane 1: Human colon tissue lysate at 20 µg

  Lane 2: Human liver tissue lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 90-160 kDa, 36 kDa

  Exposure time: 15s

•

  Immunocytochemistry/ Immunofluorescence - Anti-Desmoglein 2/DSG2 antibody [EPR26639-18] (ab315448)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Tween-20 permeabilized DSG2 KO HeLa (DSG2 knockout human cervical adenocarcinoma epithelial cell), Human DSG2 (Desmoglein 2) knockout HeLa cell line ab261826 cells labelling Desmoglein 2/DSG2 with ab315448 at 1/1000 (0.517 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).

  Confocal image showing mainly membranous staining in wildtype HeLa cells, showing no staining in DSG2 knockout HeLa cells.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.
