Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

Immunocytochemistry/ Immunofluorescence analysis of HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling DPF2/REQ with purified ab134942 at 1/200 dilution (8.3μg/ml). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889, an anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) at 1/200 (2.5 μg/ml). ab150077, a Goat anti-rabbit IgG(Alexa Fluor^® 488) was used as the secondary antibody at 1/1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human breast carcinoma tissue sections labeling DPF2/REQ with purified ab134942 at 1/200 dilution (8.3 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9. Tissue was counterstained with hematoxylin. ab97051, a Goat Anti-Rabbit IgG H&L (HRP) secondary antibody was used at 1/500 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

Immunohistochemical analysis of paraffin-embedded, formalin-fixed Human kidney tissue, labelling DPF2/REQ using unpurified ab134942 at a 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon tissue sections labeling DPF2/REQ with purified ab134942 at 1/200 dilution (8.3 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9. Tissue was counterstained with hematoxylin. ab97051, a Goat Anti-Rabbit IgG H&L (HRP) secondary antibody was used at 1/500 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

• IP

Lab

Immunoprecipitation - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

ab134942 (purified) at 1/100 dilution (2μg) immunoprecipitating DPF2/REQ in HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate.

Lane 1 (input) : HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate 10ug
Lane 2 (+) : ab134942 + HeLa whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab134942 in HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate

For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

All lanes:

Immunoprecipitation - Anti-DPF2/REQ antibody [EPR9206(B)] (<a href='/en-us/products/primary-antibodies/dpf2-req-antibody-epr9206b-ab134942'>ab134942</a>)

Predicted band size: 44 kDa

Observed band size: 44 kDa

false

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cerebral cortex tissue sections labeling DPF2/REQ with purified ab134942 at 1/200 dilution (8.3 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9. Tissue was counterstained with hematoxylin. ab97051, a Goat Anti-Rabbit IgG H&L (HRP) secondary antibody was used at 1/500 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat cerebral cortex tissue sections labeling DPF2/REQ with purified ab134942 at 1/200 dilution (8.3 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9. Tissue was counterstained with hematoxylin. ab97051, a Goat Anti-Rabbit IgG H&L (HRP) secondary antibody was used at 1/500 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab134942).

• WB

Lab

Western blot - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

This data was developed using the same antibody clone in a different buffer formulation (ab134942).

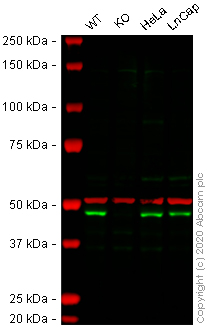

Lanes 1 - 4 : Merged signal (red and green). Green - ab134942 observed at 50 kDa. Red - loading control, ab7291 (Mouse anti-Alpha Tubulin [DM1A]) observed at 55kDa.

ab134942 was shown to react with DPF2/REQ in wild-type A431 cells in western blot. Loss of signal was observed when DPF2 knockout sample was used. Wild-type and DPF2 knockout A431 cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk in TBS-T (0.1% Tween^®) before incubation with ab134942 and ab7291 (Mouse anti-Alpha Tubulin [DM1A]) overnight at 4°C at a 1 in 1000 Dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-DPF2/REQ antibody [EPR9206(B)] (<a href='/en-us/products/primary-antibodies/dpf2-req-antibody-epr9206b-ab134942'>ab134942</a>) at 1/1000 dilution

Lane 1:

Wild-type A-431 (Human epidermoid carcinoma cell line) whole cell lysate at 20 µg

Lane 2:

DPF2 knockout A-431 (Human epidermoid carcinoma cell line) whole cell lysate at 20 µg

Lane 2:

Western blot - Human DPF2 knockout A-431 cell line (<a href='/en-us/products/cell-lines/human-dpf2-knockout-a-431-cell-line-ab270473'>ab270473</a>)

Lane 3:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 4:

LNCaP (Human prostate cancer cell line) whole cell lysate at 20 µg

Predicted band size: 44 kDa

Observed band size: 50 kDa

false

• OI-RD Scanning

Unknown

OI-RD Scanning - Anti-DPF2/REQ antibody [EPR9206(B)] - BSA and Azide free (AB232327)

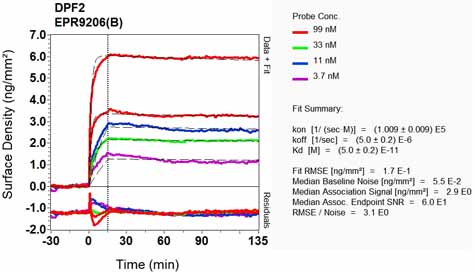

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
