Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free

• IHC-P

Unknown

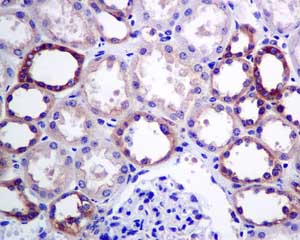

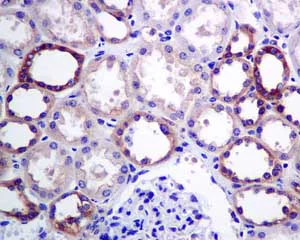

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labelling Dynamin 2 with ab151555 at 1/50 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• ICC/IF

Unknown

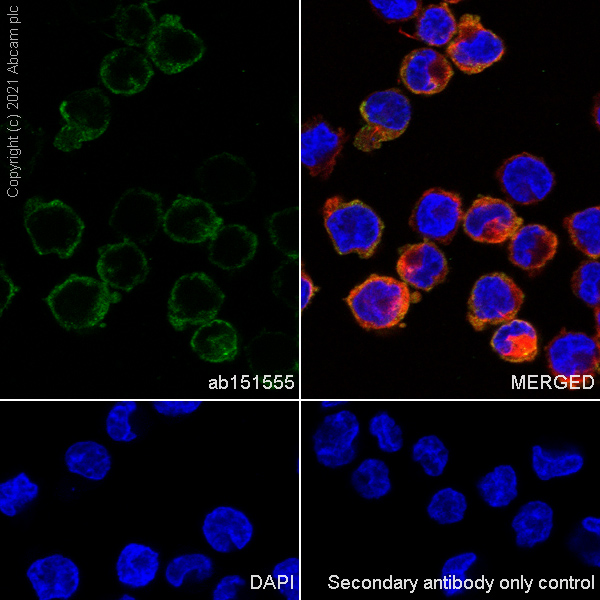

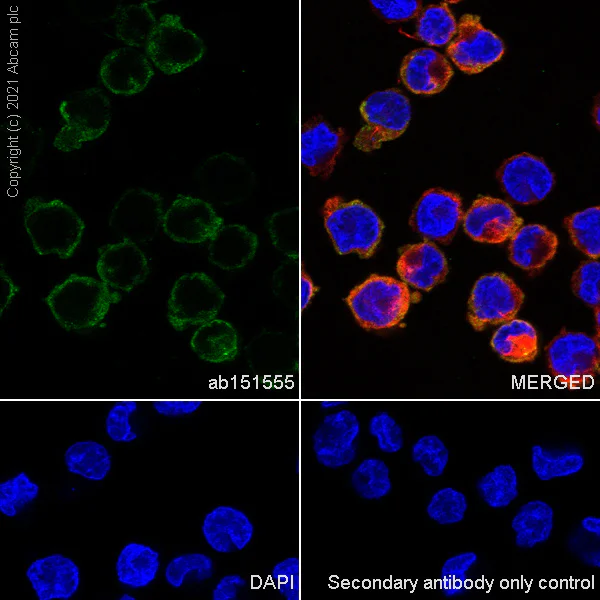

Immunocytochemistry/ Immunofluorescence - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555 the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized K-562 cells labelling Dynamin 2 with ab151555 at 1/50 (19.56 ug/ml) dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic staining in K-562 cell line ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5 dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1000 2 ug/ml dilution.

• IHC-P

Unknown

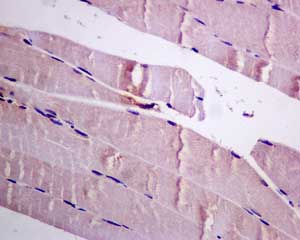

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labelling Dynamin 2 with ab151555 at 1/50 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde fixed 0.1% Triton X-100 permeabilized PC-12 (rat adrenal gland pheochromocytoma cell) labelling Dynamin 2 with ab151555 at 1/100 (7.5 μg/ml) followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody as secondary at 1/1000 (2 μg/ml) dilution. Confocal image showing positive staining in PC-12 cell line (shown in green). ab7291 Anti-alpha Tubulin mouse monoclonal antibody at 1/1000 (1μg/ml) was used as a counterstain along with ab150120 as secondary at 1/1000 (2μg/ml) (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• WB

Unknown

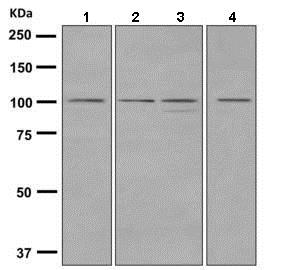

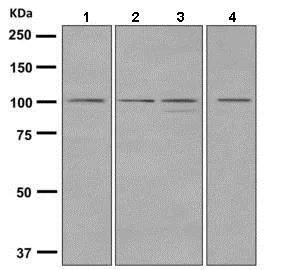

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] (<a href='/en-us/products/primary-antibodies/dynamin-2-antibody-epr90532abc-ab151555'>ab151555</a>) at 1/1000 dilution

Lane 1:

HeLa cell lysate at 10 µg

Lane 2:

K562 cell lysate at 10 µg

Lane 3:

Jurkat cell lysate at 10 µg

Lane 4:

Fetal brain tissue lysate at 10 µg

Predicted band size: 98 kDa

false

• WB

Lab

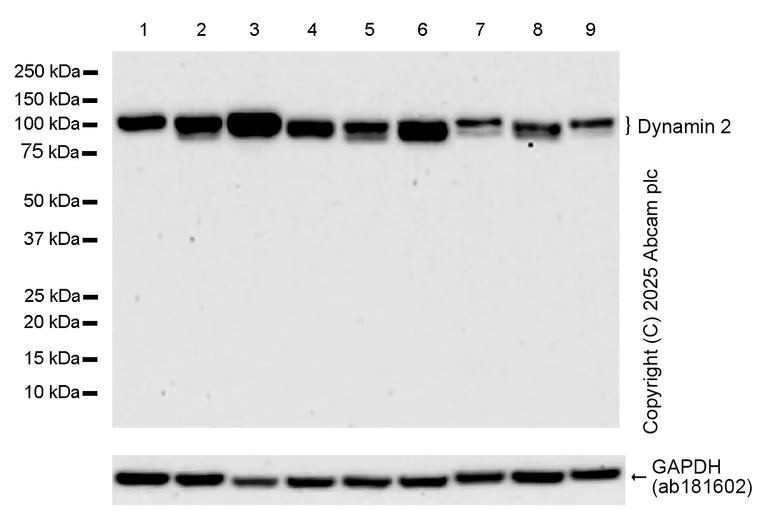

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

The molecular weight observed is consistent with what has been described in the literature (PMID : 36369230).

All lanes:

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] (<a href='/en-us/products/primary-antibodies/dynamin-2-antibody-epr90532abc-ab151555'>ab151555</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

K-562 (human chronic myelogenous leukemia lymphoblast) whole cell lysate at 20 µg

Lane 3:

Mouse testis tissue lysate at 20 µg

Lane 4:

Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 5:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Lane 6:

RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg

Lane 7:

Rat thymus tissue lysate at 20 µg

Lane 8:

C6 (rat glial tumor glial cell) whole cell lysate at 20 µg

Lane 9:

PC-12 (rat adrenal gland pheochromocytoma) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 98-100 kDa

false

Exposure time: 180s

• WB

Lab

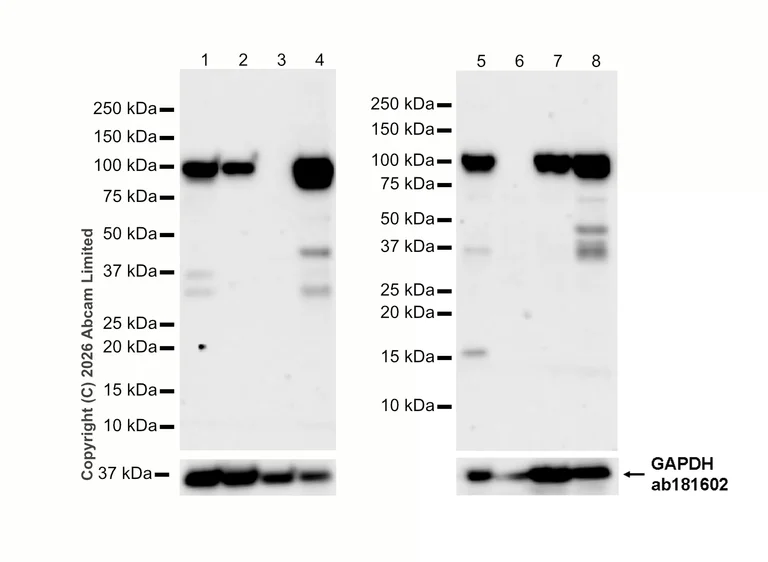

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] (<a href='/en-us/products/primary-antibodies/dynamin-2-antibody-epr90532abc-ab151555'>ab151555</a>) at 1/1000 dilution

Lane 1:

Mouse brain tissue lysate at 20 µg

Lane 2:

Mouse heart tissue lysate at 20 µg

Lane 3:

Mouse kidney tissue lysate at 20 µg

Lane 4:

Mouse spleen tissue lysate at 20 µg

Lane 5:

Rat brain tissue lysate at 20 µg

Lane 6:

Rat kidney tissue lysate at 20 µg

Lane 7:

Rat heart tissue lysate at 20 µg

Lane 8:

Rat spleen tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 98 kDa,36 kDa

false

Exposure time: 70s

• WB

Lab

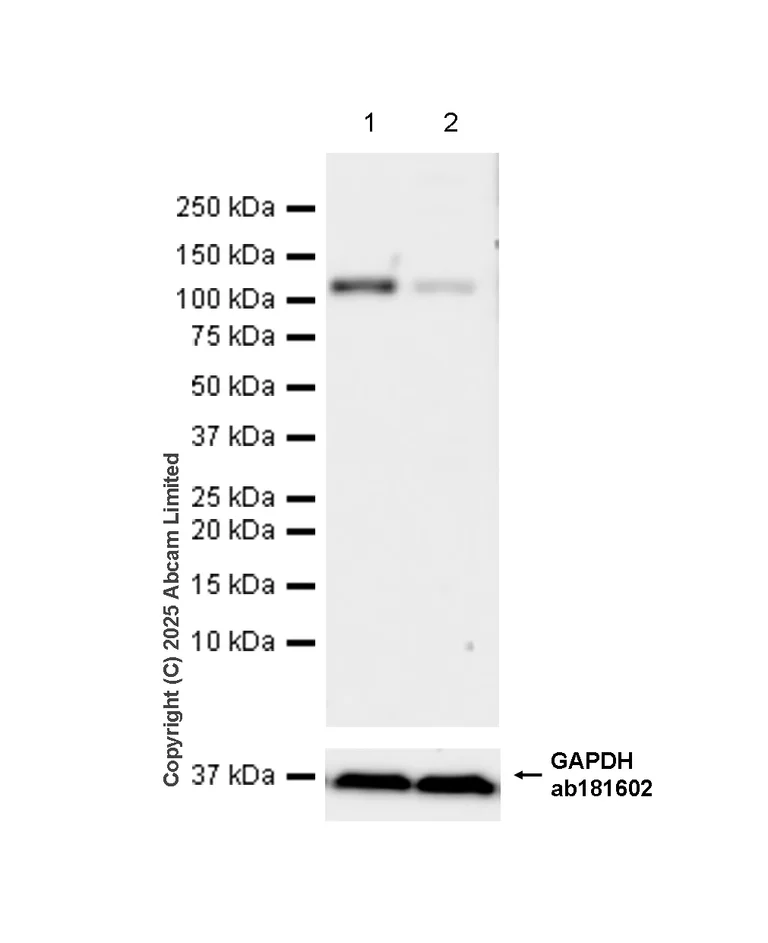

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] - BSA and Azide free (AB249002)

This data was developed using ab151555, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-Dynamin 2 antibody [EPR9053(2)(ABC)] (<a href='/en-us/products/primary-antibodies/dynamin-2-antibody-epr90532abc-ab151555'>ab151555</a>) at 1/1000 dilution

Lane 1:

NIH/3T3 (mouse embryonic fibroblast) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

NIH/3T3 transfected with siRNA specifically targeting DNM2 whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 98 kDa,36 kDa

false

Exposure time: 26s
