Rabbit Recombinant Monoclonal DYNLL1/PIN antibody. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 37 publications.


Images

Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (AB51603), expandable thumbnail
  • Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (AB51603), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-DYNLL1/PIN antibody [EP1660Y] (AB51603), expandable thumbnail
  • Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (AB51603), expandable thumbnail
  • Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (AB51603), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.21% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPWBICC/IFFlow Cyt (Intra)IHC-P
Human
Tested
Tested
Tested
Tested
Tested
Mouse
Expected
Tested
Expected
Expected
Expected
Rat
Expected
Tested
Expected
Expected
Expected
Drosophila melanogaster
Predicted
Predicted
Predicted
Predicted
Predicted

Tested
Tested

Species

Human

Dilution info

1/30

Notes

For unpurified use at 1/100.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Predicted
Predicted

Species

Drosophila melanogaster

Dilution info

-

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/1000 - 1/10000

Notes

-

Species

Rat

Dilution info

1/1000 - 1/10000

Notes

-

Species

Human

Dilution info

1/1000 - 1/10000

Notes

-

Predicted
Predicted

Species

Drosophila melanogaster

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/100 - 1/250

Notes

-

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Predicted
Predicted

Species

Drosophila melanogaster

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/2300

Notes

-

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Predicted
Predicted

Species

Drosophila melanogaster

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/500

Notes

The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Predicted
Predicted

Species

Drosophila melanogaster

Dilution info

-

Notes

-

Associated Products

Select an associated product type

1 product for Alternative Product

Target data

Function

Acts as one of several non-catalytic accessory components of the cytoplasmic dynein 1 complex that are thought to be involved in linking dynein to cargos and to adapter proteins that regulate dynein function (By similarity). Cytoplasmic dynein 1 acts as a motor for the intracellular retrograde motility of vesicles and organelles along microtubules (By similarity). May play a role in changing or maintaining the spatial distribution of cytoskeletal structures (By similarity). In addition to its role in cytoskeleton and transport, acts as a protein-protein adapter, which inhibits and/or sequesters target proteins (PubMed:10198631, PubMed:15193260, PubMed:15891768, PubMed:16684779, PubMed:30464262, PubMed:37696958). Involved in the response to DNA damage by acting as a key regulator of DNA end resection: when phosphorylated at Ser-88, recruited to DNA double-strand breaks (DSBs) by TP53BP1 and acts by disrupting MRE11 dimerization, thereby inhibiting DNA end resection (PubMed:30464262, PubMed:37696958). In a subset of DSBs, DYNLL1 remains unphosphorylated and promotes the recruitment of the Shieldin complex (PubMed:37696958). Binds and inhibits the catalytic activity of neuronal nitric oxide synthase/NOS1 (By similarity). Promotes transactivation functions of ESR1 and plays a role in the nuclear localization of ESR1 (PubMed:15891768, PubMed:16684779). Regulates apoptotic activities of BCL2L11 by sequestering it to microtubules (PubMed:10198631, PubMed:15193260). Upon apoptotic stimuli the BCL2L11-DYNLL1 complex dissociates from cytoplasmic dynein and translocates to mitochondria and sequesters BCL2 thus neutralizing its antiapoptotic activity (PubMed:10198631, PubMed:15193260).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal DYNLL1/PIN antibody. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 37 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EP1660Y

Purification technique

Affinity purification Protein A

Specificity

ab51603 recognizes DLC8.
The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

Epitope

The epitope for this antibody is on the N-terminus, AA2-14.

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle, Stable for 12 months at -20°C

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

  • Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    ab51603 (purified) at 1:30 dilution (2ug) immunoprecipitating DYNLL1/PIN in HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate.

    Lane 1 (input): HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate 10ug
    Lane 2 (+): ab51603 & HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate
    Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab51603 in HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate

    For western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used for detection at 1:1000 dilution.
    Blocking and diluting buffer: 5% NFDM/TBST.

    All lanes: Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Predicted band size: 10 kDa

  • Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

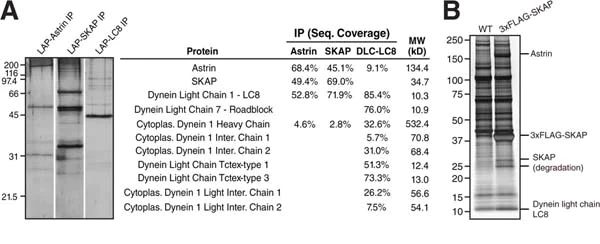

    Image from Schmidt JC et al. J Cell Biol. 2010 Oct 18;191(2):269-80. Epub 2010 Oct 11 Fig 2. DOI 10.1083/jcb.201006129.

    Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Unpurified ab51603 used in IP.SKAP and Astrin form a complex. (A, left) Silver-stained gels showing a one-step IP of GFPLAP-Astrin, GFPLAP-SKAP, or GFPLAP-LC8. (A, right) Data from the mass spectrometric analysis of the purifications indicating the percent sequence coverage from each IP. (B) Silver-stained gel showing the purification of FLAG-SKAP from chicken DT40 cells relative to controls. The indicated proteins were identified by excising them from a gel and analyzing them by mass spectrometry.

    All lanes: Immunoprecipitation - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Predicted band size: 10 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

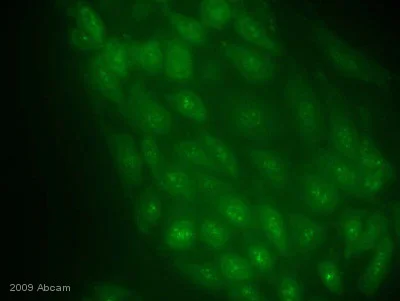

    This image is courtesy of an anonymous customer review.

    Immunocytochemistry/ Immunofluorescence - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Unpurified ab51603 staining DLC8 in mouse kidney cells cells by ICC/IF (immunocytochemistry/immunofluorescence. Cells were fixed with methanol, permeabilized with 0.1% Triton and blocked with 1% milk for 1 hour at room temperature. The sample was incubated with primary antibody (1/400; 1% milk in PBS) for 16 hours at 4°C. An Alexa Fluor®488-conjugated Goat polyclonal to rabbit IgG (1/1000) was used as secondary antibody.

  • Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

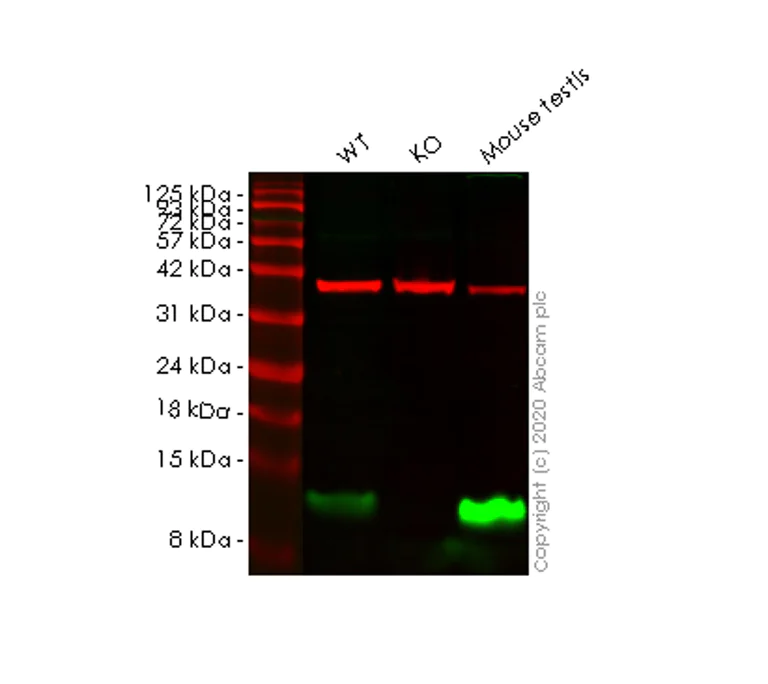

    Lanes 1-3: Merged signal (red and green). Green - ab51603 observed at 10 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.

    ab51603 Anti-DYNLL1/PIN antibody [EP1660Y] was shown to specifically react with DYNLL1/PIN in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human DYNLL1 (PIN) knockout HeLa cell line ab265265 (knockout cell lysate Human DYNLL1 (PIN) knockout HeLa cell lysate ab257414) was used. Wild-type and DYNLL1/PIN knockout samples were subjected to SDS-PAGE. ab51603 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603) at 1/1000 dilution

    Lane 1: Wild-type HeLa cell lysate at 20 µg

    Lane 2: DYNLL1 knockout HeLa cell lysate at 20 µg

    Lane 3: Mouse testis tissue lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

    Predicted band size: 10 kDa

    Observed band size: 10 kDa

  • Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

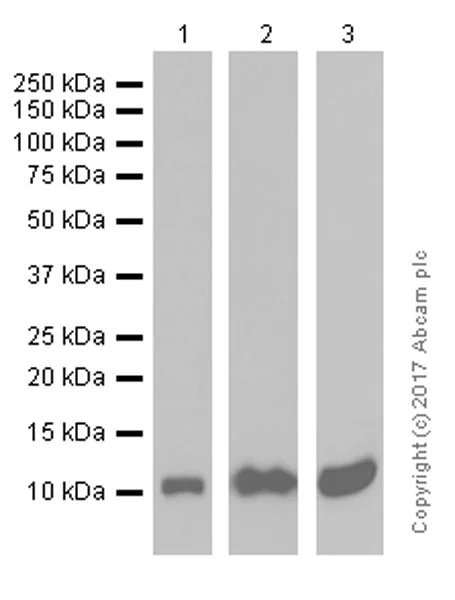

    Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Blocking and diluting buffer: 5% NFDM/TBST

    All lanes: Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603) at 1/10000 dilution

    Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 20 µg

    Lane 2: Mouse testis lysates at 20 µg

    Lane 3: Rat testis lysates at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 10 kDa

    Observed band size: 10 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

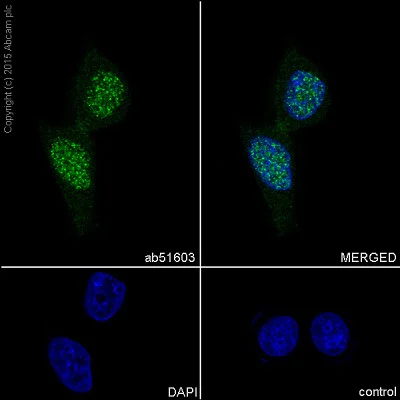

    Immunocytochemistry/ Immunofluorescence analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling DYNLL1/PIN with Purified ab51603 at 1:100 dilution (6.7μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG(Alexa Fluor® 488) was used as the secondary antibody at 1:1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  • Flow Cytometry (Intracellular) - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling DYNLL1/PIN (red) with purified ab51603 at a 1/2300 dilution. Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. A goat anti-rabbit IgG (Alexa Fluorr® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at a 1/2000 dilution. Black - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730). Blue (unlabeled control) - Cells without incubation with the primary and secondary antibodies.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Immunohistochemical staining of paraffin embedded human liver using unpurified ab51603 (1/100).

  • Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

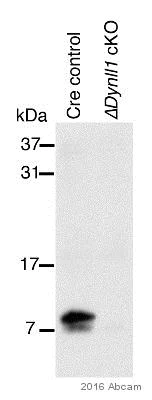

    This image is courtesy of a customer review submitted by Dr. Jörg Heierhorst

    Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    Lymphnodes were dissociated in PBS 2% FBS. Cell suspensions filtered through 70 μm and 40 μm cell strainers, and 300 x g pellets were lysed in modified RIPA buffer (150 mM NaCl, 20 mM Tris pH7.4, 1 mM EDTA, 1 mM EGTA, 10 mM NaF, 1% Triton X-100, 1% sodium deoxycholate, 0.1% SDS, 1 mM PMSF, 1 x protein inhibitor cocktail (Sigma)).

    All lanes: Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603) at 1/5000 dilution

    Lane 1: Primary mouse Mb1-Cre control Eµ-Myc B cell lymphoma (lysate of whole lymphnode)

    Lane 2: Primary mouse Mb1-Cre DYNLL1/PIN-conditional knockout Eµ-Myc B cell lymphoma (lysate of whole lymphnode)

    Secondary

    All lanes: HRP conjugated polyclonal goat IgG at 1/5000 dilution

    Performed under reducing conditions.

    Predicted band size: 10 kDa

    Observed band size: 10 kDa

    Exposure time: 10min

  • Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

    All lanes: Western blot - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603) at 1/10000 dilution

    All lanes: HeLa cell lysate at 10 µg

    Secondary

    All lanes: Goat anti-rabbit HRP at 1/2000 dilution

    Predicted band size: 10 kDa

    Observed band size: 10 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-DYNLL1/PIN antibody [EP1660Y] (ab51603)

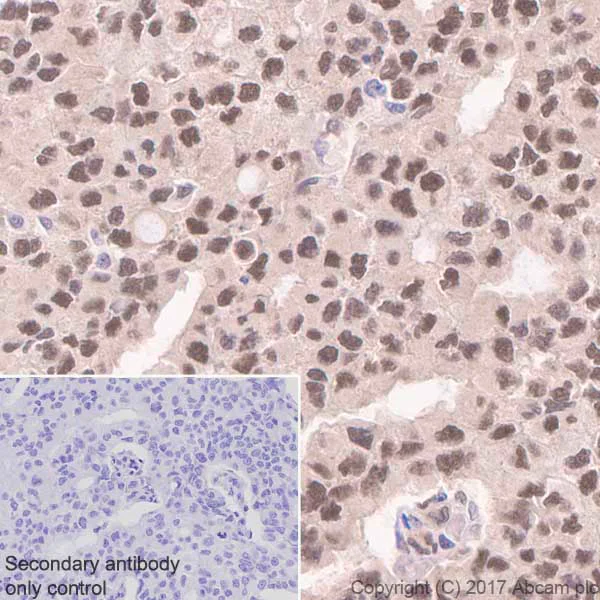

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human breast carcinoma tissue sections labeling DYNLL1/PIN with Purified ab51603 at 1:500 dilution (1.34 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control.
