Anti-Dystrophin antibody [EPR21189] - BSA and Azide free

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198 the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse skeletal muscle tissue staining Slow Skeletal Myosin Heavy chain with ab234431 at a 1/2500 dilution, A2BP1 with ab254413 at 1/2000 (0.26 µg/ml) dilution and Dystrophin with ab218198 at 1/5000 ( 0.110 µg/ml) dilution.

Panel A : merged staining of anti-Slow Skeletal Myosin Heavy chain (green; Opal™520), anti-A2BP1 (gray; Opal™570) and anti-Dystrophin (magenta; Opal™690) on mouse skeletal muscle.
Panel B : anti-Slow Skeletal Myosin Heavy chain staining slow type fibers in mouse skeletal muscle.
Panel C : anti-A2BP1 staining nucleus in mouse skeletal muscle.
Panel D : anti-Dystrophin staining membrane in mouse skeletal muscle.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab234431, ab254413 and ab218198 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution2) for 20 mins.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded (A) Cardiac muscle tissue from wild-type C57BL/6JGpt mice (B) Cardiac muscle tissue from DMD knockout mice staining with ab218198 at 1/5000 dilution and ready-to-use Goat Anti-Rabbit IgG H&L (HRP) secondary. Counterstaining with hematoxylin. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins. Positive staining on (A) Cardiac muscle tissue from wild-type C57BL/6JGpt mice and no staining on (B) Cardiac muscle tissue from DMD knockout mice. The section was incubated with ab218198 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND™ RX instrument The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and DMD-KO homozygous mice (Strain ID : T003035).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded (A) Skeletal muscle tissue from wild-type C57BL/6JGpt mice (B) Skeletal muscle tissue from DMD knockout mice staining with ab218198 at 1/5000 dilution and ready-to-use Goat Anti-Rabbit IgG H&L (HRP) secondary. Counterstaining with hematoxylin. Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins. Positive staining on (A) Skeletal muscle tissue from wild-type C57BL/6JGpt mice and no staining on (B) Skeletal muscle tissue from DMD knockout mice.The section was incubated with ab218198 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND™ RX instrument. The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and DMD-KO homozygous mice (Strain ID : T003035).The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and DMD-KO homozygous mice (Strain ID : T003035).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

Immunohistochemical analysis of paraffin-embedded rat colon tissue labeling Dystrophin with ab218198 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous and cytoplasmic staining in smooth muscle of rat colon (PMID : 18806224) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat-mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218198).

• IHC-Fr

Lab

Immunohistochemistry (Frozen sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

Immunohistochemical (Frozen sections) analysis of rat heart tissue useing ab218198 (1/50 dilution) to stain Dystrophin. ab150077 AlexaFluor®488 Goat anti-Rabbit (1/500) secondary used. DAPI used as a nuclear counter stain. Heat-mediated antigen retrieval using ab94681 (Tris/EDTA buffer, pH 9.0). Fixative 4% PFA, Permeabilisation with 0.2% Triton X-100.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218198).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

Immunohistochemical analysis of paraffin-embedded mouse cardiac muscle tissue labeling Dystrophin with ab218198 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on mouse cardiac muscle (PMID : 24793134) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat-mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218198).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

Immunohistochemical analysis of paraffin-embedded mouse skeletal muscle tissue labeling Dystrophin with ab218198 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Membranous staining on mouse skeletal muscle (PMID : 24793134) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat-mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218198).

• IHC-Fr

Lab

Immunohistochemistry (Frozen sections) - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

Immunohistochemical (Frozen sections) analysis of mouse heart tissue useing ab218198 (1/50 dilution) to stain Dystrophin. ab150077 AlexaFluor®488 Goat anti-Rabbit (1/500) secondary used. DAPI used as a nuclear counter stain. Heat-mediated antigen retrieval using ab94681 (Tris/EDTA buffer, pH 9.0). Fixative 4% PFA, Permeabilisation with 0.2% Triton X-100.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218198).

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198, the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse cardiac muscle tissue staining Titin with ab307446 at a 1/1000 ( 0.475 µg/ml) dilution, CTNNA3 with ab184916 at 1/2000 ( 0.942 µg/ml) dilution and Dystrophin with ab218198 at 1/5000 ( 0.110 µg/ml) dilution.

Panel A : merged staining of anti-Titin (gray; Opal™570), anti-CTNNA3 (green; Opal™520) and anti-Dystrophin (magenta; Opal™690) on mouse cardiac muscle.
Panel B : anti-Titin staining nucleus and cytoplasm in mouse cardiac muscle.
Panel C : anti-CTNNA3 staining intercalated discs in mouse cardiac muscle.
Panel D : anti-Dystrophin staining membrane in mouse cardiac muscle.

Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab307446, ab184916 and ab218198 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^° RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution2) for 20 mins.

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198 the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse cardiac muscle tissue staining Nav1.5 with ab300048 at a 1/1000 (5.12 µg/ml), dilution A2BP1 with ab254413 at 1/2000 (0.26 µg/ml) dilution and Dystrophin with ab218198 at 1/5000 ( 0.110 µg/ml) dilution.

Panel A : merged staining of anti-Nav1.5 (green; Opal™520), anti-A2BP1 (gray; Opal™570) and anti-Dystrophin (magenta; Opal™690) on mouse cardiac muscle.
Panel B : anti-Nav1.5 staining cytoplasm in mouse cardiac muscle.
Panel C : anti-A2BP1 staining nucleus in mouse cardiac muscle.
Panel D : anti-Dystrophin staining membrane in mouse cardiac muscle.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab300048, ab254413 and ab218198 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution2) for 20 mins.

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198, the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse skeletal muscle tissue staining SERCA1 ATPase with ab314660 at a 1/5000 (0.103 ug/ml) dilution, A2BP1 with ab254413 at 1/2000 (0.26 ug/ml) dilution and Dystrophin with ab218198 at 1/5000 ( 0.110 ug/ml) dilution.

Panel A : merged staining of anti-SERCA1 ATPase (green; Opal™520), anti-A2BP1 (gray; Opal™570) and anti-Dystrophin (magenta; Opal™690) on mouse skeletal muscle.
Panel B : anti-SERCA1 ATPase staining cytoplasm in mouse skeletal muscle.
Panel C : anti-A2BP1 staining nucleus in mouse skeletal muscle.
Panel D : anti-Dystrophin staining membrane in mouse skeletal muscle.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab314660, ab254413 and ab218198 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

• mIHC

Lab

Multiplex immunohistochemistry - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using ab218198 the same antibody clone in a different buffer formulation.

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse skeletal muscle tissue staining Nav1.5 with ab300048 at a 1/1000 (5.12 µg/ml) dilution, A2BP1 with ab254413 at 1/2000 (0.26 µg/ml) dilution and Dystrophin with ab218198 at 1/5000 ( 0.110 µg/ml) dilution.

Panel A : merged staining of anti-Nav1.5 (green; Opal™520), anti-A2BP1 (gray; Opal™570) and anti-Dystrophin (magenta; Opal™690) on mouse skeletal muscle.
Panel B : anti-Nav1.5 staining cytoplasm in mouse skeletal muscle.
Panel C : anti-A2BP1 staining nucleus in mouse skeletal muscle.
Panel D : anti-Dystrophin staining membrane in mouse skeletal muscle.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab300048, ab254413 and ab218198 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0 epitope retrieval solution2) for 20 mins.

• WB

Lab

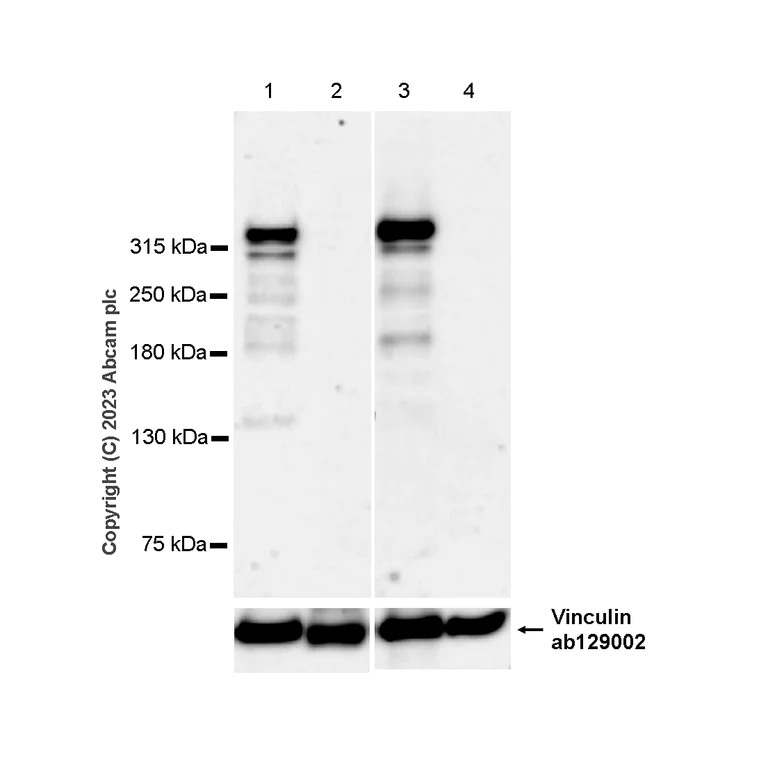

Western blot - Anti-Dystrophin antibody [EPR21189] - BSA and Azide free (AB230379)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218198). Blocking and diluting buffer and concentration : 5% NFDM/TBST. Exposure time : Lane 1-2 : 180 seconds; Lane 3-4 : 81 seconds. Negative control : mouse liver and rat liver. In Western blot, anti-Vinculin antibody (ab129002) staining at 1/10, 000 dilution. Samples are non-boiled as boiling may cause protein aggregation.

All lanes:

Western blot - Anti-Dystrophin antibody [EPR21189] (<a href='/en-us/products/primary-antibodies/dystrophin-antibody-epr21189-ab218198'>ab218198</a>) at 1/1000 dilution

Lane 1:

Mouse heart tissue lysate at 20 µg

Lane 2:

Mouse liver tissue lysate at 20 µg

Lane 3:

Rat heart tissue lysate at 20 µg

Lane 4:

Rat liver tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 427 kDa

Observed band size: 425 kDa
