AB123450

Anti-ECH1 antibody [3B7CF2AC8]

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse Monoclonal ECH1 antibody. Suitable for ICC/IF, Flow Cyt, WB, IHC-P and reacts with Human, Rat, Cow samples. Cited in 1 publication.

View Alternative Names

ECH1

4 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)
  • IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)

IHC image of ECH1 staining in Human normal heart muscle formalin fixed paraffin embedded tissue section, performed on a Leica BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab123450, 5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

Immunocytochemistry/ Immunofluorescence - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)

ab123450 at 1μg/ml staining ECH1 in 4% paraformaldehyde fixed and 0.1% Triton X-100 permeabilized HDFn cells by Immunocytochemistry followed by Alexa Fluor® 594 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1 hour (red). DAPI was used to stain the cell nuclei (blue).

Flow Cytometry - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)

ab123450 at 1μg/ml staining ECH1 in HDFn cells by Flow Cytometry (blue) or no primary antibody control (red).

Western blot - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)
  • WB

Unknown

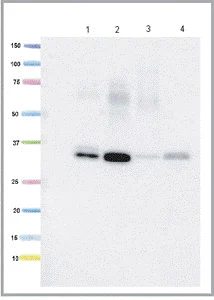

Western blot - Anti-ECH1 antibody [3B7CF2AC8] (AB123450)

All lanes:

Western blot - Anti-ECH1 antibody [3B7CF2AC8] (ab123450) at 1 µg/mL

Lane 1:

Human heart homogenate at 10 µg/mL

Lane 2:

Human liver homogenate at 10 µg/mL

Lane 3:

Rat heart homogenate at 10 µg/mL

Lane 4:

Cow heart homogenate at 10 µg/mL

Secondary

All lanes:

Goat-anti-Mouse HRP at 1/3000 dilution

Predicted band size: 36 kDa

false

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

3B7CF2AC8

Isotype

IgG2b

Light chain type

kappa

Carrier free

No

Reacts with

Rat, Cow, Human

Applications

IHC-P, Flow Cyt, ICC/IF, WB

applications

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1 µg/mL", "ICCIF-species-notes": "<p></p>", "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1 µg/mL", "FlowCyt-species-notes": "<p><a href='/en-us/products/primary-antibodies/mouse-igg2b-kappa-monoclonal-7e10g10-isotype-control-ab170192'>ab170192</a> - Mouse monoclonal IgG2b, is suitable for use as an isotype control with this antibody.</p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "5 µg/mL", "IHCP-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Cow": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "guaranteed", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1 µg/mL", "WB-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }
style
left-column

Product details

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com
style
left-column

Properties and storage information

Form
Liquid
Purity
IgG fraction
Purification notes
Purity is near homogeneity as judged by SDS-PAGE. ab123450 was produced in vitro using hybridomas grown in serum-free medium, and then purified by biochemical fractionation.
Storage buffer
pH: 7.5 Preservative: 0.02% Sodium azide Constituents: 99% HEPES buffered saline
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

ECH1 also known as Delta(35)-Delta(24)-dienoyl-CoA isomerase is a mitochondrial protein with a mass of approximately 31 kDa. It is expressed in a wide variety of tissues including high levels in the liver heart and muscle. This protein plays an important role in the beta-oxidation of unsaturated fatty acids inside mitochondria by catalyzing the conversion of 35-dienoyl-CoA to 24-dienoyl-CoA. Because of this function ECH1 contributes to the efficient metabolism of fatty acids.
Biological function summary

The ECH1 protein facilitates the breakdown and utilization of unsaturated fatty acids thereby providing energy for cellular processes. It acts independently and is not a part of a large protein complex. Mitochondria rely on ECH1 to handle specific intermediates in fatty acid metabolism which impacts how cells manage their energy resources. This makes ECH1 essential for maintaining energy homeostasis particularly during periods of increased metabolic demand.

Pathways

ECH1 is integral to the mitochondrial fatty acid beta-oxidation pathway. This pathway is important for converting fatty acids into acetyl-CoA units which then enter the Krebs cycle for further energy production. ECH1 interacts with other proteins like ACAA2 which contributes to the final step of fatty acid degradation. Alongside this it aligns with the peroxisomal biogenesis pathway influencing the balance between metabolic processes within mitochondria and peroxisomes.

ECH1 activity impacts conditions such as metabolic syndrome and inherited disorders of mitochondrial fatty acid oxidation including Medium-chain acyl-CoA dehydrogenase (MCAD) deficiency. Changes in the function or expression of ECH1 can lead to accumulation of fatty acid intermediates causing cellular dysfunction. In diseases where energy balance is disrupted like metabolic syndrome ECH1's interaction with proteins like HADHA which assists in the final steps of beta-oxidation becomes significant for understanding and potentially targeting treatments.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Isomerization of 3-trans,5-cis-dienoyl-CoA to 2-trans,4-trans-dienoyl-CoA.
See full target information Delta(3,5)-Delta(2,4)-dienoyl-CoA isomerase, mitochondrial
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Stem cell reviews and reports : PubMed41075148

2025

Transplantation of Human iPS Cell-derived Cerebral Cortical Neurons Promotes Fine Motor Recovery in a Female Mouse Model of Ischemic Stroke.

Applications

Unspecified application

Species

Unspecified reactive species

Hokuto Yamashita,Tetsuhiro Kikuchi,Yusaku Kodaka,Daisuke Doi,Megumi Ikeda,Jun Takahashi
