Anti-EGFR antibody [E234] - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-EGFR antibody [E234] - BSA and Azide free (AB227578)

Immunocytochemistry/ Immunofluorescence analysis of A431 (Human epidermoid carcinoma epithelial cell) cells labeling EGFR with purified ab32198 at 1/100 dilution (2.2 μg/mL). Cells were fixed in 100% Methanol. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/mL). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/mL) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32198).

• Flow Cyt (Intra)

Lab

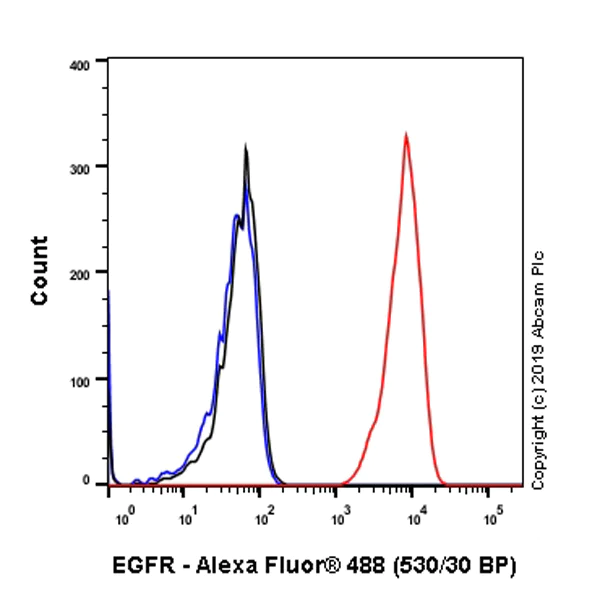

Flow Cytometry (Intracellular) - Anti-EGFR antibody [E234] - BSA and Azide free (AB227578)

Intracellular Flow Cytometry analysis of A431 (Human epidermoid carcinoma epithelial cell) cells labeling EGFR with purified ab32198 at 1/200 dilution (10μg/mL) (Red). Cells were fixed with 80% Methanol and permeabilised with 0.1% Tween-20. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue). This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32198).

• WB

Lab

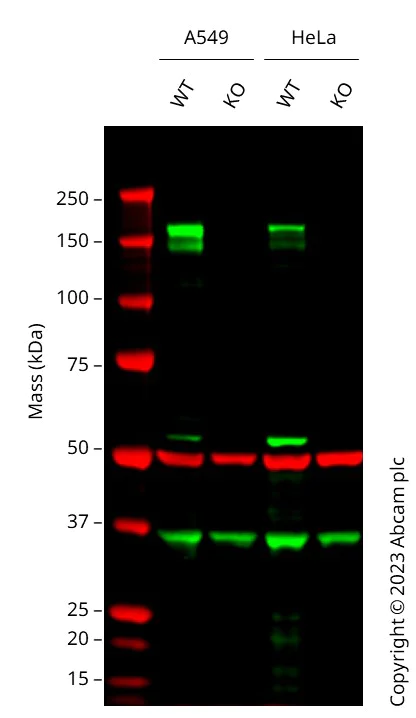

Western blot - Anti-EGFR antibody [E234] - BSA and Azide free (AB227578)

Western blot : Anti-EGFR antibody [E234] (ab32198) staining at 1/1000 dilution, shown in green; Mouse anti-Alpha Tubulin [DM1A] (ab7291) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab32198 was shown to bind specifically to EGFR. A band was observed at 160 kDa in wild-type cell lysates with no signal observed at this size in EGFR knockout cell lines. To generate this image, wild-type and EGFR knockout A549 (ab286394) and HeLa (ab255385) cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3% milk in TBS-0.1% Tween ^® 20 (TBS-T) before incubation with primary antibodies overnight at 4°C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32198).

All lanes:

Western blot - Anti-EGFR antibody [E234] (<a href='/en-us/products/primary-antibodies/egfr-antibody-e234-ab32198'>ab32198</a>) at 1/1000 dilution

Lane 1:

Wild-type A549 cell lysate at 20 µg

Lane 2:

Western blot - Human EGFR knockout A549 cell line (<a href='/en-us/products/cell-lines/human-egfr-knockout-a549-cell-line-ab286394'>ab286394</a>)

Lane 2:

EGFR knockout A549 cell lysate at 20 µg

Lanes 2 and 4:

Western blot - Human EGFR knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-egfr-knockout-hela-cell-line-ab255385'>ab255385</a>)

Lane 3:

Wild-type HeLa cell lysate at 20 µg

Lane 4:

EGFR knockout HeLa cell lysate at 20 µg

Observed band size: 160 kDa
