Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

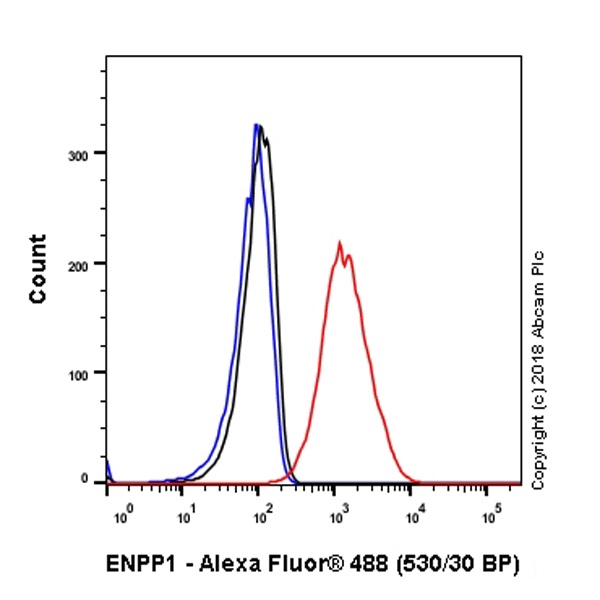

Flow Cytometry (Intracellular) - Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free (AB240832)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol permeabilized HepG2 (human liver hepatocellular carcinoma cell line) cells labeling ENPP1/PC1 with ab223268 (red) compared with a Rabbit monoclonal IgG isotype control (ab172730) (black)and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab223268).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free (AB240832)

Immunohistochemical analysis of paraffin-embedded human pancreas tissue stained for ENPP1/PC1 using ab223268 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Membranous staining on human pancreas (PMID : 9344668; PMID : 23861746) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab223268).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free (AB240832)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized MDA-MB-231 (human breast adenocarcinoma cell line) cells labeling ENPP1/PC1 (green) with ab223268 at 1/100 dilution, followed by AlexaFluor^®488 Goat anti-Rabbit secondary antibody (ab150077) at 1/1000 dilution. Confocal image showing membranous staining in MDA-MB-231 cells. Tubulin was detected using Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) at 1/200 dilution (Red). The nuclear countertsain was DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is AlexaFluor^®488 Goat anti-Rabbit (ab150077) at 1/200 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab223268).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free (AB240832)

Immunohistochemical analysis of paraffin-embedded human liver tissue stained for ENPP1/PC1 using ab223268 at 1/500 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Membranous staining on human liver (PMID : 25539584; PMID : 9344668; PMID : 23861746) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

Heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab223268).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free (AB240832)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HepG2 (human liver hepatocellular carcinoma cell line) cells labeling ENPP1/PC1 (green) with ab223268 at 1/100 dilution, followed by AlexaFluor®488 Goat anti-Rabbit secondary antibody (ab150077) at 1/1000 dilution. Confocal image showing membranous staining in HepG2 cells. Tubulin was detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889) at 1/200 dilution (red). The nuclear countertsain was DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is AlexaFluor^®488 Goat anti-Rabbit (ab150077) at 1/200 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab223268).

• IP

Supplier Data

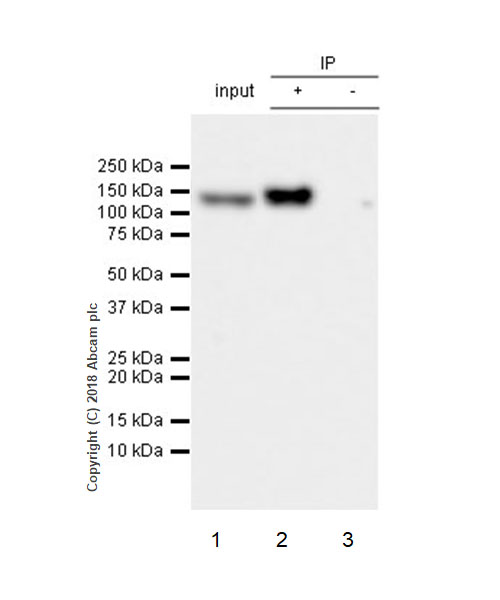

Immunoprecipitation - Anti-ENPP1/PC1 antibody [EPR22262-22] - BSA and Azide free (AB240832)

ENPP1/PC1 was immunoprecipitated from 0.35 mg of MDA-MB-231 (human breast adenocarcinoma cell line) whole cell lysate using ab223268 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab223268 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1/5000 dilution.

Lane 1 : MDA-MB-231 whole cell lysate 10μg (input)
Lane 2 : ab223268 IP in MDA-MB-231 whole cell lysate (+).
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab223268 in MDA-MB-231 whole cell lysate (-).

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 30 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab223268).

All lanes:

Immunoprecipitation - Anti-ENPP1/PC1 antibody [EPR22262-22] (<a href='/en-us/products/primary-antibodies/enpp1-pc1-antibody-epr22262-22-ab223268'>ab223268</a>)

Predicted band size: 105 kDa

Observed band size: 130 kDa
