Anti-Entactin/NID antibody [EPR22414-125]

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Immunohistochemical analysis of 4% paraformaldehyde fixed, 0.2% Triton X-100 permeabilized frozen mouse heart tissue labeling Entactin/NID with ab254325 at 1/500 dilution (green), followed by an AlexaFluor^®488 Goat anti-Rabbit secondary (ab150077) at 1/1000 dilution. Positive staining on the basement membrane of cardiac muscle (PMID : 12215539) is observed. The nuclear counterstain is DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is an AlexaFluor^®488 Goat anti-Rabbit secondary (ab150077) at 1/1000 dilution.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Immunohistochemical analysis of paraffin-embedded rat cardiac muscle tissue labeling Entactin/NID with ab254325 at 1/1000 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on basement membrane of rat cardiac muscle (PMID : 10958695). The section was incubated with ab254325 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Immunohistochemical analysis of 4% Paraformaldehyde fixed, 0.2% Triton X-100 permeabilized frozen rat heart tissue labeling Entactin/NID with ab254325 at 1/500 dilution (green), followed by an AlexaFluor^®488 Goat anti-Rabbit secondary (ab150077) at 1/1000 dilution. Positive staining on the basement membrane of cardiac muscle (PMID : 12215539) is observed. The nuclear counterstain is DAPI (Blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is an AlexaFluor^®488 Goat anti-Rabbit secondary (ab150077) at 1/1000 dilution.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Immunohistochemical analysis of paraffin-embedded mouse cardiac muscle tissue labeling Entactin/NID with ab254325 at 1/1000 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on basement membrane of mouse cardiac muscle (PMID : 10958695). The section was incubated with ab254325 for 10 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Unknown

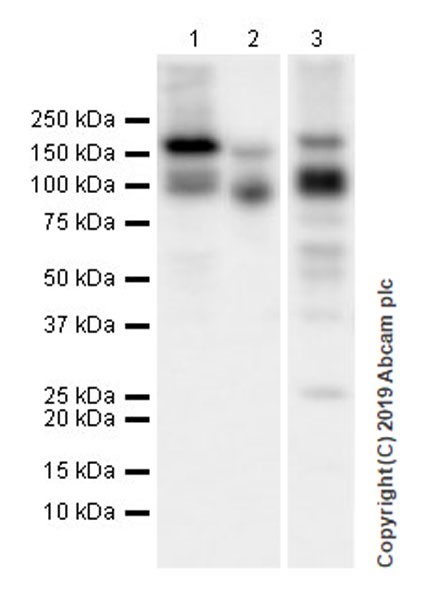

Western blot - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Blocking/diluting buffer and concentration : 5% NFDM/TBST

The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID : 3084254, 12215539, 22952693).

All lanes:

Western blot - Anti-Entactin/NID antibody [EPR22414-125] (ab254325) at 1/1000 dilution

Lane 1:

Human kidney tissue lysate at 20 µg

Lane 2:

Human skeletal muscle tissue lysate at 20 µg

Lane 3:

Human placenta tissue lysate at 20 µg

Secondary

All lanes:

Western blot - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/1000 dilution

Predicted band size: 136 kDa

Observed band size: 100 kDa,160 kDa

false

Exposure time: 8s

• WB

Unknown

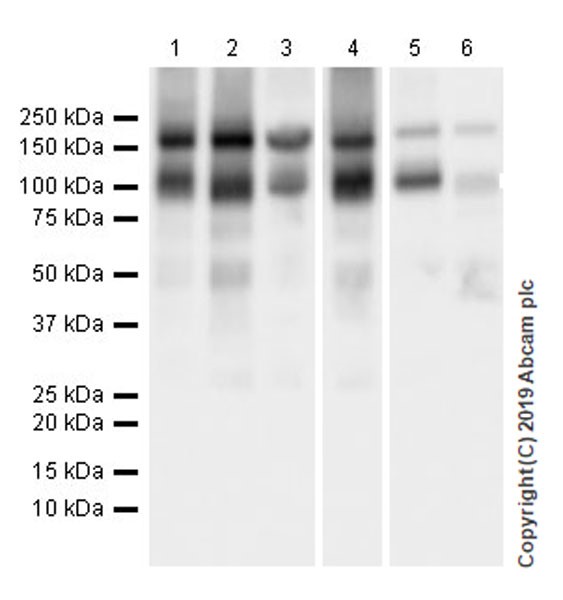

Western blot - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Blocking/diluting buffer and concentration : 5% NFDM/TBST

The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID : 3084254,12215539, 22952693).

All lanes:

Western blot - Anti-Entactin/NID antibody [EPR22414-125] (ab254325) at 1/1000 dilution

Lane 1:

Mouse heart tissue lysate at 20 µg

Lane 2:

Mouse lung tissue lysate at 20 µg

Lane 3:

Mouse skeletal muscle tissue lysate at 20 µg

Lane 4:

Mouse kidney tissue lysate at 20 µg

Lane 5:

Rat lung tissue lysate at 20 µg

Lane 6:

Rat skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 136 kDa

false

Exposure time: 3s

• WB

Unknown

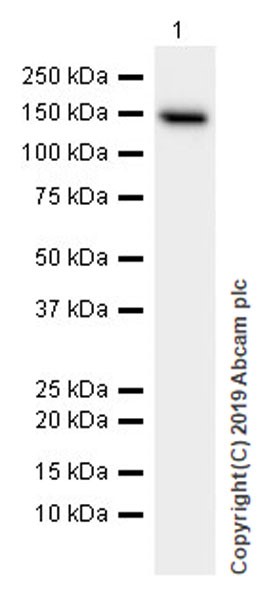

Western blot - Anti-Entactin/NID antibody [EPR22414-125] (AB254325)

Blocking/diluting buffer and concentration : 5% NFDM/TBST.

Exposure time : 15 seconds.

All lanes:

Western blot - Anti-Entactin/NID antibody [EPR22414-125] (ab254325) at 1/1000 dilution

All lanes:

Recombinant human Entactin/NID protein (aa29 -1114) 20 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 136 kDa

Observed band size: 130 kDa

false
