Anti-EpCAM antibody [323/A3]

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-EpCAM antibody [323/A3] (AB85987)

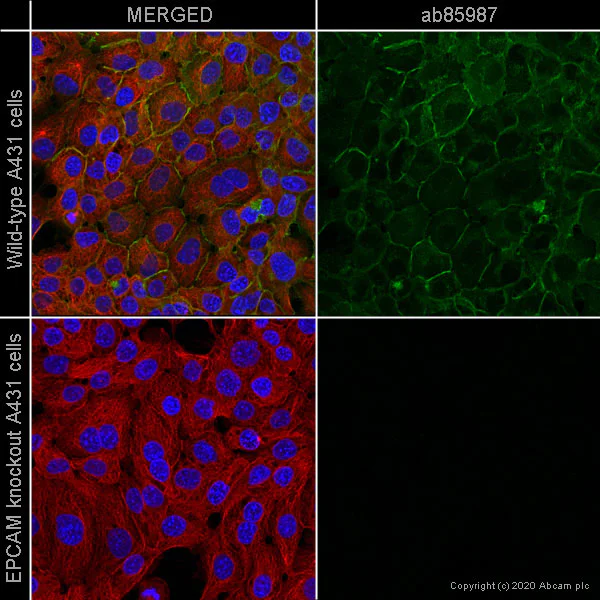

ab85987 staining EpCAM in wild-type A431 cells (top panel) and EpCAM knockout A431 cells (bottom panel). The cells were fixed with 4% paraformaldehyde (10 min) then permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab85987 at 0.1μg/ml concentration and ab6046 (Rabbit polyclonal to beta Tubulin) at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat secondary antibody to mouse IgG (Alexa Fluor^® 488) (ab150117) at 2 μg/ml (shown in green) and a goat secondary antibody to rabbit IgG (Alexa Fluor^® 594) (ab150080) at 2 μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI. This antibody performed similarly using 100% methanol fixation. Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a single confocal section is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-EpCAM antibody [323/A3] (AB85987)

ab85987 staining EpCAM in T47D positive cells (top panel) and HeLa negative cells (bottom panel). The cells were fixed with 4% paraformaldehyde (10 min) then permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab85987 at 0.1μg/ml concentration and ab6046 (Rabbit polyclonal to beta Tubulin) at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat secondary antibody to mouse IgG (Alexa Fluor^® 488) (ab150117) at 2 μg/ml (shown in green) and a goat secondary antibody to rabbit IgG (Alexa Fluor^® 594) (ab150080) at 2 μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI. This antibody performed similarly using 100% methanol fixation. Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a single confocal section is shown.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-EpCAM antibody [323/A3] (AB85987)

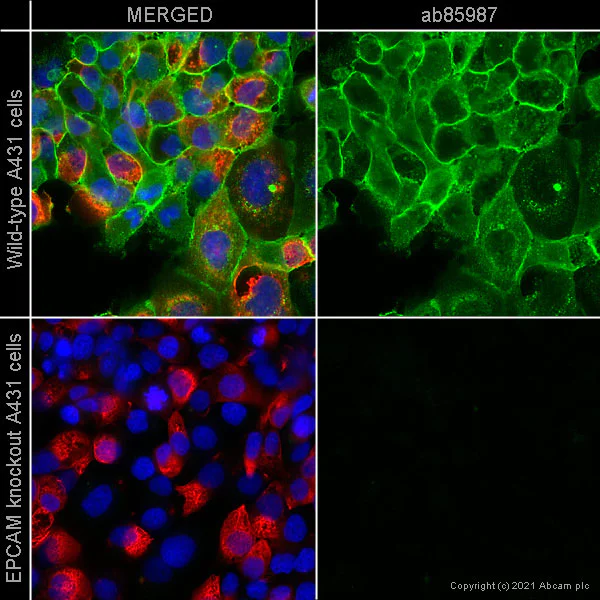

ab85987 staining EpCAM in wild-type A431 cells (top panel) and EpCAM knockout A431 cells (bottom panel). The cells were fixed with 100% methanol (5 min) then permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab85987 at 0.5μg/ml concentration and ab6046 (Rabbit polyclonal to beta Tubulin) at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat secondary antibody to mouse IgG (Alexa Fluor^® 488) (ab150117) at 2 μg/ml (shown in green) and a goat secondary antibody to rabbit IgG (Alexa Fluor^® 594) (ab150080) at 2 μg/ml (shown in red). Nuclear DNA was labelled in blue with DAPI.
Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

• Flow Cyt

Lab

Flow Cytometry - Anti-EpCAM antibody [323/A3] (AB85987)

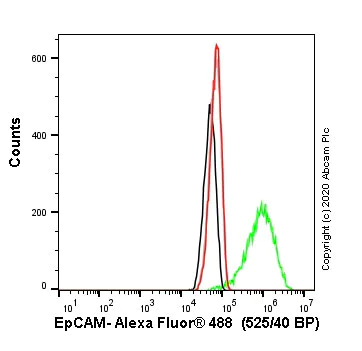

Flow cytometry overlay histogram showing wild-type A431 (green line) and EPCAM knockout A431 cells stained with ab85987 (red line). The cells were incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab85987) (1x10⁶ in 100μl at 0.2 μg/ml) for 30 min at 4°C.

The secondary antibody Goat anti-mouse IgG H&L (Alexa Fluor^® 488, pre-adsorbed) (ab150117) was used at 1/2000 for 30 min at 4°C.

Isotype control antibody was mouse IgG1κ (ab170190) used at the same concentration and conditions as the primary antibody (wild-type A431 - black line; EPCAM knockout A431 - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

• WB

Supplier Data

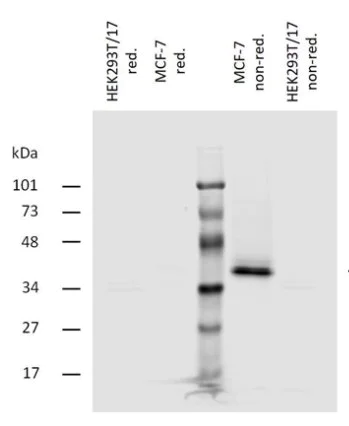

Western blot - Anti-EpCAM antibody [323/A3] (AB85987)

All lanes:

Western blot - Anti-EpCAM antibody [323/A3] (ab85987) at 2 µg/mL

Lane 1:

HEK293T/17 cell lysate (reducing)

Lane 2:

MCF7 cell lysate (reducing)

Lane 3:

HEK293T/17 cell lysate (non-reducing)

Lane 4:

MCF7 cell lysate (non-reducing)

Secondary

All lanes:

IRDye800-conjugated anti-mouse IgG1

Predicted band size: 35 kDa

Observed band size: 40 kDa
