Anti-EpCAM antibody [EGP40/1372] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-EpCAM antibody [EGP40/1372] - BSA and Azide free (AB218908)

Immumohistochemical analysis of formalin-fixed, paraffin-embedded human colorectal carcinoma tissue labeling EpCAM with ab218908 at 1 μg/ml.

• WB

Lab

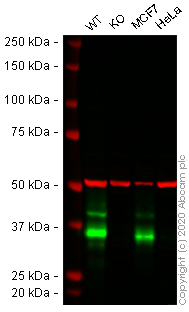

Western blot - Anti-EpCAM antibody [EGP40/1372] - BSA and Azide free (AB218908)

This data was developed using the same antibody clone in a different buffer formulation (ab218448).

Lanes 1 - 4 : Merged signal (red and green). Green - ab218448 observed at 35 kDa. Red - loading control, ab52866 (Rabbit anti-alpha Tubulin antibody [EP1332Y]) observed at 55kDa.

ab218448 was shown to react with EpCAM in A431 wild-type cells in western blot. Loss of signal was observed when EPCAM knockout sample was used. A431 wild-type and EPCAM knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% milk in TBS-T (0.1% Tween^®) before incubation with ab218448 and ab52866 (Rabbit anti-alpha Tubulin antibody [EP1332Y]) overnight at 4°C at 0.5 μg/ml and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-EpCAM antibody [EGP40/1372] (<a href='/en-us/products/primary-antibodies/epcam-antibody-egp40-1372-ab218448'>ab218448</a>) at 0.5 µg/mL

Lane 1:

Wild-type A431 cell lysate at 20 µg

Lane 2:

EPCAM knockout A431 cell lysate at 20 µg

Lane 3:

MCF7 cell lysate at 20 µg

Lane 4:

HeLa cell lysate at 20 µg

Predicted band size: 35 kDa

Observed band size: 35 kDa

false

• Protein Array

Unknown

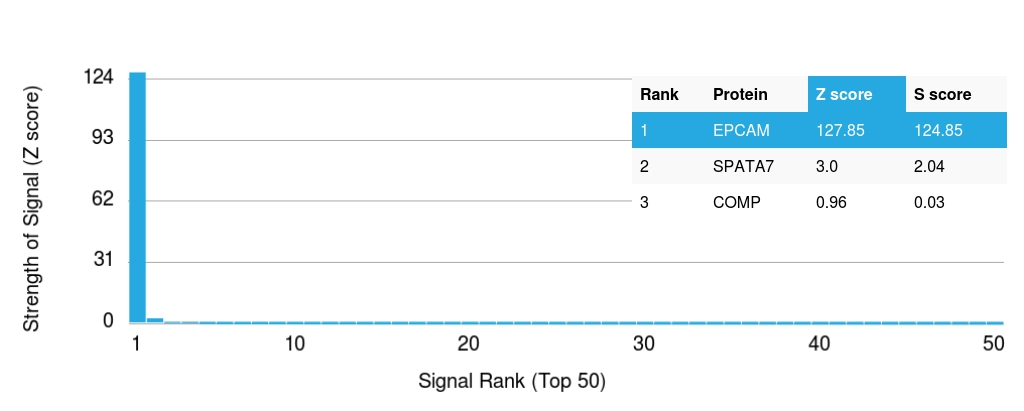

Protein Array - Anti-EpCAM antibody [EGP40/1372] - BSA and Azide free (AB218908)

This data was produced with ab218448, the same antibody in a different formulation with BSA and Azide.
ab218448 was tested in protein array against over 19000 different full-length human proteins.
Z- and S- Score : The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target.
A MAb is specific to its intended target if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.

• WB

Supplier Data

Western blot - Anti-EpCAM antibody [EGP40/1372] - BSA and Azide free (AB218908)

All lanes:

Western blot - Anti-EpCAM antibody [EGP40/1372] - BSA and Azide free (ab218908) at 1 µg/mL

Lane 1:

293 cell lysate

Lane 2:

A431 cell lysate

Lane 3:

HCT116 cell lysate

Predicted band size: 35 kDa

false
