Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric)

5 product images

•

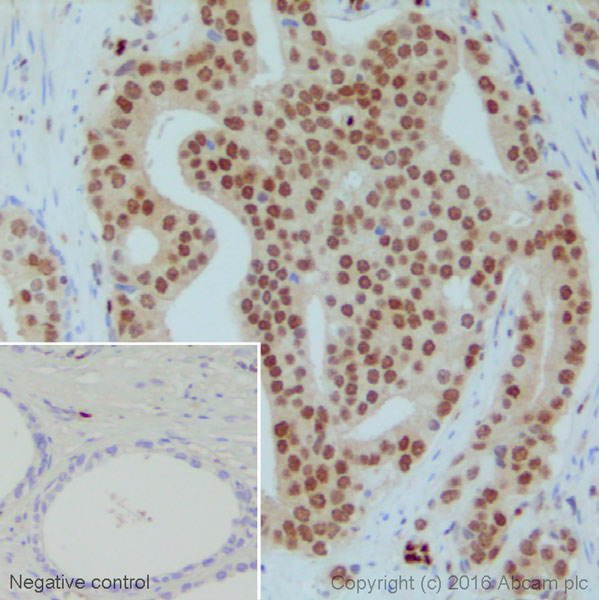

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341)

  IHC image of ERG staining in a section of formalin fixed, paraffin embedded human prostate cancer. The section was pre-treated using pressure cooker heat mediated antigen retrieval with Tris-EDTA (pH9). The section was incubated with unpurified ab214341, 0.16 μg/ml, for 30 mins at room temperature followed by an incubation with a ready to use anti mouse HRP polymer system for 15 mins at room temperature. The section was counterstained with haematoxylin and mounted with permanent mounting media. As a negative control (inset) the same assay was performed on a section of formalin fixed, paraffin embedded, normal human prostate.


  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

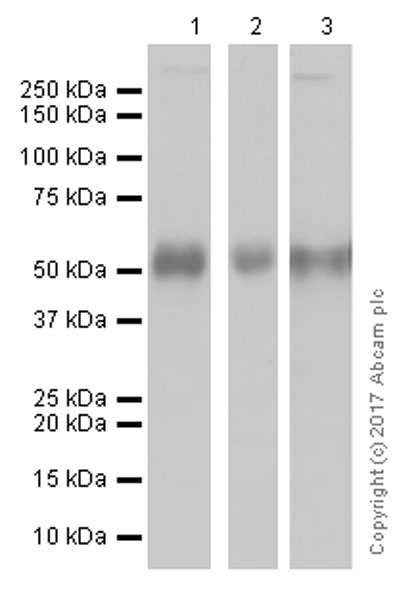

  Western blot - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341)

  Blocking and diluting buffer: 5% NFDM/TBST

  All lanes: Western blot - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341) at 1/1000 dilution

  Lane 1: Rat heart lysates at 20 µg

  Lane 2: Rat brain lysates at 20 µg

  Lane 3: Mouse brain lysates at 20 µg

  Secondary

  All lanes: Western blot - Rabbit Anti-Mouse IgG H&L (HRP) (Rabbit Anti-Mouse IgG H&L (HRP) ab6728) at 1/2000 dilution

  Predicted band size: 54 kDa

  Observed band size: 55 kDa

•

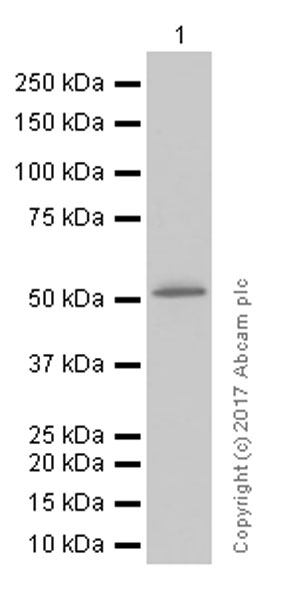

  Western blot - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341)

  Blocking and diluting buffer: 5% NFDM/TBST

  All lanes: Western blot - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341) at 1/5000 dilution

  All lanes: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 15 µg

  Secondary

  All lanes: Western blot - Rabbit Anti-Mouse IgG H&L (HRP) (Rabbit Anti-Mouse IgG H&L (HRP) ab6728) at 1/2000 dilution

  Predicted band size: 54 kDa

  Observed band size: 55 kDa

•

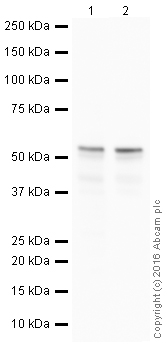

  Western blot - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341)

  This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab214341 (lane 1) and Anti-ERG antibody [EPR3864] ab92513 (lane 2) overnight at 4°C. Antibody binding was detected using an anti-mouse (lane 1) and anti-rabbit (lane 2) antibody conjugated to HRP, and visualised using ECL development solution ECL Substrate Kit (High Sensitivity) ab133406.

  All lanes: Western blot - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341) at 1 µg/mL

  All lanes: Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate at 10 µg

  Secondary

  Lane 1: Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/5000 dilution

  Lane 2: Peroxidase AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/50000 dilution

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 54 kDa

  Observed band size: 55 kDa

  Exposure time: 4min

•

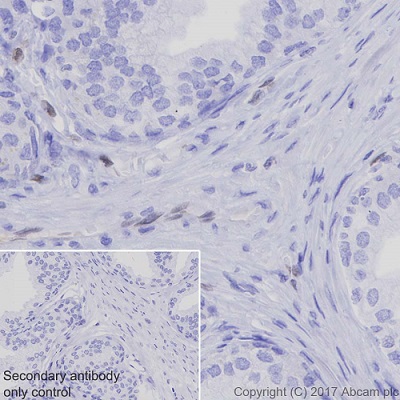

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ERG antibody [EPR3864] - Mouse IgG2b (Chimeric) (ab214341)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human prostatic hyperplasia tissue sections labeling ERG with purified ab214341 at 1:1000 dilution (1.39 μg/ml). Heat mediated antigen retrieval was performed using Perform heat mediated antigen retrieval using EDTA Buffer, pH9.0. Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control.
