Anti-ERK1 antibody [Y72]

19 product images

•

  Immunoprecipitation - Anti-ERK1 antibody [Y72] (ab32537)

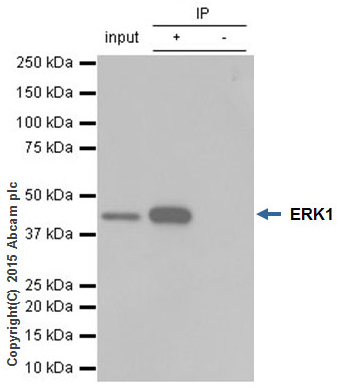

  ab32537 (purified) at a dilution of 1/20 immunoprecipitating ERK1 in Jurkat whole cell lysate.


  Lane 1 (input): Jurkat whole cell lysate (10μg)

  Lane 2 (+): ab32537 + Jurkat whole cell lysate.

  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab32537 in Jurkat whole cell lysate.

  For western blotting, VeriBlot for IP Detection Reagent (HRP) ab131366 VeriBlot for IP (HRP) was used for detection (1/10000).

  Blocking buffer and concentration: 5% NFDM/TBST.

  Diluting buffer and concentration: 5% NFDM /TBST.

  All lanes: Immunoprecipitation - Anti-ERK1 antibody [Y72] (ab32537)

  Predicted band size: 43 kDa

  Observed band size: 44 kDa

•

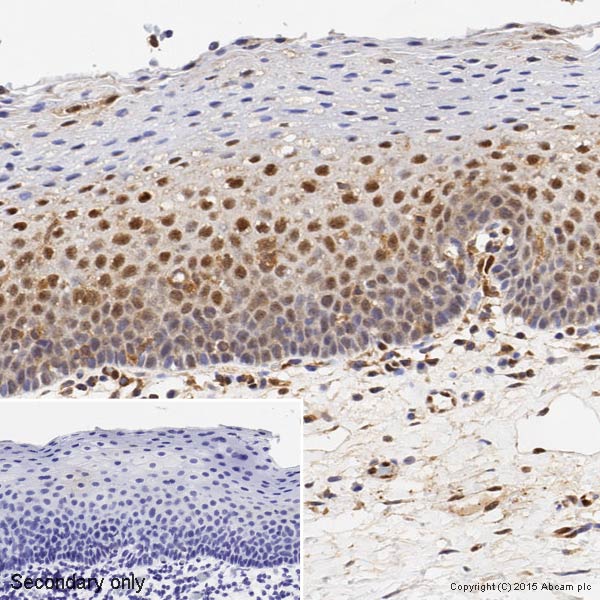

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ERK1 antibody [Y72] (ab32537)

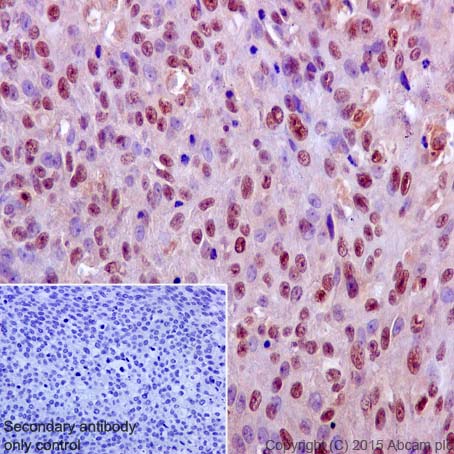

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cervix carcinoma tissue labelling ERK1 with purified ab32537 at a dilution of 1/50. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

•

  Immunocytochemistry/ Immunofluorescence - Anti-ERK1 antibody [Y72] (ab32537)

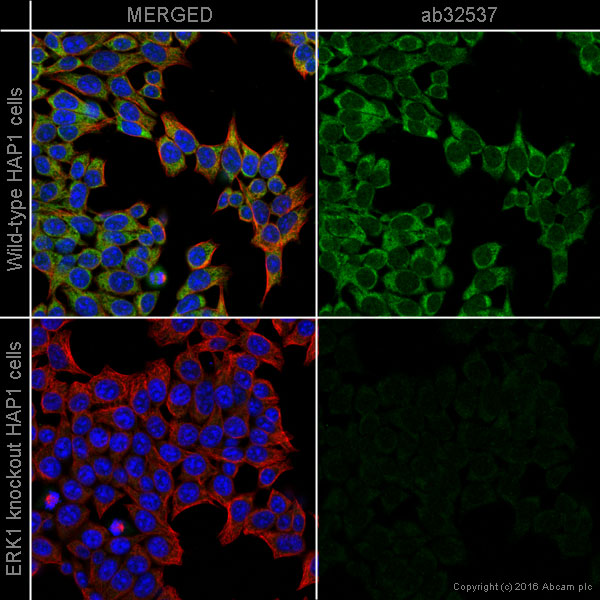

  ab32537 staining ERK1 in wild-type HAP1 cells (top panel) and ERK1 knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab32537 at 1/400 dilution and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 at 1ug/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) preadsorbed ab150117) at 2ug/ml (shown in pseudo-color red). Nuclear DNA was labelled in blue with DAPI.


  This product also gave a positive signal under the same testing conditions in HAP1 cells fixed with 4% formaldehyde (10 min).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

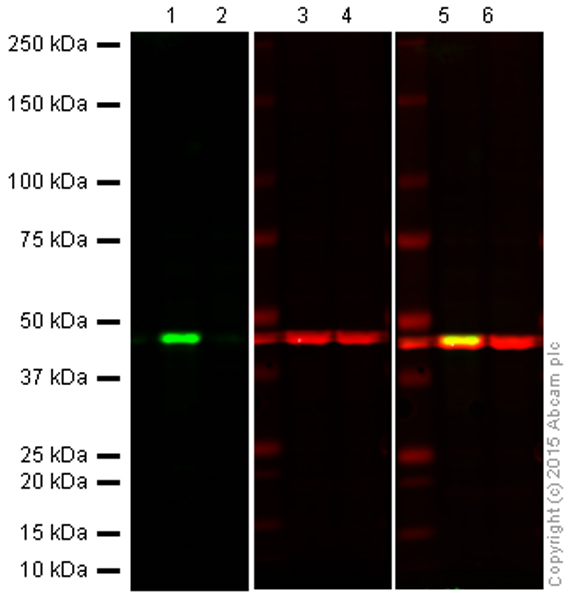

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Lanes 1, 3 and 5: Wild-type HAP1 cell lysate (20 μg)
  Lanes 2, 4 and 6: ERK1 knockout HAP1 cell lysate (20 μg)
  Lanes 1 and 2: Green signal from target - ab32537 observed at 42 kDa
  Lanes 3 and 4: Red signal from loading control - Anti-beta Actin antibody [mAbcam 8226] - Loading Control ab8226 observed at 42 kDa
  Lanes 5 and 6: Merged (red and green) signal
  ab32537 was shown to specifically react with ERK1 when ERK1 knockout samples were used.
  Wild-type and ERK1 knockout samples were subjected to SDS-PAGE. ab32537 and Anti-beta Actin antibody [mAbcam 8226] - Loading Control ab8226 (loading control to beta actin) were both diluted 1/1000 and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) andGoat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1/10000 dilution for 1 h at room temperature before imaging.

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Predicted band size: 43 kDa

•

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

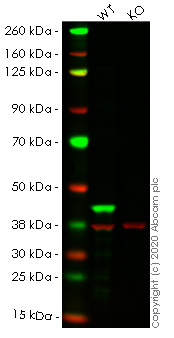

  Lanes 1- 2: Merged signal (red and green). Green - ab32537 observed at 43 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) observed at 37 kDa.


  ab32537 was shown to react with ERK1 in wild-type HEK-293T cells in western blot. Loss of signal was observed when knockout cell line Human MAPK3 (ERK1) knockout HEK-293T cell line ab266519 (knockout cell lysate Human MAPK3 (ERK1) knockout HEK-293T cell lysate ab257099) was used. Wild-type HEK-293T and MAPK3 knockout HEK-293T cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab32537 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537) at 1/1000 dilution

  Lane 1: Wild-type HEK-293T cell lysate at 20 µg

  Lane 2: MAPK3 knockout HEK-293T cell lysate at 20 µg

  Lane 2: Western blot - Human MAPK3 (ERK1) knockout HEK-293T cell line (Human MAPK3 (ERK1) knockout HEK-293T cell line ab266519)

  Performed under reducing conditions.

  Predicted band size: 43 kDa

  Observed band size: 43 kDa

•

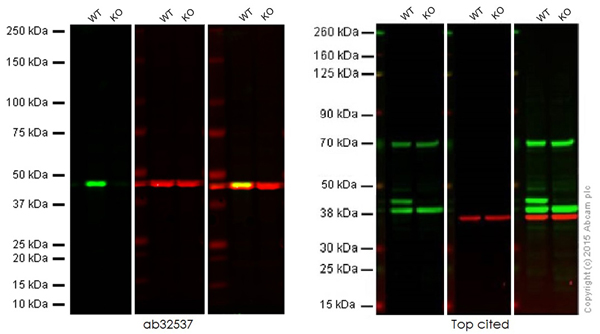

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Lanes 1, 3 and 5: Wild-type HAP1 cell lysate (20 μg)
  Lanes 2, 4 and 6: ERK1 knockout HAP1 cell lysate (20 μg)
  Lanes 1 and 2: Green signal from target
  Lanes 3 and 4: Red signal from loading control
  Lanes 5 and 6: Merged (red and green) signal


  Red - loading control, Anti-beta Actin antibody [mAbcam 8226] - Loading Control ab8226 observed at 42 kDa or Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa

  This western blot image is a comparison between ab32537 and a competitor's top cited rabbit polyclonal antibody.

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Predicted band size: 43 kDa

•

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Blocking and dilution buffer: 5% NFDM/TBST

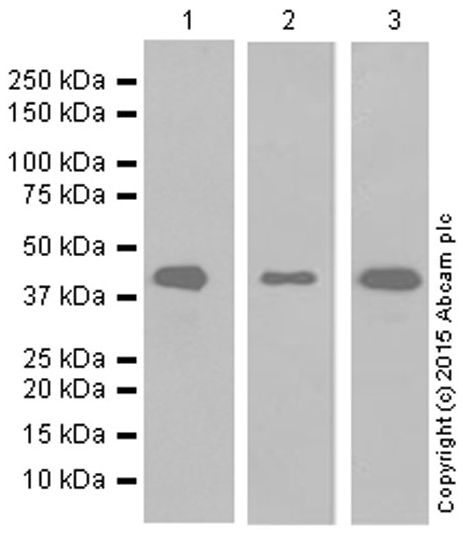

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537) at 1/10000 dilution

  Lane 1: 293T whole cell lysate at 10 µg

  Lane 2: HeLa whole cell lysate at 10 µg

  Lane 3: Jurkat whole cell lysate at 10 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 43 kDa

  Observed band size: 44 kDa

•

  Flow Cytometry (Intracellular) - Anti-ERK1 antibody [Y72] (ab32537)

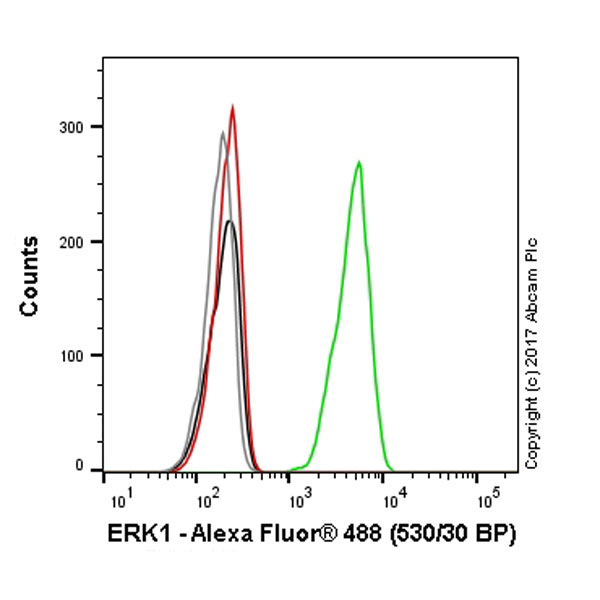

  Overlay histogram showing HAP1 wildtype (green line) and HAP1-MAPK3 knockout cells (red line) stained with ab32537. The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab32537, 1μg/ml) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution for 30 min at 22°C. A Rabbit IgG isotype control antibody (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) was used at the same concentration and conditions as the primary antibody (HAP1 wildtype - black line, HAP1-MAPK3 knockout - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity). Acquisition of >5,000 events were collected using a 50 mW Blue laser (488nm) and 530/30 bandpass filter.

•

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Blocking and dilution buffer: 5% NFDM/TBST

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537) at 1/1000 dilution

  All lanes: RAW264.7 whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/10000 dilution

  Predicted band size: 43 kDa

  Observed band size: 44 kDa

•

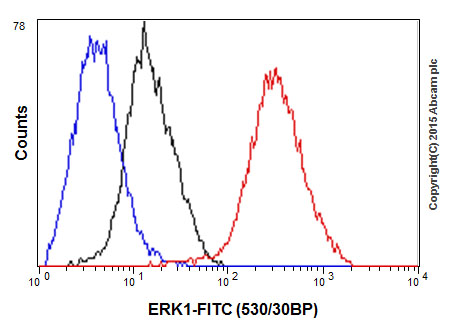

  Flow Cytometry (Intracellular) - Anti-ERK1 antibody [Y72] (ab32537)

  Intracellular Flow Cytometry analysis ofJurkat cells labelling ERK1 with purified ab32537 at a dilution of 1/30 (red). Cells were fixed with 4% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.


•

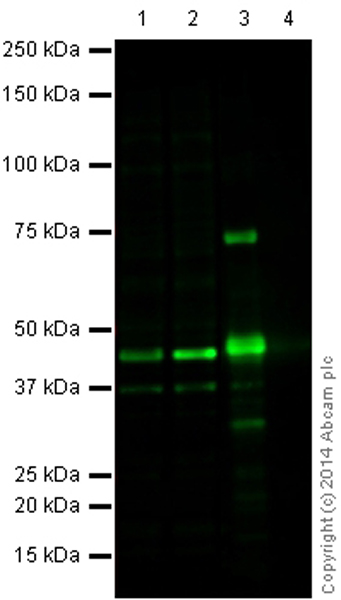

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using Licor blocking buffer before being incubated with ab32537 overnight at 4°C. Antibody binding was detected using a goat anti-rabbit Alexa Fluor^® 790 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) ab175781 at a 1:10,000 dilution for 1hr at room temperature and then imaged using the Licor Odyssey CLx.

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537) at 1/1000 dilution

  Lane 1: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 20 µg

  Lane 2: HEK293 (Human embryonic kidney cell line) Whole Cell Lysate at 20 µg

  Lane 3: Recombinant Human ERK1 protein (ab43623) (ab43623) at 20 µg

  Lane 4: Western blot - Recombinant Human ERK2 protein (Recombinant Human ERK2 protein ab43625) at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 790) ab175781) at 1/10000 dilution

  Predicted band size: 43 kDa

  Observed band size: 44 kDa

•

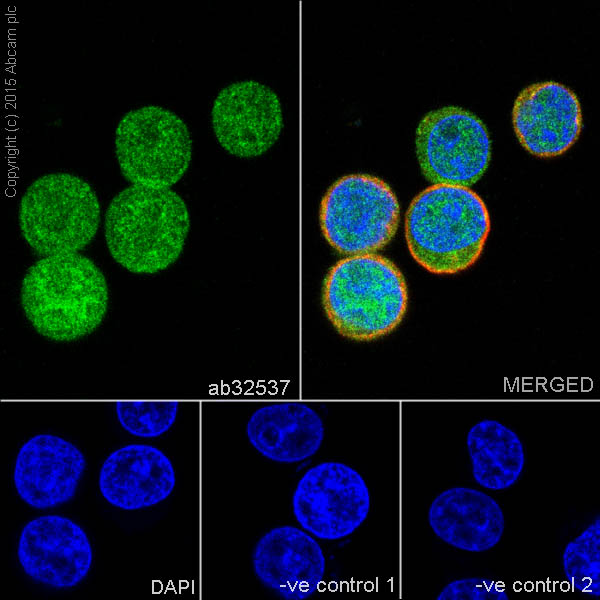

  Immunocytochemistry/ Immunofluorescence - Anti-ERK1 antibody [Y72] (ab32537)

  Immunocytochemistry/Immunofluorescence analysis of Jurkat cells labelling ERK1 with purified ab32537 at a dilution of 1/100. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin (1/1000) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000) were also used.


  Control 1: primary antibody (1/100) and secondary antibody, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000).

  Control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (1/1000) and secondary antibody, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000).

•

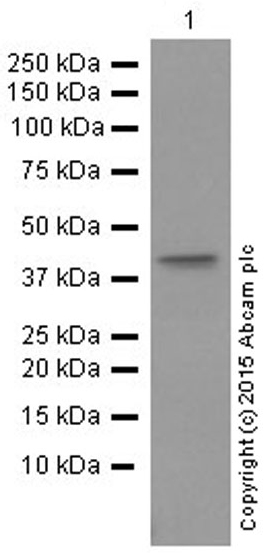

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

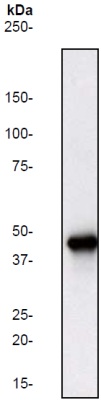

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537) at 1/1000 dilution

  All lanes: Jurkat cell lysate

  Predicted band size: 43 kDa

  Observed band size: 43 kDa

•

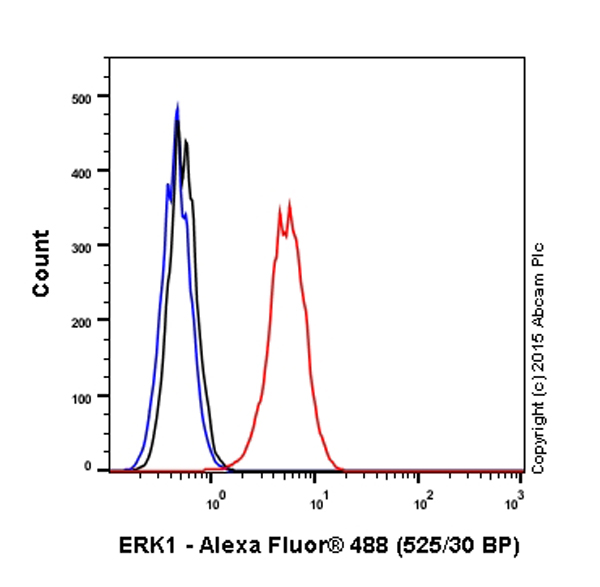

  Flow Cytometry (Intracellular) - Anti-ERK1 antibody [Y72] (ab32537)

  Overlay histogram showing HeLa cells stained with ab32537 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween 20 for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32537, 1/11312) for 30 min at 22°C. The secondary antibody used was Alexa Fluorr^® 488 goat anti-rabbit IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730, 0.01μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control.


  Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

  This antibody gave a positive signal in HeLa cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween 20 for 20 min used under the same conditions.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ERK1 antibody [Y72] (ab32537)

  IHC image of ab32537 staining ERK1 in Human tonsil formalin fixed paraffin embedded tissue sections, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab32537, 2μg/ml dilution, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the secondary only control (shown on the inset).
  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

  This image is courtesy of a customer review submitted by Kirk McManus.

  Immunocytochemistry/ Immunofluorescence - Anti-ERK1 antibody [Y72] (ab32537)

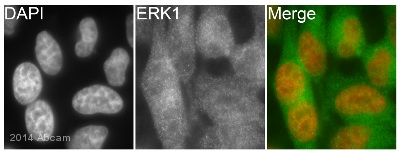

  Unpurified ab32537 staining ERK1 in HeLa cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde and permeabilized with 0.5% Triton X-100 in PBS. Samples were incubated with primary antibody (1/500 in PBS) for 1 hour at 22°C. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, a goat anti rabbit Alexa Fluor^® 488 (1/200) was used as the secondary antibody. Counterstained with DAPI. Cytoplasmic and nuclear staining shown.

•

  This image is courtesy of an anonymous customer review

  Flow Cytometry (Intracellular) - Anti-ERK1 antibody [Y72] (ab32537)

  Unpurified ab32537 staining ERK1 (green) in HEK293 cells by intracellular flow cytometry. Cells were fixed with paraformaldehyde and permeabilized with 70% methanol. The sample was incubated with the primary antibody (1/40 in PBS + 0.2% BSA + 0.1% sodium azide) for 1 hour at 22°C. A phycoerythrin-conjugated goat anti-rabbit IgG (1/100) was used as the secondary antibody. Gating Strategy: Live Cells. Purple plot represents isotype control.


•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ERK1 antibody [Y72] (ab32537)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human lung carcinoma tissue labelling ERK1 with unpurified ab32537.


  Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

•

  Western blot - Anti-ERK1 antibody [Y72] (ab32537)

  Blocking buffer and concentration: 5% NFDM/TBST.

  Diluting buffer and concentration: 5% NFDM/TBST.

  This blot was developed using a high sensitivity ECL substrate.

  Anti-GAPDH antibody [EPR16891] - Loading Control ab181602 was used as a loading control.

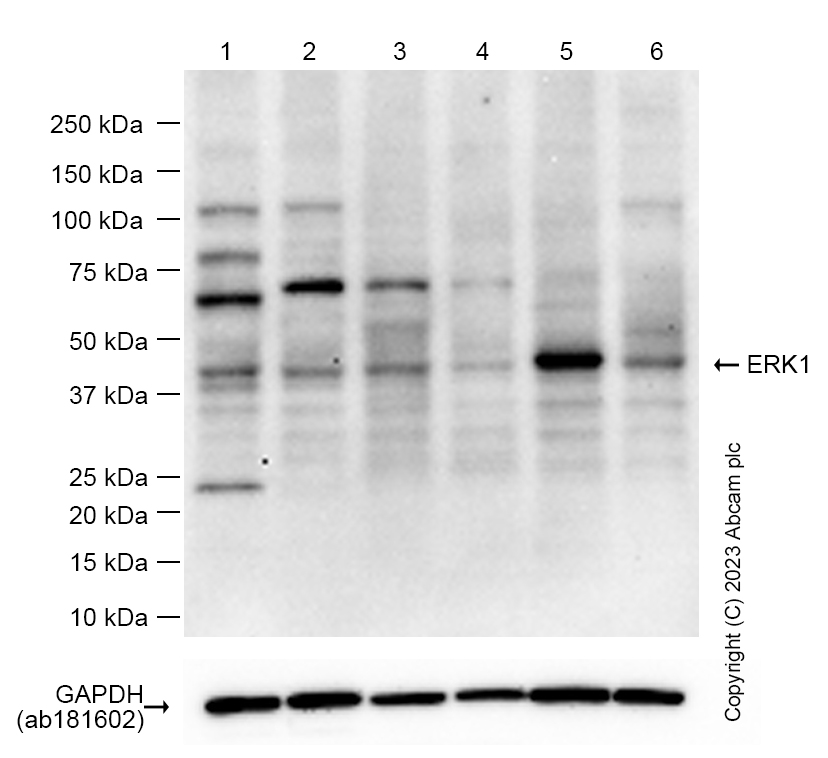

  All lanes: Western blot - Anti-ERK1 antibody [Y72] (ab32537) at 1/1000 dilution

  Lane 1: Mouse brain lysate at 20 µg

  Lane 2: Mouse heart lysate at 20 µg

  Lane 3: Mouse kidney lysate at 20 µg

  Lane 4: Mouse spleen lysate at 20 µg

  Lane 5: Raw 264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg

  Lane 6: NIH/3T3 (Mouse embryonic fibroblast) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 43 kDa

  Observed band size: 43 kDa

  Exposure time: 180s
