Anti-Estrogen Receptor alpha (phospho S118) antibody [E91]

9 product images

•

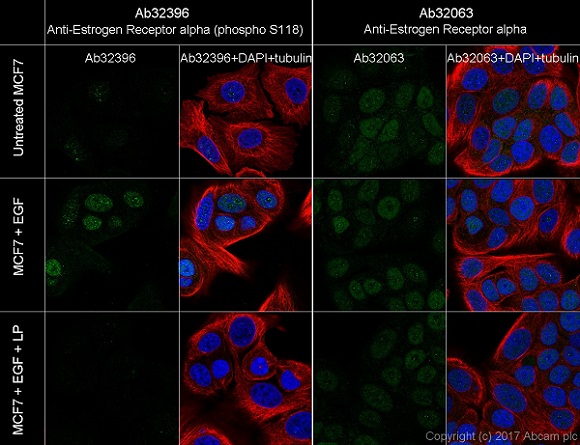

  Immunocytochemistry/ Immunofluorescence - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  Immunocytochemistry/ Immunofluorescence analysis of MCF7 (Human breast adenocarcinoma epithelial cell) treated with EGF (100ng/ml, 5min) and treated with Lambda Protein Phosphatase 31℃ for 2h cells labeling Estrogen receptor alpha (phospho S118) with purified ab32396 at 1:200 dilution (8.9μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1:200 (2.5 μg/ml). Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG(Alexa Fluor^® 488) was used as the secondary antibody at 1:1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

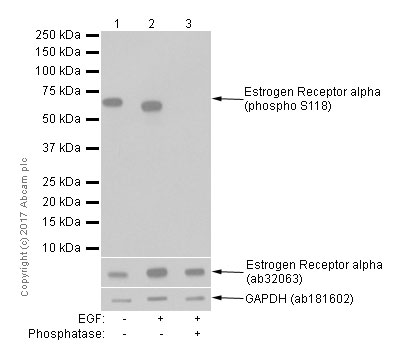

  Western blot - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST.

  All lanes: Western blot - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396) at 1/1000 dilution

  Lane 1: MCF-7 (Human breast adenocarcinoma epithelial cell) whole cell lysate at 15 µg

  Lane 2: MCF-7 (Human breast adenocarcinoma epithelial cell) treated with epidermal growth factor. Whole cell lysates at 15 µg

  Lane 3: MCF-7 (Human breast adenocarcinoma epithelial cell) treated with epidermal growth factor. Whole cell lysates. Then the membrane was incubated with phosphatase. at 15 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 66 kDa

  Observed band size: 60 kDa

  Exposure time: 5s

•

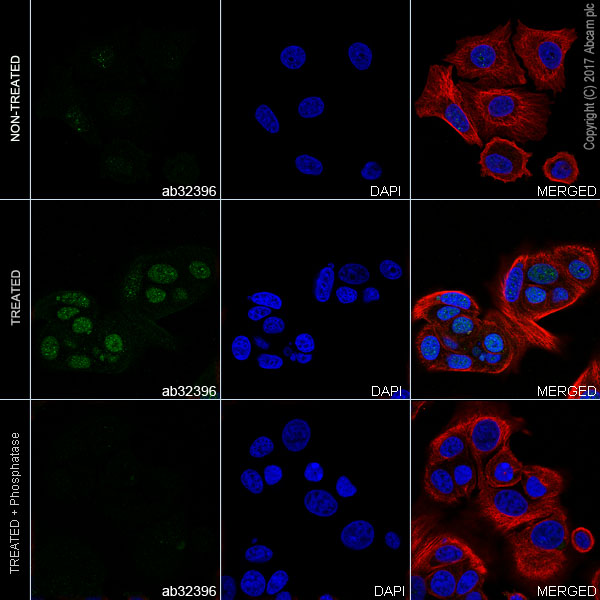

  Immunocytochemistry/ Immunofluorescence - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  Immunocytochemistry/ Immunofluorescence analysis of MCF7 (Human breast adenocarcinoma cell line) cells labeling Estrogen Receptor alpha (phospho S118) with unpurified ab32396 at 5 μg/ml (1/200 dilution). Cells were fixed with 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an AlexaFluor^®488 Goat anti-Rabbit was used as the secondary antibody at 2 μg/ml (1/1000 dilution). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)was used to counterstain at 2.5 μg/ml (1/200 dilution). DAPI nuclear counterstain.
  Confocal image showing the signal increased after EGF (100ng/ml, 5 min) treatment and decreased after Lambda Protein Phosphatase treatment (31°C for 2 hours).

•

  Dot Blot - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  Dot blot analysis of Lane 1: Estrogen Receptor alpha (pS118) phospho peptide and Lane 2: Estrogen Receptor alpha non-phospho peptide labeling Estrogen Receptor alpha (phospho S118) with unpurified ab32396 at 1/1000 dilution. 5% NFDM/TBST was used as the diluting and blocking buffer. Goat Anti-Rabbit IgG H&L (HRP) ab97051, Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated was used as the secondary antibody at 1/100000 dilution. Exposure time: 3 minutes.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  Immunofluorescent staining of (A) untreated and (B) Phosphatase-treated MCF-7 cells using unpurified ab32396.

•

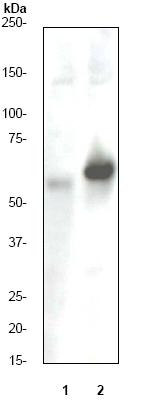

  Western blot - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  All lanes: Western blot - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396) at 1/1000 dilution

  Lane 1: MCF7 cell lysate (untreated).

  Lane 2: MCF7 cell lysate (treated with b-Estradiol and EGF).

  Predicted band size: 66 kDa

  Observed band size: 60 kDa

•

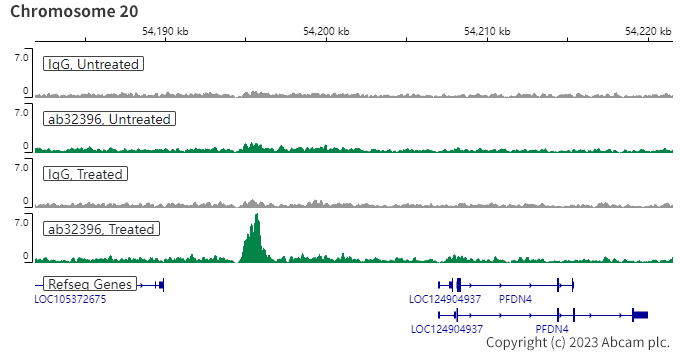

  ChIC/CUT&RUN sequencing - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 MCF7 (Human breast adenocarcinoma epithelial cell) cells treated with phenol red free medium and 5% charcoal stripped FBS for 3 days than treated with β-estradiol (10 nM 45 min) and 5 µg of ab32396 [E91]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

•

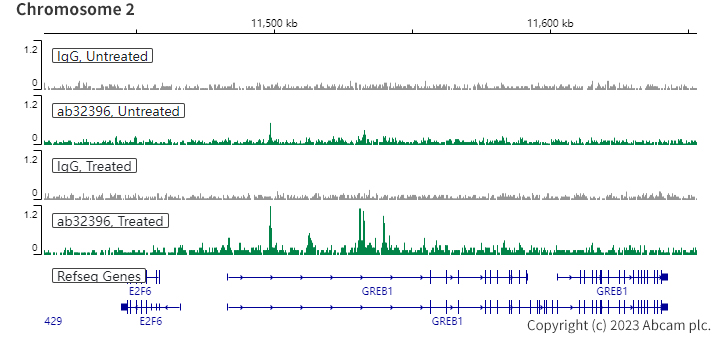

  ChIC/CUT&RUN sequencing - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 MCF7 (Human breast adenocarcinoma epithelial cell) cells treated with phenol red free medium and 5% charcoal stripped FBS for 3 days than treated with β-estradiol (10 nM 45 min) and 5 µg of ab32396 [E91]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

•

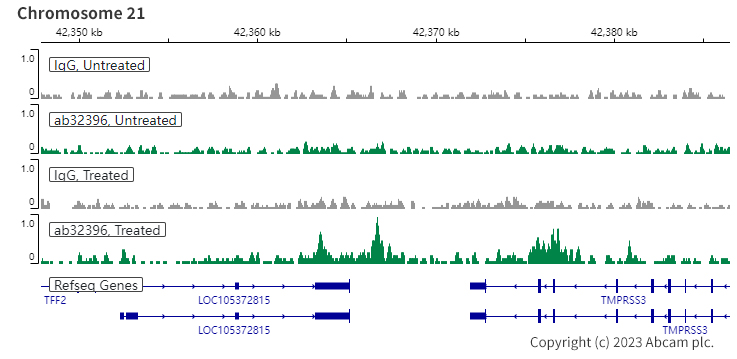

  ChIC/CUT&RUN sequencing - Anti-Estrogen Receptor alpha (phospho S118) antibody [E91] (ab32396)

  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 MCF7 (Human breast adenocarcinoma epithelial cell) cells treated with phenol red free medium and 5% charcoal stripped FBS for 3 days than treated with β-estradiol (10 nM 45 min) and 5 µg of ab32396 [E91]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."
