Anti-Exportin-5 antibody [2C5-1B3]

5 product images

•

  Immunoprecipitation - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

  Exportin-5 was immunoprecipitated using 0.5mg Hek293 whole cell extract, 10μg of Mouse monoclonal to Exportin-5 and 50μl of protein G magnetic beads (+). No antibody was added to the control (-).
  The antibody was incubated under agitation with Protein G beads for 10min, Hek293 whole cell extract lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.
  Proteins were eluted by addition of 40μl SDS loading buffer and incubated for 10min at 70^oC; 10μl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab57491.
  Secondary: Goat polyclonal to mouse IgG light chain specific (HRP) at 1/5000 dilution.
  Band: 140kDa: Exportin-5; non specific - 65kDa: We are unsure as to the identity of this extra band.


  This image was generated using the ascites version of the product.

  All lanes: Immunoprecipitation - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

  Predicted band size: 136 kDa

•

  Western blot - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

  Exportin-5 antibody (ab57491) at 1ug/lane + HeLa cell lysate at 25ug/lane.


  This image was generated using the ascites version of the product.

  All lanes: Western blot - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

  Predicted band size: 136 kDa

•

  Flow Cytometry - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

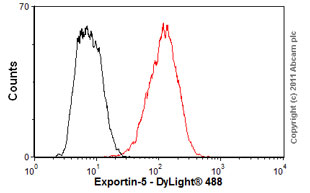

  Overlay histogram showing HEK293 cells stained with ab57491 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab57491, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.



  This image was generated using the ascites version of the product.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

  IHC image of ab57491 staining in normal human testis formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab57491, 5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.



  This image was generated using the ascites version of the product.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Exportin-5 antibody [2C5-1B3] (ab57491)

  ICC/IF image of ab57491 stained HeLa cells. The cells were 4% formaldehyde (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab57491, 10μg/ml) overnight at +4°C. The secondary antibody (green) was Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879 Dylight 488 goat anti-mouse IgG (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.



  This image was generated using the ascites version of the product.
