Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded human pancreas tissue labeling Ferritin Light Chain with ab218866 at 0.2 μg/ml.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

Immunohistochemical analysis of formalin-fixed, paraffin-embedded human pancreas tissue labeling Ferritin Light Chain with ab218866 at 0.2 μg/ml.

• WB

Lab

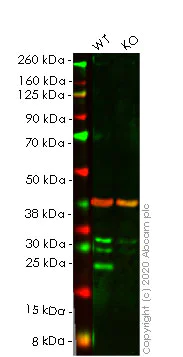

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

This data was developed using the same antibody clone in a different buffer formation (ab218400)

Lanes 1-2 : Merged signal (red and green). Green - ab218400 observed at 20 kDa. Red - loading control ab181602 observed at 37 kDa.

ab218400 Anti-FTL was shown to specifically react with Ferritin in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab265533 (knockout lysate ab256926) was used. Wild-type and FTL knockout samples were subjected to SDS-PAGE. ab218400 and Anti-GAPDH antibody[EPR16891] - Loading Control (ab181602) were incubated overnight at 4° at 1 in 500 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preadsorbed (ab216772)and Goat Anti-Rabbit IgG H&L (IRDye^® 680RD) preadsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] (<a href='/en-us/products/primary-antibodies/ferritin-light-chain-antibody-ftl-1386-ab218400'>ab218400</a>) at 1/500 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

FTL knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human FTL knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-ftl-knockout-hela-cell-line-ab265533'>ab265533</a>)

Secondary

All lanes:

Western blot - Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-800cw-preadsorbed-ab216772'>ab216772</a>) at 1/20000 dilution

Predicted band size: 20 kDa

Observed band size: 20 kDa

false

• WB

Lab

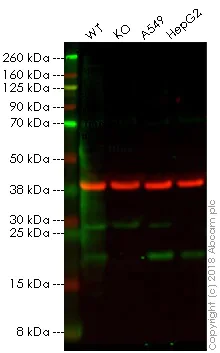

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

This data was developed using the same antibody clone in a different buffer formulation (ab218400).

Lanes 1 - 4 : Merged signal (red and green). Green - ab218400 observed at 20 kDa. Red - loading control, ab181602, observed at 37 kDa.

ab218400 was shown to recognize Ferritin Light Chain in wild-type HAP1 cells as signal was lost at the expected MW in FTL (Ferritin Light Chain) knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and FTL (Ferritin Light Chain) knockout samples were subjected to SDS-PAGE. ab218400 and ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (ab218866) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

FTL (Ferritin Light Chain) knockout HAP1 whole cell lysate at 20 µg

Lane 3:

A549 whole cell lysate at 20 µg

Lane 4:

Hep G2 whole cell lysate at 20 µg

Predicted band size: 20 kDa

false

• WB

Lab

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

This data was developed using the same antibody clone in a different buffer formulation (ab218400).

Lanes 1- 2 : Merged signal (red and green). Green - ab218400 observed at 20 kDa. Red - Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab52866) observed at 50 kDa.

ab218400 was shown to react with Ferritin Light Chain in wild-type HeLa cells in western blot. Loss of signal was observed when knockout cell line ab265534 (knockout cell lysate ab256927) was used. Wild-type HeLa and FTL knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab218400 and Anti-alpha Tubulin antibody [EP1332Y] - Microtubule Marker (ab52866) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^®800CW) preadsorbed (ab216772) and Goat Anti-Rabbit IgG H&L (IRDye^®680RD) preadsorbed (ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] (<a href='/en-us/products/primary-antibodies/ferritin-light-chain-antibody-ftl-1386-ab218400'>ab218400</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

FTL knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human FTL knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-ftl-knockout-hela-cell-line-ab265534'>ab265534</a>)

Predicted band size: 20 kDa

Observed band size: 20 kDa

false

• WB

Supplier Data

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

All lanes:

Western blot - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (ab218866) at 0.2 µg/mL

Lane 1:

A431 cell lysate

Lane 2:

HeLa cell lysate

Lane 3:

Human liver lysate

Lane 4:

Human testis lysate

Predicted band size: 20 kDa

false

• Protein Array

Unknown

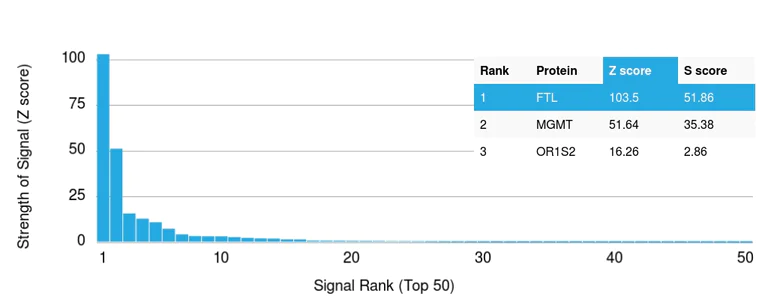

Protein Array - Anti-Ferritin Light Chain antibody [FTL/1386] - BSA and Azide free (AB218866)

This data was produced with ab218400, the same antibody in a different formulation with BSA and Azide.
ab218400 was tested in protein array against over 19000 different full-length human proteins.
Z- and S- Score : The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target.
A MAb is specific to its intended target if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.
