Anti-FGF2 antibody [EPR20145-219] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-FGF2 antibody [EPR20145-219] - BSA and Azide free (AB271983)

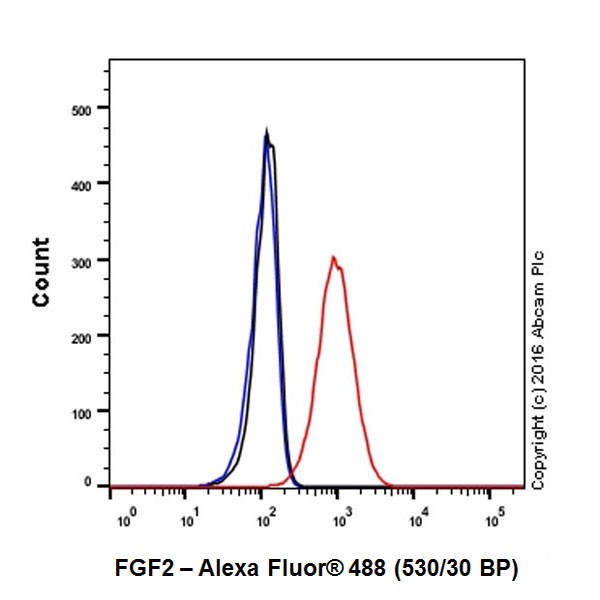

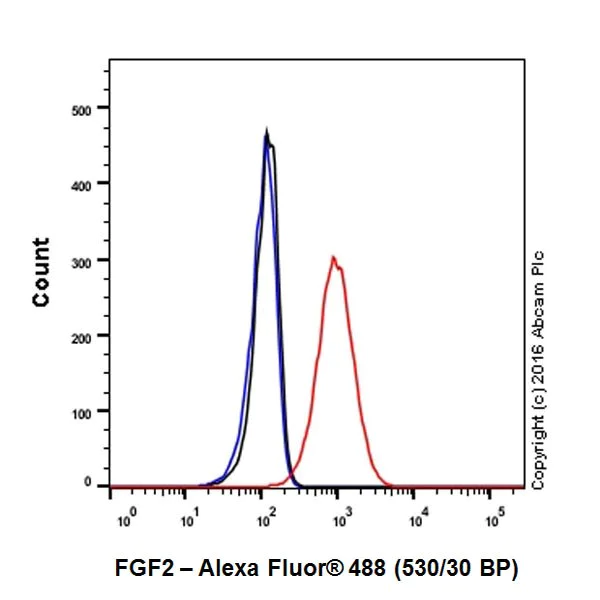

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed K562 (Human chronic myelogenous leukemia cell line from bone marrow) cells labeling FGF2 with ab208687 at 1/600 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab208687).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-FGF2 antibody [EPR20145-219] - BSA and Azide free (AB271983)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) cells labeling FGF2 with ab208687 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing nuclear and weak cytoplasmic staining on U-87 MG cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab208687).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-FGF2 antibody [EPR20145-219] - BSA and Azide free (AB271983)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized SK-OV-3 (Human ovarian cancer cell line) cells labeling FGF2 with ab208687 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing nuclear weak cytoplasmic staining on SK-OV-3 cell line.

The nuclear counterstain is DAPI (blue). Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab208687).

• IP

Supplier Data

Immunoprecipitation - Anti-FGF2 antibody [EPR20145-219] - BSA and Azide free (AB271983)

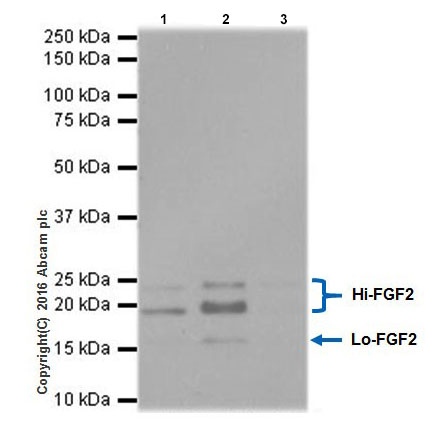

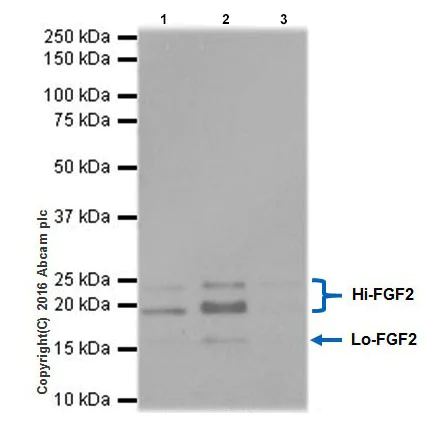

FGF2 was immunoprecipitated from 0.35 mg of K562 (Human chronic myelogenous leukemia cell line from bone marrow) whole cell lysate with ab208687 at 1/30 dilution.

Western blot was performed from the immunoprecipitate using ab208687 at 1/500 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Lane 1 : K562 whole cell lysate 10μg (Input).

Lane 2 : ab208687 IP in K562 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab208687 in K562 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab208687).

All lanes:

Immunoprecipitation - Anti-FGF2 antibody [EPR20145-219] (<a href='/en-us/products/primary-antibodies/fgf2-antibody-epr20145-219-ab208687'>ab208687</a>)

Predicted band size: 30 kDa

false

• I-ELISA

Supplier Data

Indirect ELISA - Anti-FGF2 antibody [EPR20145-219] - BSA and Azide free (AB271983)

This data was developed using ab208687, the same antibody clone in a different buffer formulation.

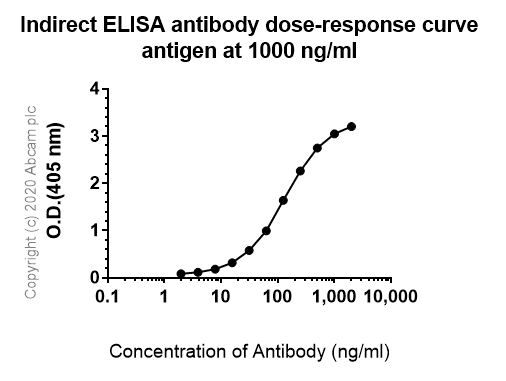

ELISA analysis of Mouse FGF2 recombinant protein at 1000 ng/ml with ab208687. An Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/2500 dilution was used as the secondary antibody.
