Anti-FHL1 antibody [EPR22842-95]

11 product images

•

  Western blot - Anti-FHL1 antibody [EPR22842-95] (ab255828)

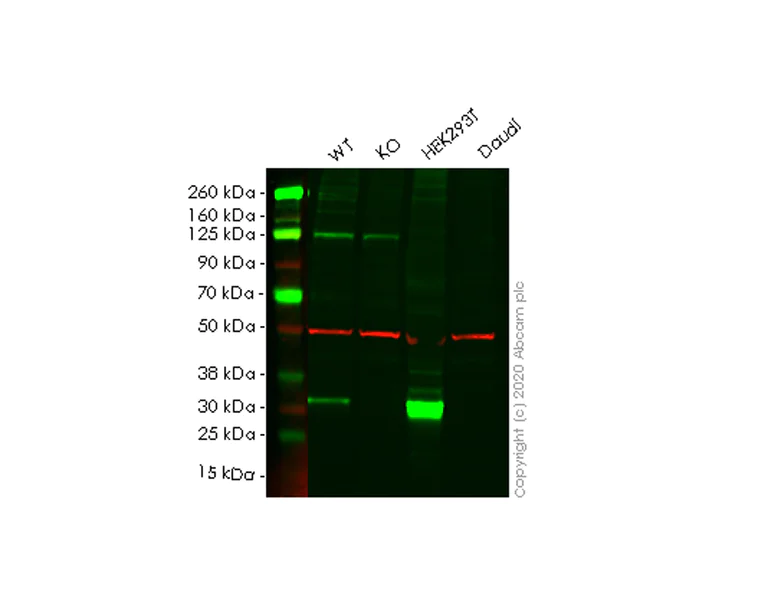

  Lanes 1-4: Merged signal (red and green). Green - ab255828 observed at 32 kDa. Red - loading control Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 observed at 50 kDa.


  ab255828 Anti-FHL1 antibody [EPR22842-95] was shown to specifically react with FHL1 in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human FHL1 knockout HeLa cell line ab266011 (knockout cell lysate Human FHL1 knockout HeLa cell lysate ab257952) was used. Wild-type and FHL1 knockout samples were subjected to SDS-PAGE. ab255828 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-FHL1 antibody [EPR22842-95] (ab255828) at 1/1000 dilution

  Lane 1: Wild-type HeLa cell lysate at 20 µg

  Lane 2: FHL1 knockout HeLa cell lysate at 20 µg

  Lane 3: HEK293T cell lysate at 20 µg

  Lane 4: Daudi cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

  Predicted band size: 36 kDa

  Observed band size: 32 kDa

  This data was developed using ab255828, the same antibody clone in a different buffer formulation.


  Lanes 1-4: Merged signal (red and green). Green - ab255828 observed at 32 kDa. Red - loading control Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 observed at 50 kDa.

  ab255828 Anti-FHL1 antibody [EPR22842-95] was shown to specifically react with FHL1 in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human FHL1 knockout HeLa cell line ab266011 (knockout cell lysate Human FHL1 knockout HeLa cell lysate ab257952) was used. Wild-type and FHL1 knockout samples were subjected to SDS-PAGE. ab255828 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Immunohistochemical analysis of paraffin-embedded human colon tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on the stroma and smooth muscle in human colon is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

•

  Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] (ab255828)

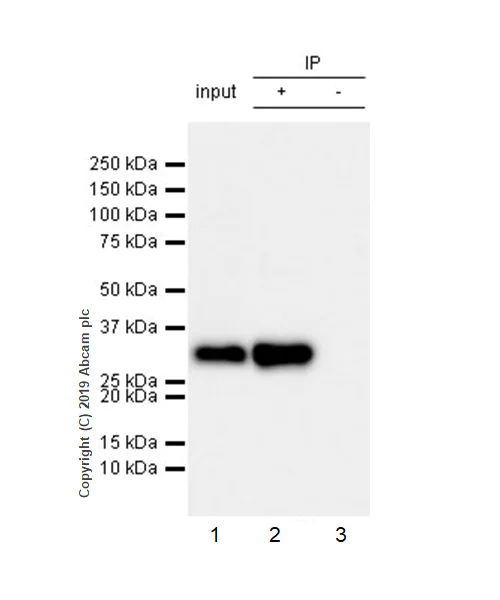

  FHL1 was immunoprecipitated from 0.35 mg mouse skeletal muscle lysate 10μg with ab255828 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab255828 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.


  Lane 1: Mouse skeletal muscle lysate 10μg.

  Lane 2: ab255828 IP in mouse skeletal muscle lysate.

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab255828 in mouse skeletal muscle lysate.

  Blocking and dilution buffer and concentration/ 5% NFDM/TBST.

  Exposure time/ 30 seconds.

  All lanes: Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Predicted band size: 36 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NCI-H1299 (Human lung carcinoma epithelial cell) cells labeling FHL1 with ab255828 at 1/50 10 μg/ml dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 2 μg/ml dilution (Green). Confocal image showing cytoplasmic and nuclear staining in NCI-H1299 cell line. Low expression control: NCI-H460 cell line (PMID: 21702045). Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).


  Secondary antibody only control: Secondary antibody is AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 2 μg/ml dilution.

•

  Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] (ab255828)

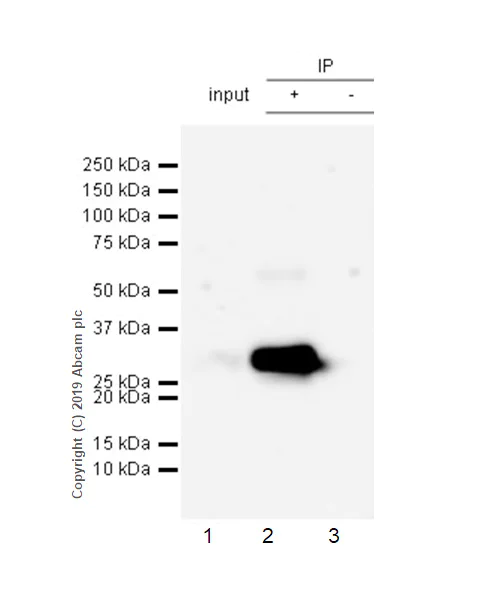

  FHL1 was immunoprecipitated from 0.35 mg human lung lysate 10μg with ab255828 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab255828 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.


  Lane 1: Human lung lysate 10μg.

  Lane 2: ab255828 IP in human lung lysate.

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab255828 in human lung lysate.

  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  Exposure time/ 30 seconds.

  All lanes: Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Predicted band size: 36 kDa

•

  Western blot - Anti-FHL1 antibody [EPR22842-95] (ab255828)

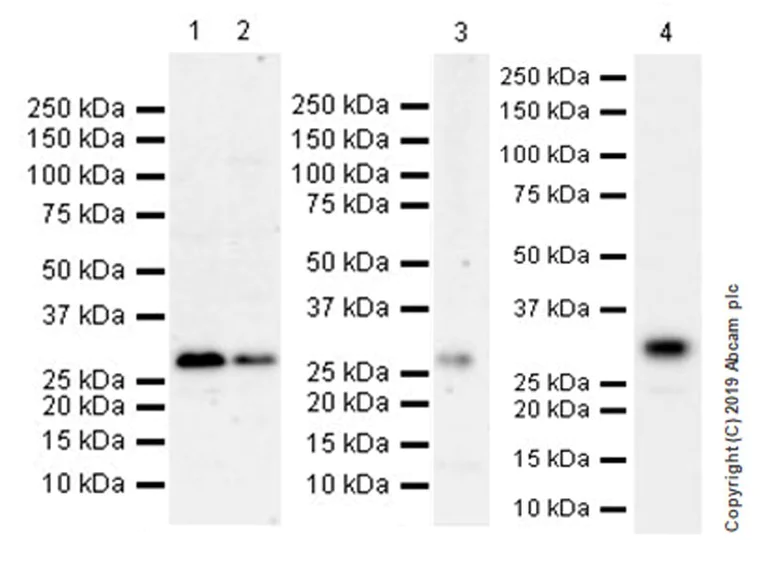

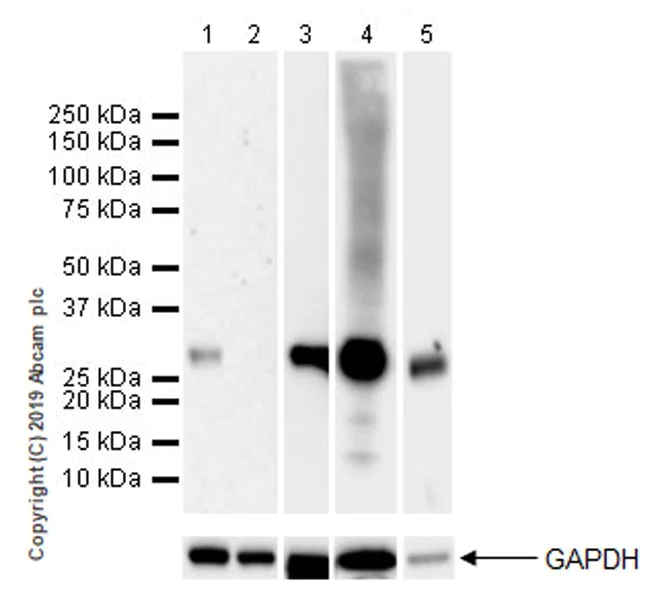

  There are five isoforms of FHL1. The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 21702045).


  Low expression control: NCI-H460 (PMID: 21702045).

  Blocking/Diluting buffer and concentration: 5% NFDM/TBST.

  Exposure Time:

  Lanes 1-2: 3 minutes;

  Lane 3: 26 seconds；

  Lane 4: 1 second;

  Lane 5: 26 seconds.

  All lanes: Western blot - Anti-FHL1 antibody [EPR22842-95] (ab255828) at 1/1000 dilution

  Lane 1: NCI-H1299 (human lung carcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: NCI-H460 (human large cell lung cancer epithelial cell) whole cell lysate at 20 µg

  Lane 3: Mouse skeletal muscle lysate at 20 µg

  Lane 4: Human skeletal muscle lysate at 20 µg

  Lane 5: Human lung lysate at 20 µg

  Secondary

  Lanes 1 - 3: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Lanes 4 - 5: Western blot - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/1000 dilution

  Predicted band size: 36 kDa

  Observed band size: 32 kDa

•

  Western blot - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  There are five isoforms of FHL1. The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 21702045).


  Blocking/Diluting buffer and concentration: 5% NFDM/TBST.

  Exposure Time:

  Lanes 1-3: 3 minutes;

  Lane 4: 3 seconds.

  All lanes: Western blot - Anti-FHL1 antibody [EPR22842-95] (ab255828) at 1/1000 dilution

  Lane 1: Mouse kidney lysate at 10 µg

  Lane 2: Mouse spleen lysate at 10 µg

  Lane 3: Rat heart lysate at 10 µg

  Lane 4: Rat skeletal muscle lysate at 10 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Predicted band size: 36 kDa

  Observed band size: 32 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Immunohistochemical analysis of paraffin-embedded rat skeletal muscle tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Cytoplasmic staining on rat skeletal muscle (PMID: 27443559, 9714789) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Cytoplasmic staining on mouse lung (PMID: 29067108) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Immunohistochemical analysis of paraffin-embedded human cardiac muscle tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Cytoplasmic staining on human cardiac muscle (PMID: 9714789) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] (ab255828)

  Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Cytoplasmic staining on human skeletal muscle (PMID: 27443559, 9714789) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.
