Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

Immunohistochemical analysis of paraffin-embedded human colon tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on the stroma and smooth muscle in human colon is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

Immunohistochemical analysis of paraffin-embedded human cardiac muscle tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Cytoplasmic staining on human cardiac muscle (PMID : 9714789) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

Immunohistochemical analysis of paraffin-embedded human skeletal muscle tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Cytoplasmic staining on human skeletal muscle (PMID : 27443559, 9714789) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NCI-H1299 (Human lung carcinoma epithelial cell) cells labeling FHL1 with ab255828 at 1/50 10 μg/ml dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 2 μg/ml dilution (Green). Confocal image showing cytoplasmic and nuclear staining in NCI-H1299 cell line. Low expression control : NCI-H460 cell line (PMID : 21702045). ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 2 μg/ml dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

• IP

Unknown

Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

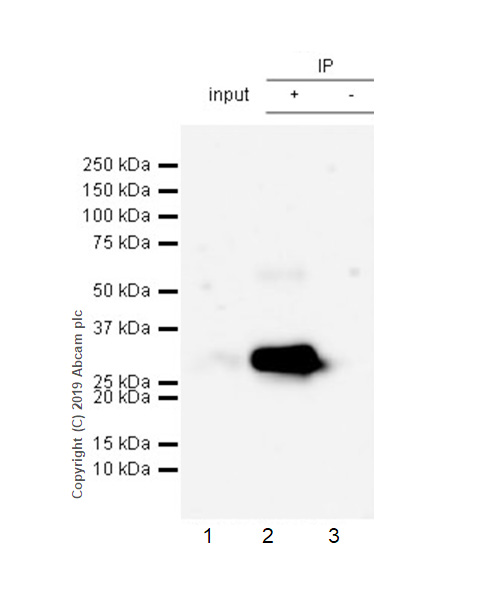

FHL1 was immunoprecipitated from 0.35 mg human lung lysate 10μg with ab255828 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab255828 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : Human lung lysate 10μg.

Lane 2 : ab255828 IP in human lung lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab255828 in human lung lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time/ 30 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

All lanes:

Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] (<a href='/en-us/products/primary-antibodies/fhl1-antibody-epr22842-95-ab255828'>ab255828</a>)

Predicted band size: 36 kDa

false

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

Immunohistochemical analysis of paraffin-embedded rat skeletal muscle tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Cytoplasmic staining on rat skeletal muscle (PMID : 27443559, 9714789) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling FHL1 with ab255828 at 1/500 dilution (1.036 μg/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Cytoplasmic staining on mouse lung (PMID : 29067108) is observed. The section was incubated with ab255828 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

• IP

Unknown

Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

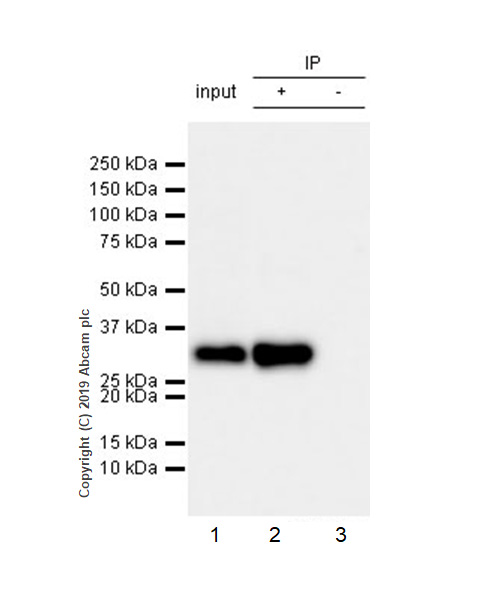

FHL1 was immunoprecipitated from 0.35 mg mouse skeletal muscle lysate 10μg with ab255828 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab255828 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : Mouse skeletal muscle lysate 10μg.

Lane 2 : ab255828 IP in mouse skeletal muscle lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab255828 in mouse skeletal muscle lysate.

Blocking and dilution buffer and concentration/ 5% NFDM/TBST.

Exposure time/ 30 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab255828).

All lanes:

Immunoprecipitation - Anti-FHL1 antibody [EPR22842-95] (<a href='/en-us/products/primary-antibodies/fhl1-antibody-epr22842-95-ab255828'>ab255828</a>)

Predicted band size: 36 kDa

false

• WB

Lab

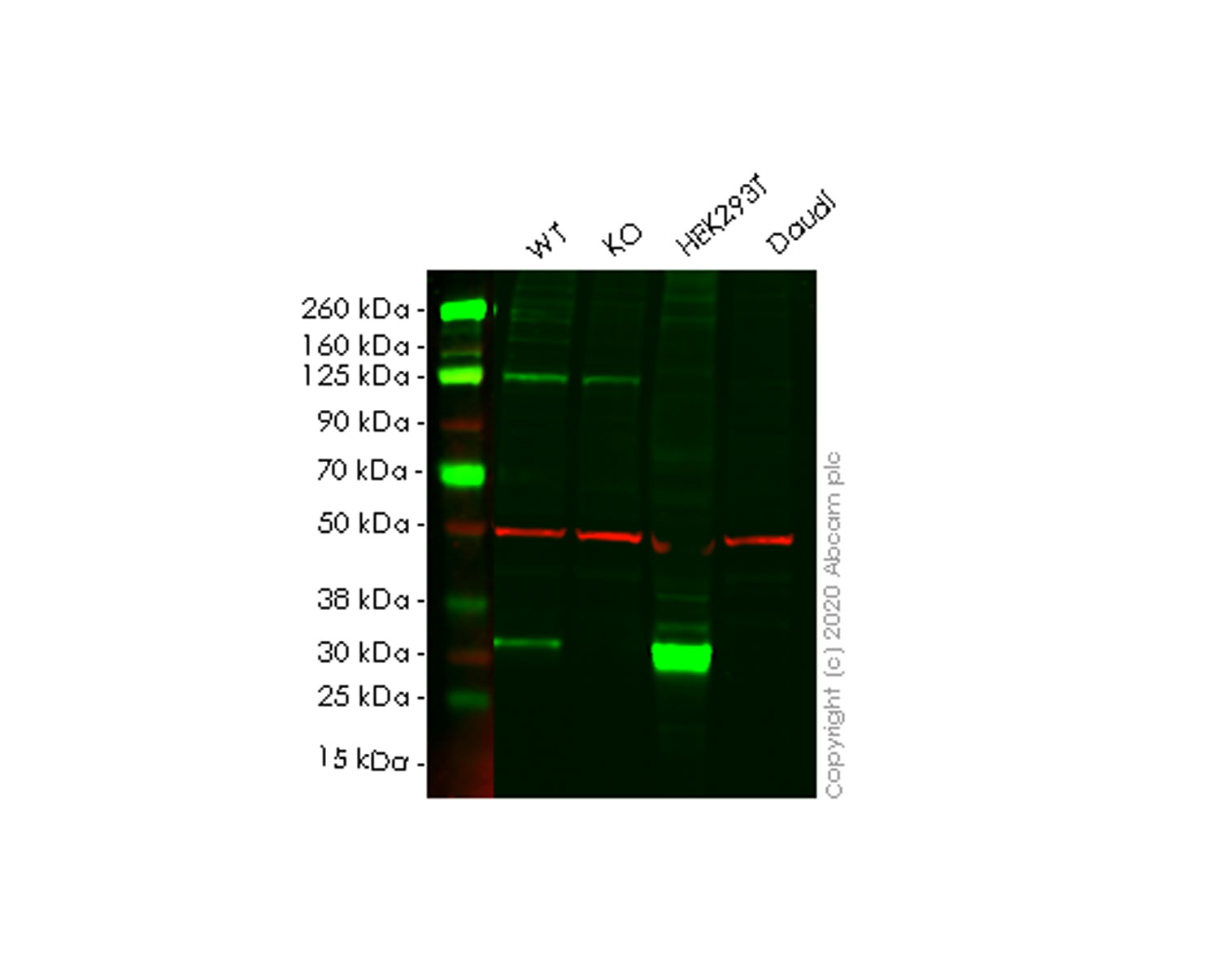

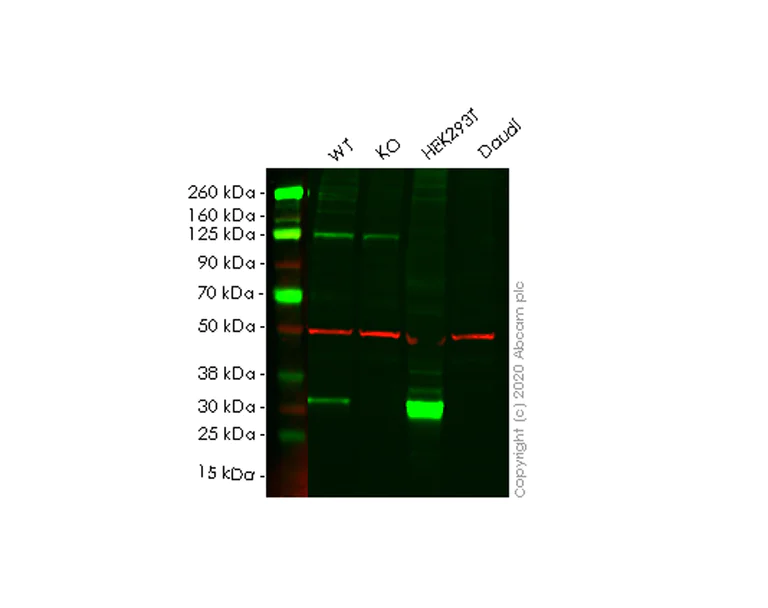

Western blot - Anti-FHL1 antibody [EPR22842-95] - BSA and Azide free (AB256551)

This data was developed using ab255828, the same antibody clone in a different buffer formulation.

Lanes 1-4 : Merged signal (red and green). Green - ab255828 observed at 32 kDa. Red - loading control ab7291 observed at 50 kDa.

ab255828 Anti-FHL1 antibody [EPR22842-95] was shown to specifically react with FHL1 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab266011 (knockout cell lysate ab257952) was used. Wild-type and FHL1 knockout samples were subjected to SDS-PAGE. ab255828 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-FHL1 antibody [EPR22842-95] (<a href='/en-us/products/primary-antibodies/fhl1-antibody-epr22842-95-ab255828'>ab255828</a>) at 1/1000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

FHL1 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human FHL1 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-fhl1-knockout-hela-cell-line-ab266011'>ab266011</a>)

Lane 3:

HEK293T cell lysate at 20 µg

Lane 4:

Daudi cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 36 kDa

Observed band size: 32 kDa

false
