Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free

• ICC/IF

Lab

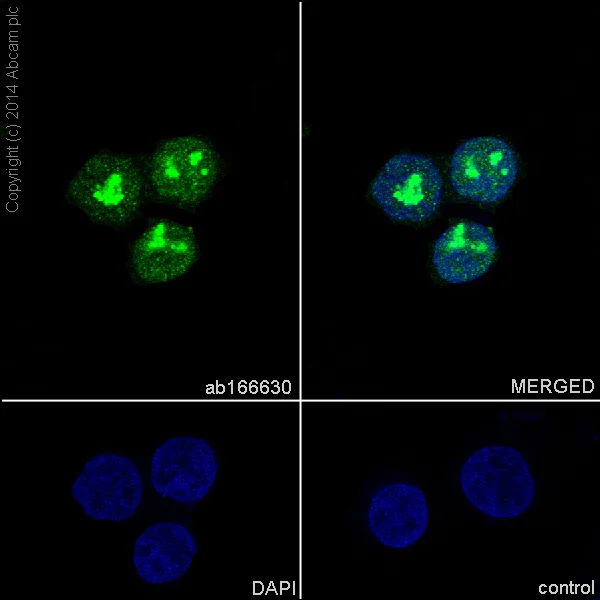

Immunocytochemistry/ Immunofluorescence - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free (AB240147)

Immunocytochemistry/Immunofluorescence analysis of HT-29 (human colorectal adenocarcinoma) cells labelling Fibrillarin (green) with purified ab166630 at 1/5000. Cells were fixed with 4% Paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. DAPI (blue) was used as a nuclear counterstain.

Secondary Only Control : PBS was used instead of the primary antibody as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab166630).

• Flow Cyt (Intra)

Unknown

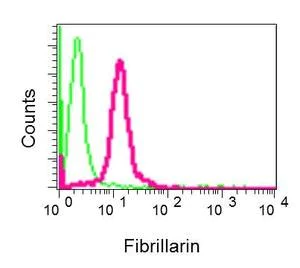

Flow Cytometry (Intracellular) - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free (AB240147)

Intracellular flow cytometric analysis of permeabilized MOLT4 cells using ab166630 at a 1/10 dilution (red) or a Rabbit IgG (negative) (green). This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab166630).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free (AB240147)

Immunofluorescent analysis of HeLa cells labeling Fibrillarin with ab166630 at a 1/100 dilution.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab166630).

• ICC/IF

Lab

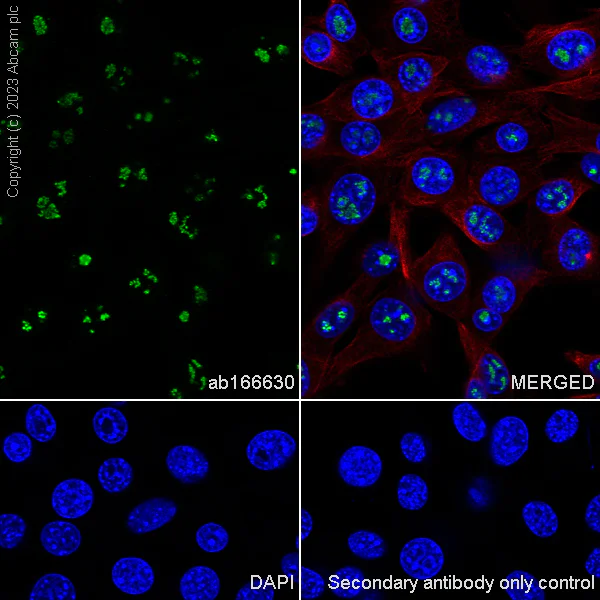

Immunocytochemistry/ Immunofluorescence - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free (AB240147)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab166630). Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling Fibrillarin with ab166630 at 1/200 (0.5 μg/ml) dilution followed by secondary antibody ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedused at 1/1000 dilution (2μg/ml) (Green). ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (2.5 μg/ml) (Red). The Nuclear counterstain was DAPI (Blue). Confocal image showing nuclear staining in NIH/3T3 cell line. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• WB

Lab

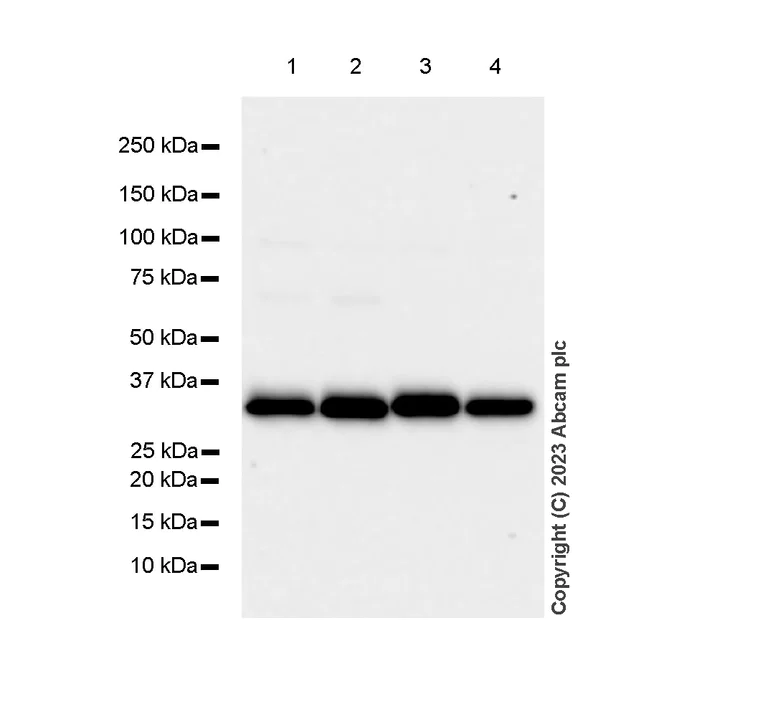

Western blot - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free (AB240147)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab166630). Blocking and diluting buffer and concentration : 5% NFDM/TBST. The lysates were freshly made and used for Western Blotting immediately to minimize protein degradation.

All lanes:

Western blot - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - Nucleolar Marker (<a href='/en-us/products/primary-antibodies/fibrillarinfibrillarin-like-protein-1-antibody-epr10823b-nucleolar-marker-ab166630'>ab166630</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

293T (human embryonic kidney epithelial cell) whole cell lysate at 20 µg

Lane 3:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Lane 4:

PC-12 (rat adrenal gland pheochromocytoma cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 33 kDa

Observed band size: 33 kDa

false

Exposure time: 10s

• WB

Lab

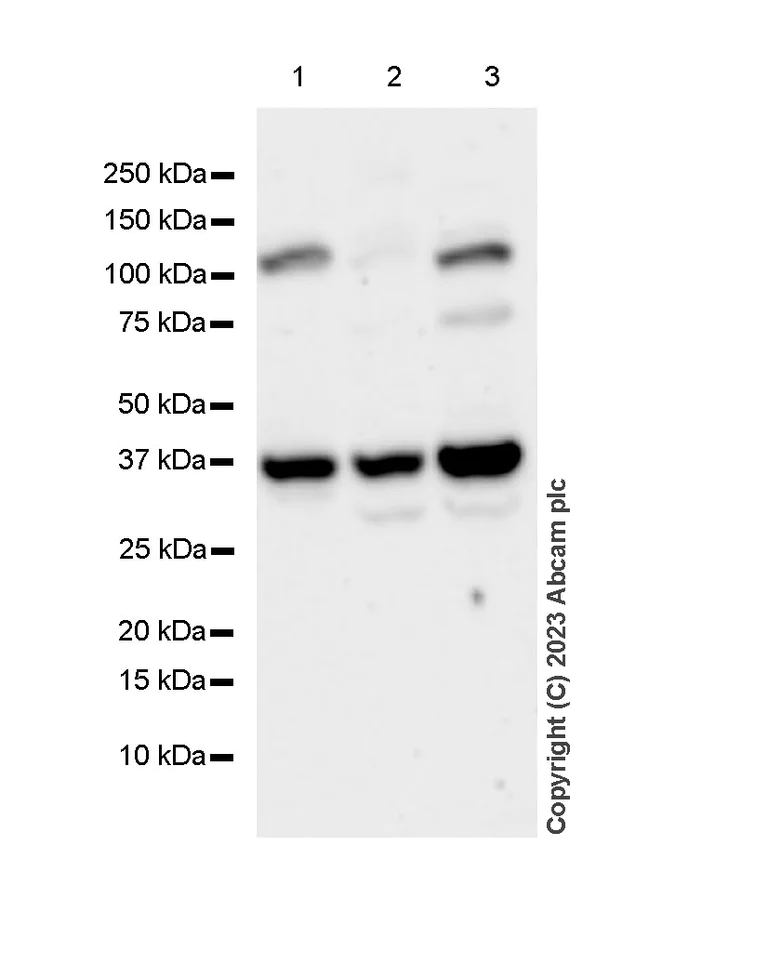

Western blot - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - BSA and Azide free (AB240147)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab166630). Blocking and diluting buffer and concentration : 5% NFDM/TBST. The lysates were freshly made and used for Western Blotting immediately to minimize protein degradation.

All lanes:

Western blot - Anti-Fibrillarin+Fibrillarin-like protein 1 antibody [EPR10823(B)] - Nucleolar Marker (<a href='/en-us/products/primary-antibodies/fibrillarinfibrillarin-like-protein-1-antibody-epr10823b-nucleolar-marker-ab166630'>ab166630</a>) at 1/1000 dilution

Lane 1:

Mouse liver tissue lysate at 20 µg

Lane 2:

Mouse testis tissue lysate at 20 µg

Lane 3:

Mouse spleen tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 33 kDa

Observed band size: 33 kDa

false

Exposure time: 81s
