Rabbit Recombinant Monoclonal CD20 antibody - conjugated to FITC. Suitable for Flow Cyt (Intra) and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Flow Cytometry (Intracellular) - FITC Anti-CD20 antibody [EP459Y] (AB322915), expandable thumbnail
  • Flow Cytometry (Intracellular) - FITC Anti-CD20 antibody [EP459Y] (AB322915), expandable thumbnail

Key facts

Isotype

IgG

Host species

Rabbit

Conjugation

FITC

Excitation/Emission

Ex: 495nm, Em: 519nm

Storage buffer

pH: 7.4
Preservative: 0.02% Sodium azide
Constituents: 68% PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow Cyt (Intra)
Human
Tested

Tested
Tested

Species

Human

Dilution info

1/2500 - 1/312500

Notes

-

Target data

Function

B-lymphocyte-specific membrane protein that plays a role in the regulation of cellular calcium influx necessary for the development, differentiation, and activation of B-lymphocytes (PubMed:12920111, PubMed:3925015, PubMed:7684739). Functions as a store-operated calcium (SOC) channel component promoting calcium influx after activation by the B-cell receptor/BCR (PubMed:12920111, PubMed:18474602, PubMed:7684739).

Alternative names

CD20, MS4A1, CD20, B-lymphocyte antigen CD20, B-lymphocyte surface antigen B1, Bp35, Leukocyte surface antigen Leu-16, Membrane-spanning 4-domains subfamily A member 1

Rabbit Recombinant Monoclonal CD20 antibody - conjugated to FITC. Suitable for Flow Cyt (Intra) and reacts with Human samples.

Key facts

Isotype

IgG

Conjugation

FITC

Excitation/Emission

Ex: 495nm, Em: 519nm

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EP459Y

Specificity

For optimal performance in IHC, the primary antibody should be incubated overnight at 4°C.

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

CD20 also known as MS4A1 or L26 is a membrane-spanning 4-domains subfamily A member 1 protein. It is a non-glycosylated phosphoprotein with a molecular mass of approximately 33-37 kDa. Expressed extensively on the surface of B-cells CD20 plays an important role in B-cell activation and regulation. While CD20 is absent on early pro-B cells and plasma cells its presence increases as B-cells mature. Anti-CD20 antibodies such as 2H7 are commonly used in research and treatment to deplete B-cells due to the target's consistent expression in most stages of B-cell development.

Biological function summary

CD20 contributes significantly to calcium ion transport which is essential for the activation process of B-cells. Although CD20 does not belong to a larger protein complex its role centers around forming a calcium channel that allows a sustained influx of calcium into the B-cells. This influx is important for the signaling pathways that govern B-cell activation proliferation and differentiation impacting the immune response efficacy.

Pathways

CD20 is closely involved in the B-cell receptor (BCR) signaling pathway and the Fc gamma R-mediated phagocytosis pathway. These pathways play vital roles in adaptive immunity and immune response modulation. CD20's interaction with proteins like PI3K during BCR signaling enhances receptor-mediated cellular signals subsequently influencing downstream effectors involved in cell growth and survival of B-cells.

Associated diseases and disorders

CD20 is strongly linked to certain blood cancers and autoimmune diseases including non-Hodgkin's lymphoma and rheumatoid arthritis. These conditions often exploit aberrant B-cell activity or count. CD20's expression on malignant B-cells in non-Hodgkin's lymphoma makes it an effective target for monoclonal antibody therapies such as rituximab an anti-CD20 antibody. Additionally CD20-targeted therapies can help deplete pathogenic B-cells in rheumatoid arthritis highlighting the protein's relevance in disease treatment.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Flow Cytometry (Intracellular) - FITC Anti-CD20 antibody [EP459Y] (ab322915), expandable thumbnail

    Flow Cytometry (Intracellular) - FITC Anti-CD20 antibody [EP459Y] (ab322915)

    Flow cytometry overlay histogram showing left Ramos positive cells and right negative HEK293 stained with FITC Anti-ICAM1 antibody [EPR22161-284] ab322304 (red line). The cells were incubated in 1x PBS containing μg/ml human IgG and 10% normal goat serum followed by the antibody (ab322915) (1x 10⁶ in 100 μl at 0.2 μg/ml (1/2500)) for 30min on ice.

    Isotype control antibody (black line) was Rabbit IgG [EPR25A] FITC used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

    Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

  • Flow Cytometry (Intracellular) - FITC Anti-CD20 antibody [EP459Y] (ab322915), expandable thumbnail

    Flow Cytometry (Intracellular) - FITC Anti-CD20 antibody [EP459Y] (ab322915)

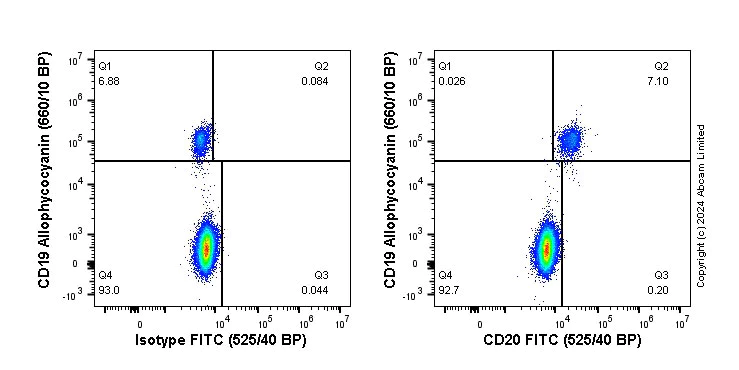

    Flow cytometry staining of human peripheral blood mononuclear cells (PBMCs) with ab322915 (right) or Rabbit IgG [EPR25A] FITC Isotype Control (left). Cells were fixed and permeabilised with BD Cytofix/Cytoperm™ for 20 min. PBMCs were incubated for 30 min on ice in 1x PBS containing 10 μg/ml human IgG and 10% normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab322915 or Rabbit IgG [EPR25A] FITC Isotype Control (1x 10⁶ in 100 μl at 0.0016 μg/ml (1/312500)) for 30 min at 4°C. The cells were simultaneously stained with CD19.

    Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on viable lymphocytes.
