Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free

• Flow Cyt (Intra)

Lab

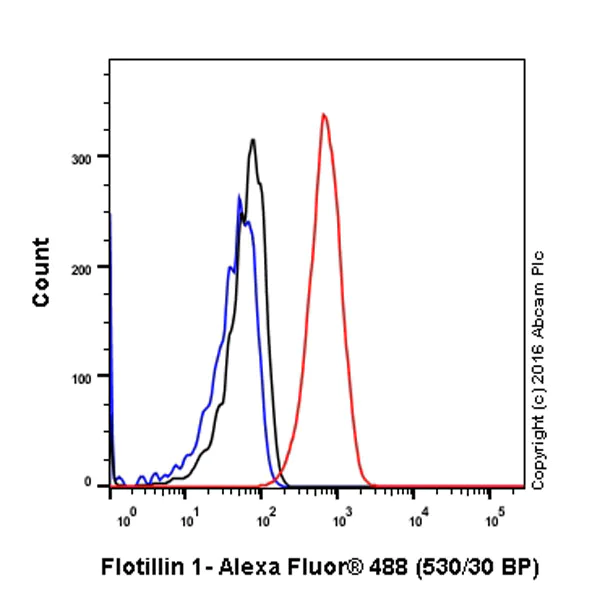

Flow Cytometry (Intracellular) - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

Intracellular Flow Cytometry analysis of Jurkat (human acute T cell leukemia) cells labeling Flotillin 1 with purified ab133497 at 1/50 dilution (10ug/mL) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^®488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133497).

• IHC-P

Unknown

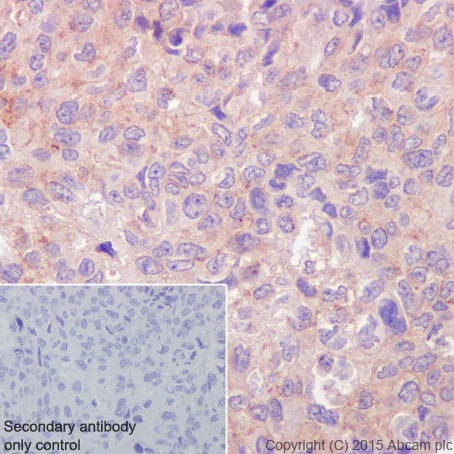

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

Immunohistochemical staining of paraffin embedded human cervical carcinoma with purified ab133497 at a working dilution of 1/100. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133497).

• ICC/IF

Unknown

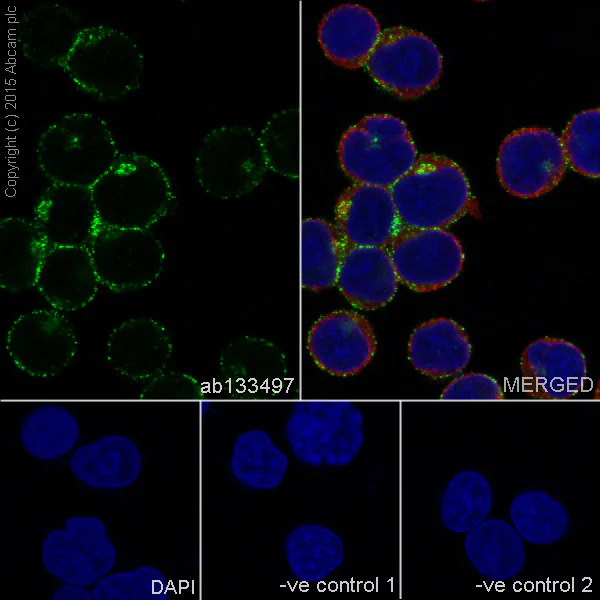

Immunocytochemistry/ Immunofluorescence - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

Immunofluorescence staining of Jurkat cells with purified ab133497 at a working dilution of 1/500, counter-stained with DAPI. The secondary antibody was Alexa Fluor^® 488 goat anti-rabbit (ab150077), used at a dilution of 1/1000. ab7291, a mouse anti-tubulin antibody (1/1000), was used to stain tubulin along with ab150120 (Alexa Fluor^® 594 goat anti-mouse, 1/1000), shown in the top right hand panel. The cells were fixed in 4% PFA and permeabilized using 0.1% Triton X 100. The negative controls are shown in bottom middle and right hand panels - for negative control 1, purified ab133497 was used at a dilution of 1/500 followed by an Alexa Fluor^® 594 goat anti-mouse antibody (ab150120) at a dilution of 1/500. For negative control 2, ab7291 (mouse anti-tubulin) was used at a dilution of 1/500 followed by an Alexa Fluor^® 488 goat anti-rabbit antibody (ab150077) at a dilution of 1/400.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133497).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

Immunohistochemical analysis of paraffin embedded Human colon tissue labelling Flotillin 1 using unpurified ab133497 at a dilution of 1/100.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133497).

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IP

Unknown

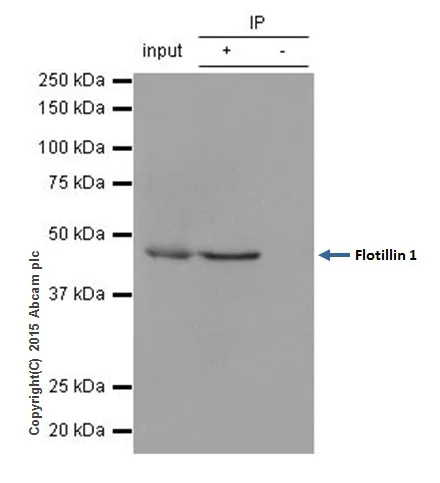

Immunoprecipitation - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

ab133497 (purified) at 1/60 immunoprecipitating Flotillin 1 in 10 µg K562 (Lanes 1 and 2, observed at 48 kDa). Lane 3 - PBS. For western blotting, a HRP-conjugated anti-rabbit IgG, specific to the non-reduced form of IgG was used as the secondary antibody (1/1500). Blocking buffer and concentration : 5% NFDM/TBST Dilution buffer and concentration : 5% NFDM/TBSTThis data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133497).

All lanes:

Immunoprecipitation - Anti-Flotillin 1 antibody [EPR6041] (<a href='/en-us/products/primary-antibodies/flotillin-1-antibody-epr6041-ab133497'>ab133497</a>)

Predicted band size: 42 kDa,47 kDa

false

• WB

Lab

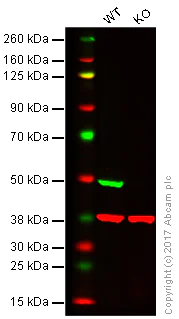

Western blot - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : Flotillin 1 knockout HAP1 whole cell lysate (20 μg)

Lanes 1 - 2 : Merged signal (red and green). Green - ab133497 observed at 47 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab133497 was shown to specifically react with Flotillin 1 in wild-type HAP1 cells as signal was lost in Flotillin 1 knockout cells. Wild-type and Flotillin 1 knockout samples were subjected to SDS-PAGE. ab133497 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/10,000 dilution and 1/20,000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20,000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133497).

All lanes:

Western blot - Anti-Flotillin 1 antibody [EPR6041] (<a href='/en-us/products/primary-antibodies/flotillin-1-antibody-epr6041-ab133497'>ab133497</a>)

Predicted band size: 47 kDa

Observed band size: 62 kDa

false

• WB

Lab

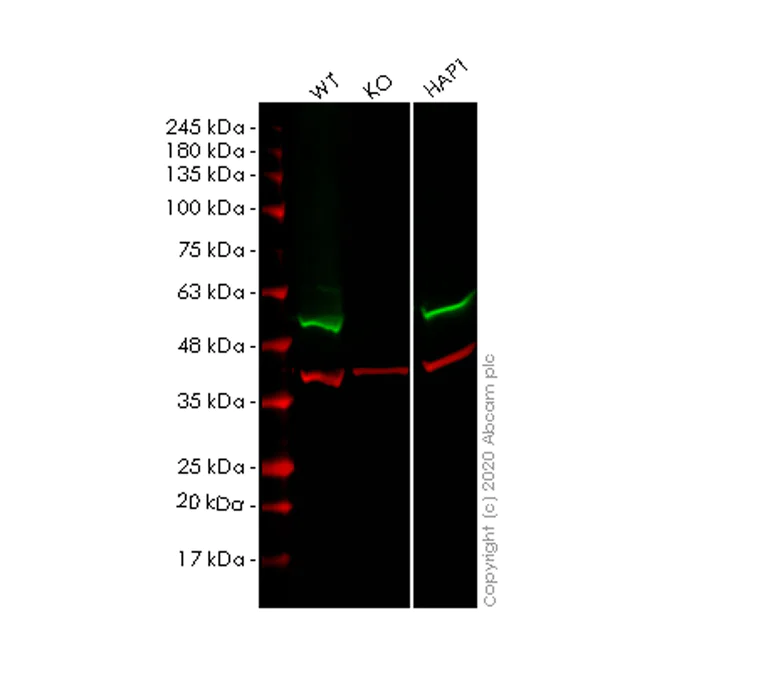

Western blot - Anti-Flotillin 1 antibody [EPR6041] - BSA and Azide free (AB232405)

This data was developed using the same antibody clone in a different buffer formulation (ab133497).

Lanes 1-3 : Merged signal (red and green). Green - ab133497 observed at 50 kDa. Red - loading control ab8245 observed at 36 kDa.

ab133497 Anti-Flotillin 1 antibody [EPR6041] was shown to specifically react with Flotillin 1 in wild-type HEK293T cells. Loss of signal was observed when knockout cell line ab267276 (knockout cell lysate ab257109) was used. Wild-type and Flotillin 1 knockout samples were subjected to SDS-PAGE. ab133497 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Flotillin 1 antibody [EPR6041] (<a href='/en-us/products/primary-antibodies/flotillin-1-antibody-epr6041-ab133497'>ab133497</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK293T cell lysate at 20 µg

Lane 2:

Western blot - Human FLOT1 (Flotillin 1) knockout HEK-293T cell lysate (<a href='/en-us/products/cell-lysates/human-flot1-flotillin-1-knockout-hek-293t-cell-lysate-ab257109'>ab257109</a>) at 20 µg

Lane 3:

HAP1 cell lysate at 20 µg

Secondary

Lanes 1 - 3:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/20000 dilution

Lanes 1 - 3:

Western blot - Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-680rd-preadsorbed-ab216776'>ab216776</a>) at 1/20000 dilution

Predicted band size: 47 kDa

Observed band size: 50 kDa,36 kDa

false
