Anti-FOXA2 antibody [EPR4466]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXA2 antibody [EPR4466] (AB108422)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human hepatocellular carcinoma tissue labelling FOXA2 with purified ab108422 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXA2 antibody [EPR4466] (AB108422)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human hepatocellular carcinoma tissue labelling FOXA2 with unpurified ab108422 at a 1/250 dilution.

Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

• IHC-P

Collaborator

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXA2 antibody [EPR4466] (AB108422)

Immunohistochemical analysis of Formalin/PFA-fixed paraffin-embedded human colon sections labelling FOXA2 with ab108422 at dilution of 1/500. The secondary antibody used was a polyclonal goat anti-rabbit biotin conjugated antibody at a dilution of 1/300. The sample was counterstained with hematoxylin. Antigen retrieval was heat mediated using citric acid.

This image is courtesy of Carl Hobbs, King's College London, United Kingdom

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-FOXA2 antibody [EPR4466] (AB108422)

Immunocytochemistry/Immunofluorescence analysis of HT-29 cells labelling FOXA2 with purified ab108422 at 1/300. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. ab7291, a mouse anti-tubulin (1/500) and ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500) were also used.

-ve control 1 : primary antibody (1/300) and secondary antibody, ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

-ve control 2 : ab7291 (1/1000) and secondary antibody, ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXA2 antibody [EPR4466] (AB108422)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse liver tissue labelling FOXA2 with purified ab108422 at 1/500. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXA2 antibody [EPR4466] (AB108422)

ab108422 staining of FOXA2 in mouse brain (substantia nigra) tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Heat-mediated antigen retrieval was carried out using citric acid. Samples were incubated with primary antibody (1/500) for two hours at room temperature. A Biotin-conjugated goat anti-rabbit IgG polyclonal was used as the secondary antibody.

This image is courtesy of Carl Hobbs, King's College London, United Kingdom

• WB

Lab

Western blot - Anti-FOXA2 antibody [EPR4466] (AB108422)

Western blot : Anti-FOXA2 antibody [EPR4466] ab108422 staining at 1/1000 dilution, shown in green; [LOADING CONTROL] loading control staining at 1/[DILUTION] dilution, shown in magenta. A band was observed at 78 kDa. To generate this image, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3pc Milk in TBS-0.1 % Tween 20 (TBS-T) before incubation with primary antibodies overnight at 4 C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit 800CW and Goat anti-Mouse 680RD at 1/20,000 dilution.

All lanes:

Western blot - Anti-FOXA2 antibody [EPR4466] (ab108422) at 1/1000 dilution

Lane 1:

FOXA1 Recombinant Protein (GST Tag) at 0.1 µg

Lane 2:

FOXA2 Recombinant Protein (GST Tag) at 0.1 µg

Lane 3:

FOXA3 Recombinant Protein (GST Tag) at 0.1 µg

Secondary

All lanes:

Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20000 dilution

Predicted band size: 78 kDa

Observed band size: 78 kDa

false

• WB

Lab

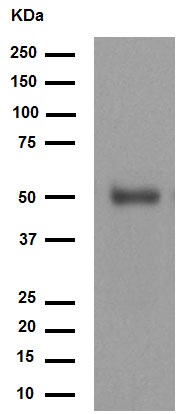

Western blot - Anti-FOXA2 antibody [EPR4466] (AB108422)

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

All lanes:

Western blot - Anti-FOXA2 antibody [EPR4466] (ab108422) at 1/10000 dilution

All lanes:

Human colon cancer tissue lysate at 20 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 48 kDa

Observed band size: 52 kDa

false

• WB

Lab

Western blot - Anti-FOXA2 antibody [EPR4466] (AB108422)

Blocking buffer and concentration : 5% NFDM/TBST.

Diluting buffer and concentration : 5% NFDM /TBST.

All lanes:

Western blot - Anti-FOXA2 antibody [EPR4466] (ab108422) at 1/2000 dilution

All lanes:

Mouse lung tissue lysate at 20 µg

Secondary

All lanes:

Peroxidase-conjugated goat anti-rabbit IgG (H+L) at 1/1000 dilution

Predicted band size: 48 kDa

Observed band size: 52 kDa

false

• WB

Unknown

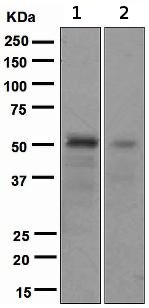

Western blot - Anti-FOXA2 antibody [EPR4466] (AB108422)

All lanes:

Western blot - Anti-FOXA2 antibody [EPR4466] (ab108422) at 1/1000 dilution

Lane 1:

Human fetal colon tissue lysate at 10 µg

Lane 2:

HepG2 (human liver hepatocellular carcinoma cell line) cell lysate at 10 µg

Secondary

All lanes:

HRP-conjugated goat anti-rabbit IgG at 1/2000 dilution

Predicted band size: 48 kDa

false
