Anti-FOXL2 antibody [EPR23523-68]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

Immunohistochemical analysis of paraffin-embedded Human ovary tissue labeling FOXL2 with ab246511 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human ovary. The section was incubated with ab246511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

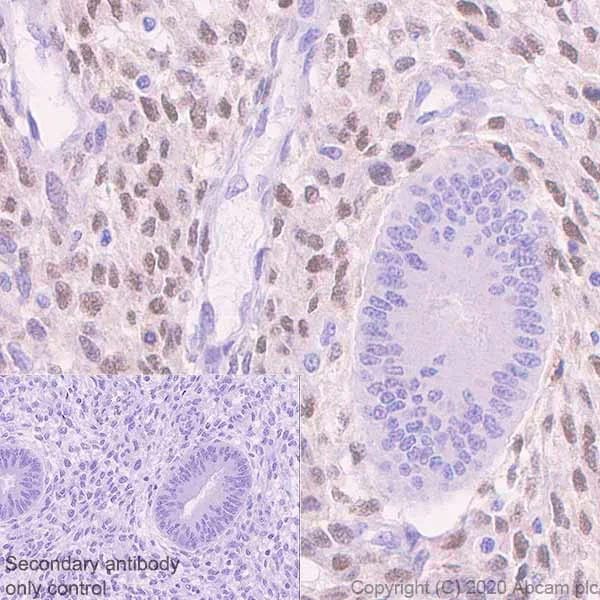

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human endometrium tissue labelling FOXL2 with purified ab246511 at 1/2000. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody. Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

Positive staining on stroma cells in human endometrium. The section was incubated with ab246511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

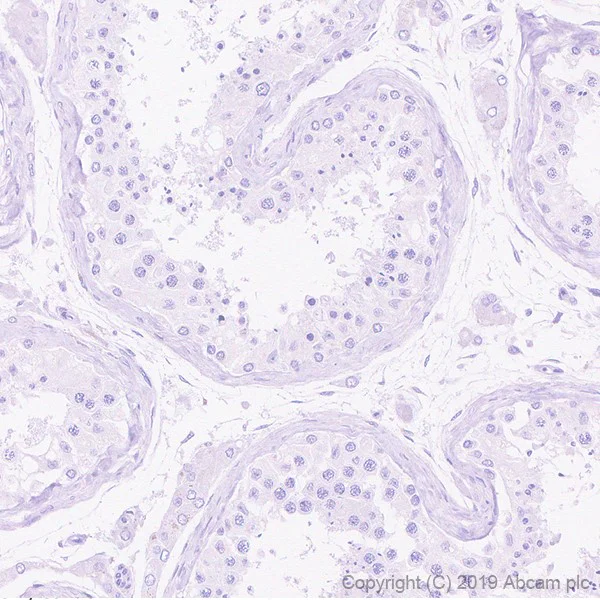

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human testis tissue labelling FOXL2 with purified ab246511 at 1/2000. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody. Counterstained with hematoxylin.

Negative control : no staining on human testis. The section was incubated with ab246511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

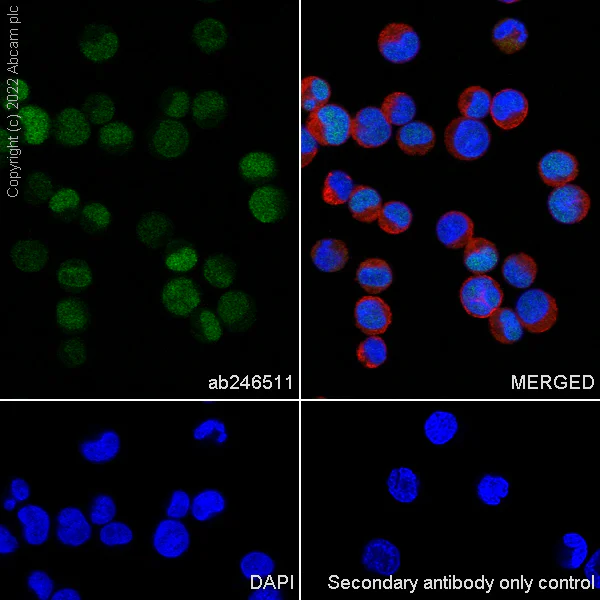

Immunofluorescent analysis of 80% Methanol-fixed, 0.1% Triton X-100 permeabilized K-562 (human chronic myelogenous leukemia lymphoblasts) cells labelling FOXL2 with primary antibody anti-FOXL2 (ab246511) at 1/50 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (ab150081) secondary antibody at 1/1000 dilution. Confocal image showing mainly nuclear staining in K-562 cell line. Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) (ab195889) was used to counterstain tubulin at 1/200 dilution. The nuclear counter stain is DAPI (blue).

• IHC-Fr

Unknown

Immunohistochemistry (Frozen sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

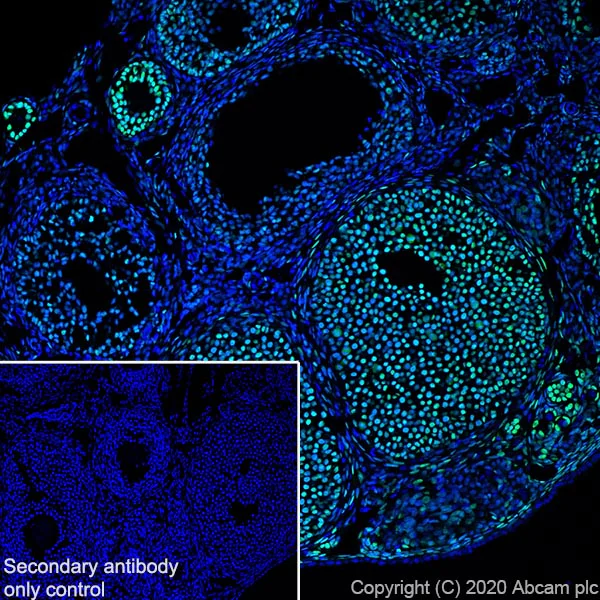

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized Mouse ovary tissue labeling FOXL2 with ab246511 at 1/250 dilution followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution (green). Nuclear staining on mouse ovary. The nuclear counter stain is DAPI (blue).

Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

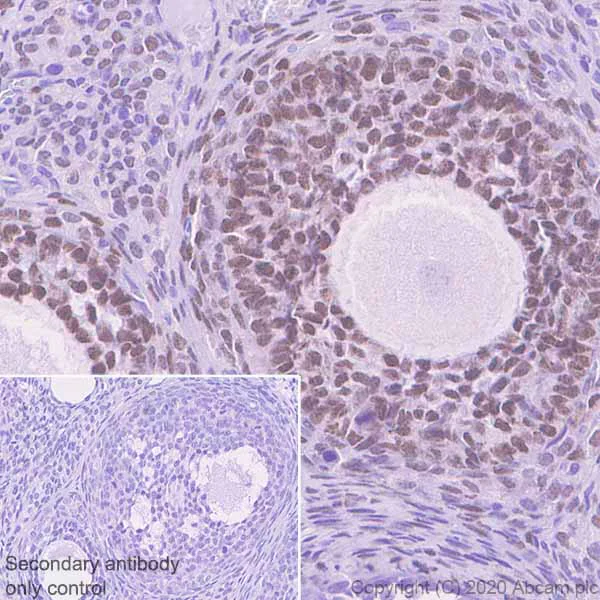

Immunohistochemical analysis of paraffin-embedded Mouse ovary tissue labeling FOXL2 with ab246511 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on granulosa cells and some other cells in mouse ovary. The section was incubated with ab246511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

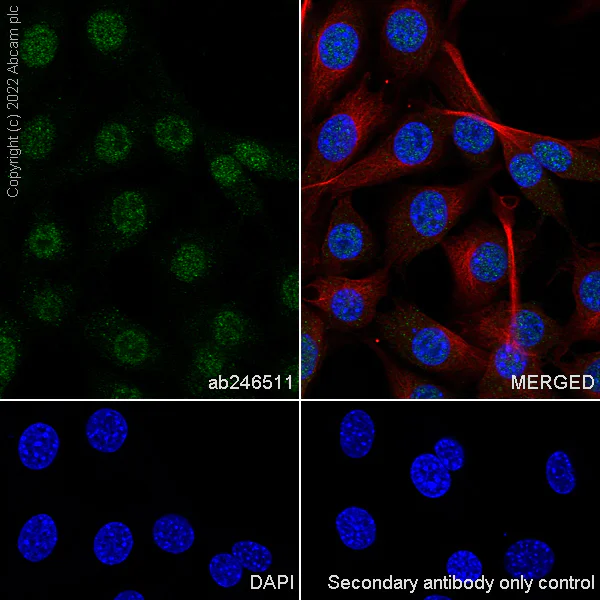

Immunofluorescent analysis of 100% Methanol-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 (mouse embryonic fibroblast cell line) cells labelling FOXL2 with primary antibody anti-FOXL2 (ab246511) at 1/50 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (ab150081) secondary antibody at 1/1000 dilution. Confocal image showing mainly nuclear staining in NIH/3T3 cell line. Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) (ab195889) was used to counterstain tubulin at 1/200 dilution. The nuclear counter stain is DAPI (blue).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

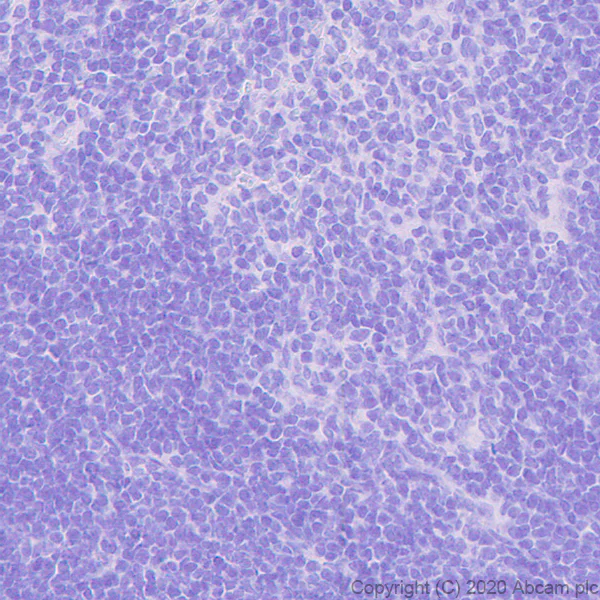

Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling FOXL2 with ab246511 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Negative control : No staining on mouse spleen. The section was incubated with ab246511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

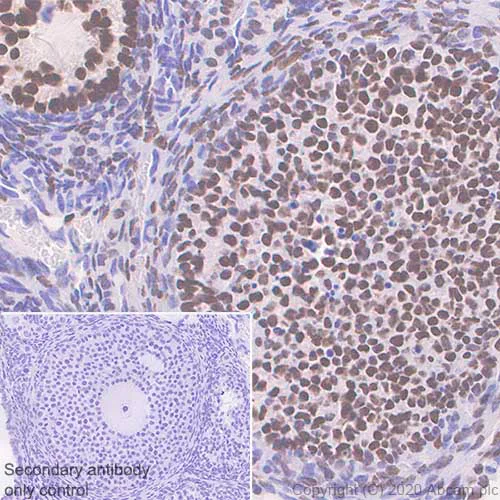

Immunohistochemical analysis of paraffin-embedded Rat ovary tissue labeling FOXL2 with ab246511 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on granulosa cells and some other cells in rat ovary. The section was incubated with ab246511 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

• IP

Unknown

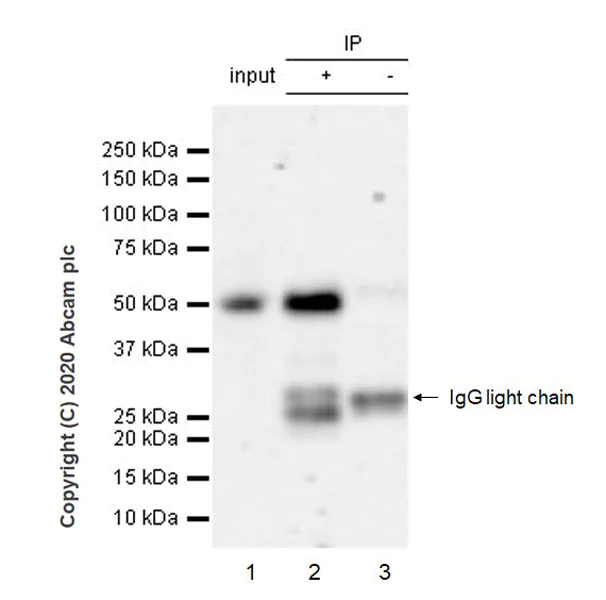

Immunoprecipitation - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

FOXL2 was immunoprecipitated from 0.35 mg Mouse ovary tissue lysate with ab246511 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab246511 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : Mouse ovary tissue lysate 10ug

Lane 2 : ab246511 IP in Mouse ovary tissue lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab246511 in mouse ovary tissue lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 84 seconds

All lanes:

Immunoprecipitation - Anti-FOXL2 antibody [EPR23523-68] (ab246511)

Predicted band size: 38 kDa

Observed band size: 50 kDa

false

• WB

Lab

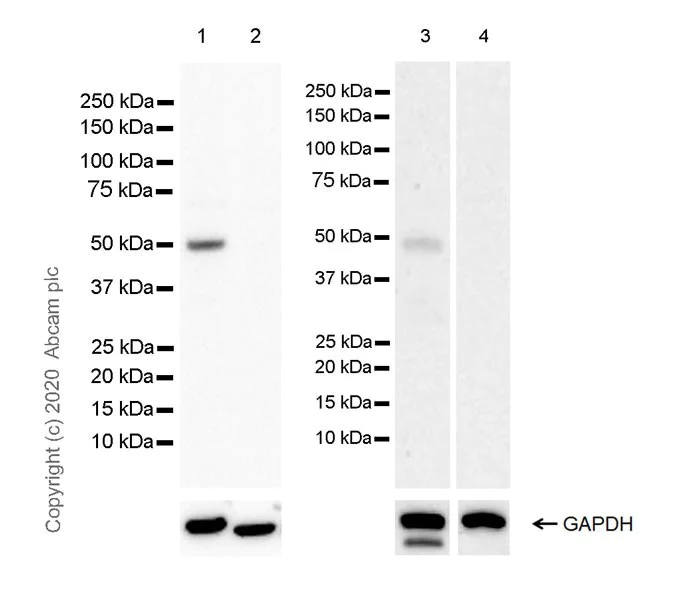

Western blot - Anti-FOXL2 antibody [EPR23523-68] (AB246511)

Blocking/Diluting buffer and concentration : 5% NFDM/TBST.

The expression profile and molecular weight observed is consistent with what has been described in the literature (PMID : 19106105）
Negative control : Mouse testis, Rat testis (PMID : 15059956)

All lanes:

Western blot - Anti-FOXL2 antibody [EPR23523-68] (ab246511) at 1/1000 dilution

Lane 1:

Mouse ovary tissue lysate at 20 µg

Lane 2:

Mouse testis tissue lysate at 20 µg

Lane 3:

Rat ovary tissue lysate at 20 µg

Lane 4:

Rat testis tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 38 kDa

Observed band size: 50 kDa

false

Exposure time: 3min
