AB36607

Anti-FOXP3 antibody [2A11G9]

Be the first to review this product! Submit a review

|

(6 Publications)

Mouse Monoclonal FOXP3 antibody. Suitable for Flow Cyt, WB, ICC/IF and reacts with Human, Transfected cell lysate - Human samples. Cited in 6 publications. Immunogen corresponding to Recombinant Fragment Protein within Human FOXP3.

View Alternative Names

IPEX, JM2, FOXP3, Forkhead box protein P3, Scurfin

3 Images
Immunocytochemistry/ Immunofluorescence - Anti-FOXP3 antibody [2A11G9] (AB36607)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-FOXP3 antibody [2A11G9] (AB36607)

ab36607 at 1/1000 dilution staining FOXP3 in human PANC1 cells by Immunocytochemistry/ Immunofluorescence. An Alexa Fluor® 488 conjugated Goat polyclonal to mouse IgG was used as secondary antibody. The primary antibody show green staining in image whilst actin filaments were stained red with Alexa Fluor® 555 Phalloidin.

Flow Cytometry - Anti-FOXP3 antibody [2A11G9] (AB36607)
  • Flow Cyt

Unknown

Flow Cytometry - Anti-FOXP3 antibody [2A11G9] (AB36607)

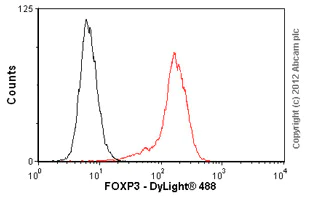

Overlay histogram showing Jurkat cells stained with ab36607 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab36607, 1μg/1x106 cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2μg/1x106 cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in Jurkat cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

Western blot - Anti-FOXP3 antibody [2A11G9] (AB36607)
  • WB

Unknown

Western blot - Anti-FOXP3 antibody [2A11G9] (AB36607)

All lanes:

Western blot - Anti-FOXP3 antibody [2A11G9] (ab36607) at 1/1000 dilution

Lane 1:

Protein expression of truncated FOXP3 in E. coli following transfection at 2 µg/mL

Lane 2:

Protein expression of truncated FOXP3 in HEK293 cells following transfection at 2 µg/mL

Predicted band size: 47 kDa

Observed band size: 50-53 kDa

false

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

2A11G9

Isotype

IgG1

Light chain type

kappa

Carrier free

No

Reacts with

Human

Applications

WB, ICC/IF, Flow Cyt

applications

Immunogen

Recombinant Fragment Protein within Human FOXP3. The exact immunogen used to generate this antibody is proprietary information.

Q9BZS1

style
left-column

Alternative Products

Primary Antibodies

AB22510

Anti-FOXP3 antibody [mAbcam 22510]

BOND RX™ Validated|Lab Essentials

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP3 antibody [mAbcam 22510] (AB22510)

  • 3
  • 8
Primary Antibodies

AB275080

Alexa Fluor® 594 Anti-FOXP3 antibody [SP97]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 594 Anti-FOXP3 antibody [SP97] (AB275080)

  • 0
  • 0
Primary Antibodies

AB275079

Alexa Fluor® 647 Anti-FOXP3 antibody [SP97]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-FOXP3 antibody [SP97] (AB275079)

  • 0
  • 0
Primary Antibodies

AB215206

Anti-FOXP3 antibody [EPR22102-37]

RabMAb|Recombinant|Lab Essentials|20ul selling size

Flow Cytometry (Intracellular) - Anti-FOXP3 antibody [EPR22102-37] (AB215206)

  • 5
  • 5
Primary Antibodies

AB244242

Anti-FOXP3 antibody [EPR22102-37] - BSA and Azide free

Recombinant|RabMAb

Flow Cytometry (Intracellular) - Anti-FOXP3 antibody [EPR22102-37] - BSA and Azide free (AB244242)

  • 4
  • 1
Primary Antibodies

AB99963

Anti-FOXP3 antibody [SP97]

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP3 antibody [SP97] (AB99963)

  • 3
  • 3
Primary Antibodies

AB191416

Anti-FOXP3 antibody [EPR15038-69]

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP3 antibody [EPR15038-69] (AB191416)

  • 0
  • 0
Primary Antibodies

AB238809

Anti-FOXP3 antibody [SP97] - BSA and Azide free

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP3 antibody [SP97] - BSA and Azide free (AB238809)

  • 0
  • 0
Primary Antibodies

AB216000

Anti-FOXP3 antibody [EPR15038-69] - BSA and Azide free

BOND RX™ Validated|RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FOXP3 antibody [EPR15038-69] - BSA and Azide free (AB216000)

  • 5
  • 1

Complementary Products

Assay Kits

AB289644

Human FOXP3 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Human FOXP3 ELISA Kit (AB289644)

  • 0
  • 0
Primary Antibodies

AB133616

Anti-CD4 antibody [EPR6855]

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size|Advanced Validation

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR6855] (AB133616)

  • 5
  • 19
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB217344

Anti-CD8 alpha antibody [EPR21769]

RabMAb|Recombinant

Flow Cytometry - Anti-CD8 alpha antibody [EPR21769] (AB217344)

  • 5
  • 6
Primary Antibodies

AB16669

Anti-CD3 epsilon antibody [SP7]

BOND RX™ Validated|RabMAb|Advanced Validation|Recombinant|Lab Essentials|20ul selling size

Multiplex immunohistochemistry - Anti-CD3 epsilon antibody [SP7] (AB16669)

  • 4
  • 79
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IHCFr" : {"fullname" : "Immunohistochemistry (Frozen sections)", "shortname":"IHC-Fr"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "testedAndGuaranteed", "FlowCyt-species-dilution-info": "1 µg for 10^6 Cells", "FlowCyt-species-notes": "<p><a href='/en-us/products/primary-antibodies/mouse-igg1-kappa-monoclonal-15-6e10a7-isotype-control-ab170190'>ab170190</a> - Mouse monoclonal IgG1, is suitable for use as an isotype control with this antibody.</p>", "WB-species-checked": "guaranteed", "WB-species-dilution-info": "1/500 - 1/2000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "1/200 - 1/1000", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/200 - 1/1000", "ICCIF-species-notes": "<p></p>", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "1/200 - 1/1000", "IHCFr-species-notes": "<p></p>" }, "Transfected cell lysate - Human": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/500 - 1/2000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IHCFr-species-checked": "notRecommended", "IHCFr-species-dilution-info": "", "IHCFr-species-notes": "" } } }
style
left-column
style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein G
Purification notes
Purified from tissue culture supernatant.
Storage buffer
Preservative: 0.05% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

FOXP3 also recognized as Forkhead box P3 is a transcription factor critical for immune system function. It weighs approximately 47 kDa. FOXP3 is mainly expressed in regulatory T cells (Tregs) which play a role in maintaining immune tolerance. Scientists primarily identify its presence in the nucleus where it facilitates transcriptional regulation. Methods like 'FOXP3 IHC' and 'FOXP3 IHC mouse' are useful for detecting this protein in tissue samples while 'FOXP3 antibodies' aid in research on this target. Techniques like 'FOXP3 staining' and 'FOXP3 flow cytometry' further allow for the analysis of its expression and function.
Biological function summary

This transcription factor operates by regulating the expression of a variety of genes involved in Treg cell development and function. FOXP3 can interact with other proteins to form complexes that modulate gene expression. Its role is essential in enabling Tregs to suppress immune responses a process necessary for preventing autoimmunity. The interaction extends to other key regulators within Tregs such as the protein complex 221D which may have overlapping functional responsibilities. 'FOXP3 236a/E7' reflects its genetic variants detectable in different studies providing insights into its biological functions.

Pathways

FOXP3 is a significant player within the immune regulation pathway. It integrates into the TGF-beta signaling pathway in which it controls the expression of genes important for Treg functions. The protein recruits other transcription factors like NF-kB coordinating intricate network regulations within immune cells. FOXP3's activity orchestrates the balance between immune activation and suppression ensuring a well-functioning immune response that prevents overreactions leading to autoimmune conditions.

FOXP3 mutations or dysregulation can link to autoimmune diseases like immune dysregulation polyendocrinopathy enteropathy X-linked syndrome (IPEX). This transcription factor's malfunction implicates cancer where inadequate Treg function can either suppress antitumor immunity or result in tumor progression. Proteins such as CTLA-4 which is also involved in immune regulation connect to FOXP3 in these contexts emphasizing FOXP3’s significant role in maintaining immune homeostasis and its impact on disease development.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Transcriptional regulator which is crucial for the development and inhibitory function of regulatory T-cells (Treg) (PubMed : 17377532, PubMed : 21458306, PubMed : 23947341, PubMed : 24354325, PubMed : 24722479, PubMed : 24835996, PubMed : 30513302, PubMed : 32644293). Plays an essential role in maintaining homeostasis of the immune system by allowing the acquisition of full suppressive function and stability of the Treg lineage, and by directly modulating the expansion and function of conventional T-cells (PubMed : 23169781). Can act either as a transcriptional repressor or a transcriptional activator depending on its interactions with other transcription factors, histone acetylases and deacetylases (PubMed : 17377532, PubMed : 21458306, PubMed : 23947341, PubMed : 24354325, PubMed : 24722479). The suppressive activity of Treg involves the coordinate activation of many genes, including CTLA4 and TNFRSF18 by FOXP3 along with repression of genes encoding cytokines such as interleukin-2 (IL2) and interferon-gamma (IFNG) (PubMed : 17377532, PubMed : 21458306, PubMed : 23947341, PubMed : 24354325, PubMed : 24722479). Inhibits cytokine production and T-cell effector function by repressing the activity of two key transcription factors, RELA and NFATC2 (PubMed : 15790681). Mediates transcriptional repression of IL2 via its association with histone acetylase KAT5 and histone deacetylase HDAC7 (PubMed : 17360565). Can activate the expression of TNFRSF18, IL2RA and CTLA4 and repress the expression of IL2 and IFNG via its association with transcription factor RUNX1 (PubMed : 17377532). Inhibits the differentiation of IL17 producing helper T-cells (Th17) by antagonizing RORC function, leading to down-regulation of IL17 expression, favoring Treg development (PubMed : 18368049). Inhibits the transcriptional activator activity of RORA (PubMed : 18354202). Can repress the expression of IL2 and IFNG via its association with transcription factor IKZF4 (By similarity).
