Mouse Monoclonal Frataxin antibody. Carrier free. Suitable for WB, Protein Array, IHC-P and reacts with Human, Recombinant full length protein - Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human FXN aa 50 to C-terminus.

Be the first to review this product! Submit a review

Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (AB268184), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (AB268184), expandable thumbnail
  • Protein Array - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (AB268184), expandable thumbnail
  • Western blot - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (AB268184), expandable thumbnail

Key facts

Isotype
IgG2b
Host species
Mouse
Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Recombinant Fragment Protein within Human FXN aa 50 to C-terminus. The exact immunogen used to generate this antibody is proprietary information. Database link Q16595

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBProtein ArrayIHC-P
Human
Tested
Expected
Tested
Recombinant full length protein - Human
Not recommended
Tested
Not recommended

Tested
Tested

Species
Human
Dilution info
1-2 µg/mL
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Recombinant full length protein - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Recombinant full length protein - Human
Dilution info
-
Notes

-

Expected
Expected

Species
Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Human
Dilution info
1-2 µg/mL
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Recombinant full length protein - Human
Dilution info
-
Notes

-

Associated Products

Select an associated product type

1 product for Alternative Version

6 products for Alternative Product

Target data

Function

Frataxin mature form. Functions as an activator of persulfide transfer to the scaffoding protein ISCU as component of the core iron-sulfur cluster (ISC) assembly complex and participates to the [2Fe-2S] cluster assembly (PubMed:12785837, PubMed:24971490). Accelerates sulfur transfer from NFS1 persulfide intermediate to ISCU and to small thiols such as L-cysteine and glutathione leading to persulfuration of these thiols and ultimately sulfide release (PubMed:24971490). Binds ferrous ion and is released from FXN upon the addition of both L-cysteine and reduced FDX2 during [2Fe-2S] cluster assembly (PubMed:29576242). The core iron-sulfur cluster (ISC) assembly complex is involved in the de novo synthesis of a [2Fe-2S] cluster, the first step of the mitochondrial iron-sulfur protein biogenesis. This process is initiated by the cysteine desulfurase complex (NFS1:LYRM4:NDUFAB1) that produces persulfide which is delivered on the scaffold protein ISCU in a FXN-dependent manner. Then this complex is stabilized by FDX2 which provides reducing equivalents to accomplish the [2Fe-2S] cluster assembly. Finally, the [2Fe-2S] cluster is transferred from ISCU to chaperone proteins, including HSCB, HSPA9 and GLRX5 (By similarity). May play a role in the protection against iron-catalyzed oxidative stress through its ability to catalyze the oxidation of Fe(2+) to Fe(3+); the oligomeric form but not the monomeric form has in vitro ferroxidase activity (PubMed:15641778). May be able to store large amounts of iron in the form of a ferrihydrite mineral by oligomerization; however, the physiological relevance is unsure as reports are conflicting and the function has only been shown using heterologous overexpression systems (PubMed:11823441, PubMed:12755598). May function as an iron chaperone protein that protects the aconitase [4Fe-4S]2+ cluster from disassembly and promotes enzyme reactivation (PubMed:15247478). May play a role as a high affinity iron binding partner for FECH that is capable of both delivering iron to ferrochelatase and mediating the terminal step in mitochondrial heme biosynthesis (PubMed:15123683, PubMed:16239244). Extramitochondrial frataxin. Modulates the RNA-binding activity of ACO1 (PubMed:20053667). May be involved in the cytoplasmic iron-sulfur protein biogenesis (PubMed:16091420). May contribute to oxidative stress resistance and overall cell survival (PubMed:16608849).

Alternative names

Recommended products

Mouse Monoclonal Frataxin antibody. Carrier free. Suitable for WB, Protein Array, IHC-P and reacts with Human, Recombinant full length protein - Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human FXN aa 50 to C-terminus.

Key facts

Isotype
IgG2b
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Recombinant Fragment Protein within Human FXN aa 50 to C-terminus. The exact immunogen used to generate this antibody is proprietary information. Database link Q16595
Carrier free
Yes
Clone number
FXN/2124
Purification technique
Affinity purification Protein A/G
Light chain type
kappa
Concentration
Loading...
Purification notes

Purified from bioreactor concentrate.

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

ab268184 is the carrier-free version of Anti-Frataxin antibody [FXN/2124] ab268063.

Abcam is leading the way to address reproducibility in scientific research with our highly validated recombinant monoclonal and recombinant multiclonal antibodies. Search & select one of Abcam's thousands of recombinant alternatives to eliminate batch-variability and unnecessary animal use.

If you do not find a host species to meet your needs, our catalogue and custom Chimeric range provides scientists the specificity of Abcam's RabMAbs in the species backbone of your choice. Remember to also review our range of edited cell lines, proteins and biochemicals relevant to your target that may help you further your research goals.

Abcam antibodies are extensively validated in a wide range of species and applications, so please check the reagent specifications meet your scientific needs before purchasing. If you have any questions or bespoke requirements, simply visit the Contact Us page to send us an inquiry or contact our Support Team ahead of purchase.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Frataxin often known by the alternate name FXN is a mitochondrial protein with a mass of approximately 21000 Dalton. It is expressed mainly in tissues with high energy demands like the heart liver and pancreas. Frataxin plays an important role in iron-sulfur cluster assembly which is essential for various cellular processes. The protein is a part of mitochondria where it regulates iron homeostasis and prevents oxidative damage by minimizing iron-induced free radical generation.

Biological function summary

Several cellular processes depend on the correct function of this protein. Frataxin assists in forming iron-sulfur clusters acting within a multiprotein complex in the mitochondria. The complex includes proteins such as ISCU which are involved in the assembly and repair of iron-sulfur clusters. These clusters are necessary for supporting mitochondrial electron transport and other fundamental metabolic pathways that require iron-sulfur dependencies.

Pathways

Frataxin's involvement extensively affects the mitochondrial respiratory chain and the mitochondrial biogenesis process. It plays a role in the electron transport chain by stabilizing iron-sulfur-containing complexes. NAB is one associated protein that interacts closely within these pathways sharing a connection through iron-sulfur cluster transportation and assembly systems. Efficient function of these pathways ensures a proper energetic output of cells.

Associated diseases and disorders

Frataxin mutations are directly linked to Friedreich's ataxia a neurodegenerative disease causing progressive damage to the nervous system. The deficiency or dysfunction in frataxin causes accumulation of iron in mitochondria leading to increased oxidative stress. Another related disorder includes heart disease which emerges due to the same oxidative stress pathway. Proteins such as Nfs1 are also involved sharing the responsibility with frataxin in scavenging excess iron protecting against related tissue damage.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184)

    Formalin-fixed, paraffin-embedded human pancreas tissue stained for Frataxin using Anti-Frataxin antibody [FXN/2124] ab268063 at 2 μg/ml in immunohistochemical analysis.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium azide (Anti-Frataxin antibody [FXN/2124] ab268063)

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184)

    Formalin-fixed, paraffin-embedded human pancreas tissue stained for Frataxin using Anti-Frataxin antibody [FXN/2124] ab268063 at 2 μg/ml in immunohistochemical analysis.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium azide (Anti-Frataxin antibody [FXN/2124] ab268063)

  • Protein Array - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184), expandable thumbnail

    Protein Array - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184)

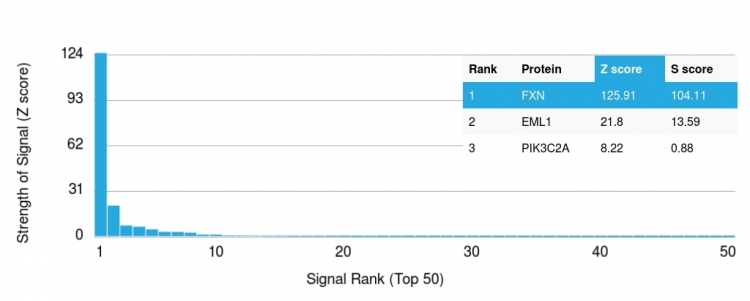

    Protein Array containing more than 19,000 full-length human proteins using Anti-Frataxin antibody [FXN/2124] ab268063.

    Z- and S- Score: The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target. A MAb is considered to specific to its intended target, if the MAb has an S-score of at least 2.5. For example, if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that MAb to protein X is equal to 29.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium azide (Anti-Frataxin antibody [FXN/2124] ab268063)

  • Western blot - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184), expandable thumbnail

    Western blot - Anti-Frataxin antibody [FXN/2124] - BSA and Azide free (ab268184)

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA and Sodium azide (Anti-Frataxin antibody [FXN/2124] ab268063)

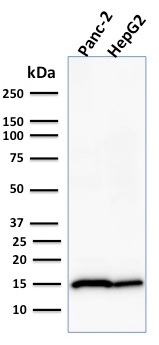

    All lanes: Western blot - Anti-Frataxin antibody [FXN/2124] (Anti-Frataxin antibody [FXN/2124] ab268063) at 2 µg/mL

    Lane 1: Panc-2 (Human pancreatic cancer cell line) cell lysate

    Lane 2: HepG2 (human liver hepatocellular carcinoma cell line) cell lysate

    Predicted band size: 23 kDa
