AB200204

Anti-FXYD1/PLM antibody [EPR16082]

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal FXYD1/PLM antibody. Suitable for IP, WB and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

View Alternative Names

PLM, FXYD1, Phospholemman, FXYD domain-containing ion transport regulator 1, Sodium/potassium-transporting ATPase subunit FXYD1

4 Images

Supplier Data

Immunoprecipitation - Anti-FXYD1/PLM antibody [EPR16082] (AB200204)

FXYD1/PLM was immunoprecipitated from 1mg of Human fetal heart whole cell lysate with ab200204 at 1/120 dilution. Western blot was performed using ab200204 at 1/5000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.

Lane 1 : Human fetal heart whole cell lysate 10ug (Input).

Lane 2 : ab200204 IP in Human fetal heart whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab200204 in Human fetal heart whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

All lanes:

Immunoprecipitation - Anti-FXYD1/PLM antibody [EPR16082] (ab200204)

Predicted band size: 10 kDa

Observed band size: 12 kDa

false

Exposure time: 3s

Supplier Data

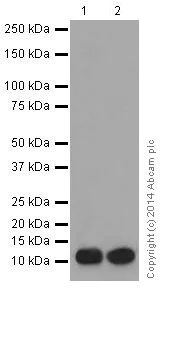

Western blot - Anti-FXYD1/PLM antibody [EPR16082] (AB200204)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-FXYD1/PLM antibody [EPR16082] (ab200204) at 1/10000 dilution

Lane 1:

Human fetal heart tissue lysate at 20 µg

Lane 2:

Human fetal liver tissue lysate at 20 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 10 kDa

Observed band size: 12 kDa

false

Exposure time: 3min

Supplier Data

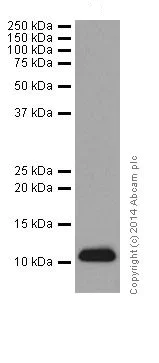

Western blot - Anti-FXYD1/PLM antibody [EPR16082] (AB200204)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-FXYD1/PLM antibody [EPR16082] (ab200204) at 1/1000 dilution

All lanes:

Human skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 10 kDa

Observed band size: 12 kDa

false

Exposure time: 3min

Supplier Data

Western blot - Anti-FXYD1/PLM antibody [EPR16082] (AB200204)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-FXYD1/PLM antibody [EPR16082] (ab200204) at 1/1000 dilution

Lane 1:

Mouse heart lysate at 10 µg

Lane 2:

Rat heart lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 10 kDa

Observed band size: 12 kDa

false

Exposure time: 3min

Carrier free

Anti-FXYD1/PLM antibody [EPR16082] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR16082

Isotype

IgG

Carrier free

Reacts with

Mouse, Rat, Human

Applications

IP, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/120", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" }, "Mouse": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "1/120", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" }, "Rat": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "1/120", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

FXYD1 also known as phospholemman (PLM) is a small transmembrane protein with a molecular mass of approximately 15 kDa. It is expressed mainly in cardiac and skeletal muscles where it plays a mechanical role in regulating ion transport across cell membranes. This protein modulates the activity of the Na+/K+-ATPase pump influencing the transport of sodium and potassium ions which is important for maintaining cellular homeostasis.

Biological function summary

Phospholemman participates in the regulation of cardiac contractility and is involved in muscle relaxation processes. As a component of the Na+/K+-ATPase pump complex it affects the pump's affinity for sodium ions which is important for its normal function. The effector actions of FXYD1 are modulated by phosphorylation allowing it to serve as an important regulator of cardiac output under varying physiological conditions.

Pathways

Phospholemman features in the ion homeostasis and excitability pathway where its action on the Na+/K+-ATPase pump links it to regulation of cardiac action potential. This regulation involves interaction with other membrane proteins like ankyrin which further connects FXYD1 to integrative cardiovascular mechanisms. Additionally FXYD1 impacts membrane hyperpolarization positioning it in the pathway that controls cell excitability and signal transduction in muscle tissues.

Dysregulation of FXYD1 is linked to heart failure and arrhythmias. Altered expression or function of this protein can affect Na+/K+-ATPase efficiency leading to imbalanced ion transport and compromised cardiac function. Interaction with proteins such as cAMP-dependent protein kinase also implicates FXYD1 in various cardiac pathologies influencing the therapeutic targeting of this protein in cardiovascular diseases.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Associates with and regulates the activity of the sodium/potassium-transporting ATPase (NKA) which transports Na(+) out of the cell and K(+) into the cell. Inhibits NKA activity in its unphosphorylated state and stimulates activity when phosphorylated. Reduces glutathionylation of the NKA beta-1 subunit ATP1B1, thus reversing glutathionylation-mediated inhibition of ATP1B1. Contributes to female sexual development by maintaining the excitability of neurons which secrete gonadotropin-releasing hormone.

See full target information FXYD1

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Basic research in cardiology 112:37 PubMed28526910

2017

Expression and regulation of type 2A protein phosphatases and alpha4 signalling in cardiac health and hypertrophy.

Applications

Unspecified application

Species

Rat

Olga Eleftheriadou,Andrii Boguslavskyi,Michael R Longman,Jonathan Cowan,Asvi Francois,Richard J Heads,Brian E Wadzinski,Ali Ryan,Michael J Shattock,Andrew K Snabaitis

View all publications
