Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

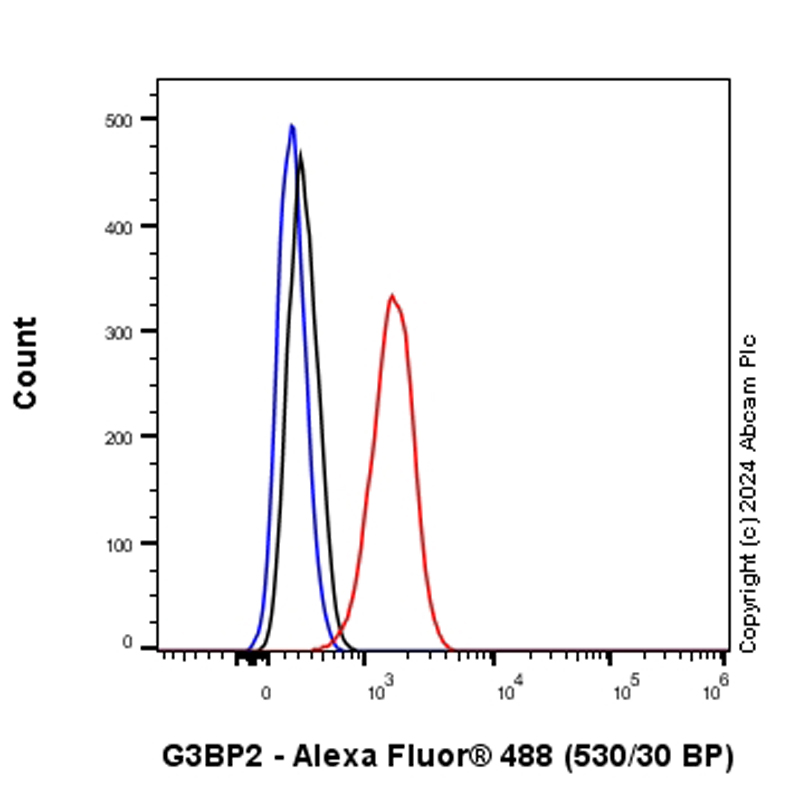

Flow Cytometry (Intracellular) - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling G3BP2 (isoform a) with ab317687 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).

Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling G3BP2 (isoform a) with ab317687 at 1/100 (5.27 ug/ml) dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Positive staining on neurons of human cerebrum (PMID : 33203845). The section was incubated with ab317687 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Rat cerebrum tissue labeling G3BP2 (isoform a) with ab317687 at 1/2000 (0.264 ug/ml) dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Positive staining on neurons of rat cerebrum. The section was incubated with ab317687 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling G3BP2 (isoform a) with ab317687 at 1/2000 (0.264 ug/ml) dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Positive staining on neurons of mouse cerebrum. The section was incubated with ab317687 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• WB

Supplier Data

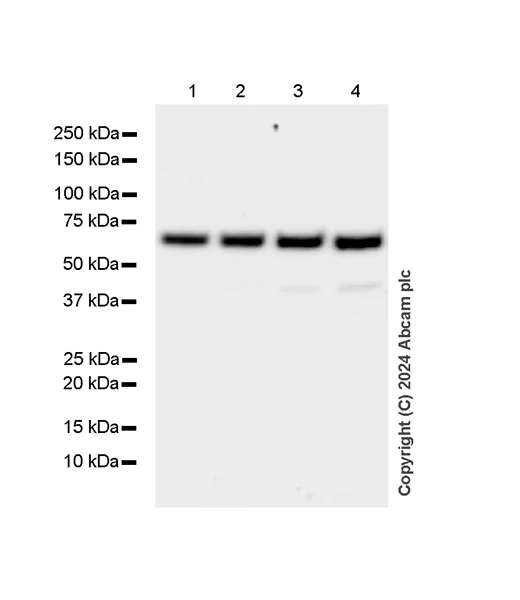

Western blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

The lysates were freshly made and used for Western Blotting immediately to minimize protein degradation.

All lanes:

Western blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] (<a href='/en-us/products/primary-antibodies/g3bp2-isoform-a-antibody-epr27325-43-ab317687'>ab317687</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

293T (human embryonic kidney epithelial cell) whole cell lysate at 20 µg

Lane 3:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg

Lane 4:

PC-12 (rat adrenal gland pheochromocytoma cell) whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 70 kDa

false

Exposure time: 26s

• WB

Supplier Data

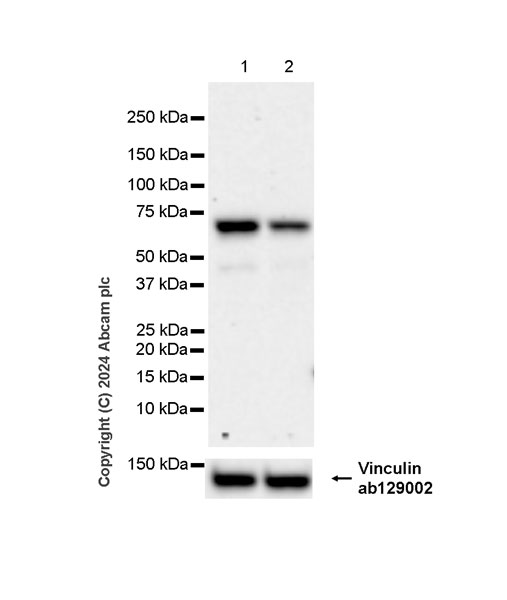

Western blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.

All lanes:

Western blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] (<a href='/en-us/products/primary-antibodies/g3bp2-isoform-a-antibody-epr27325-43-ab317687'>ab317687</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

HeLa transfected with siRNA specifically targeting G3BP2 whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 70 kDa,124 kDa

false

Exposure time: 81s

• WB

Supplier Data

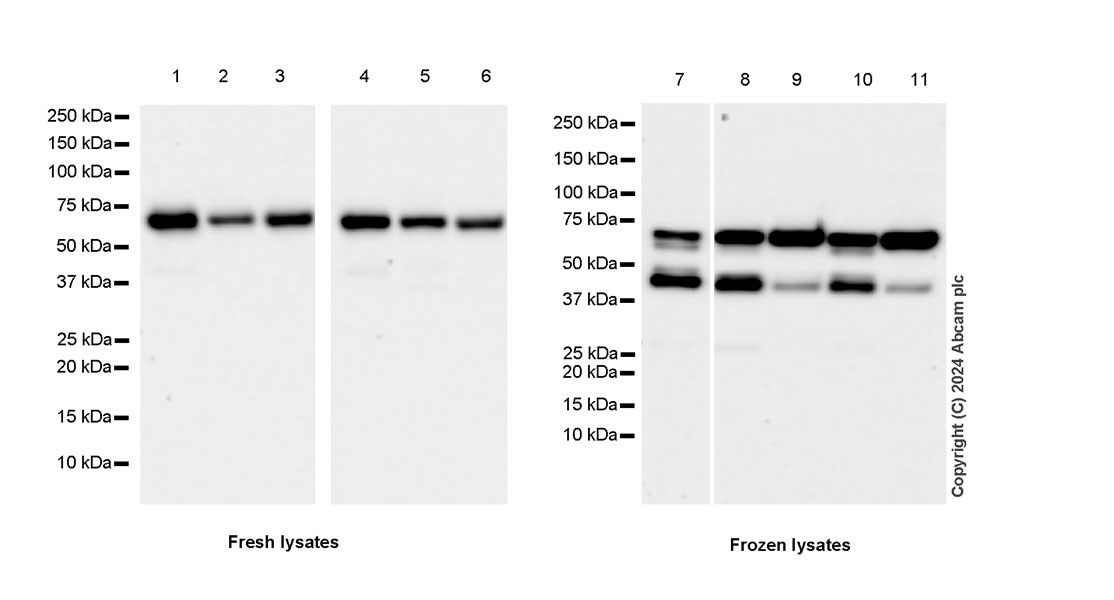

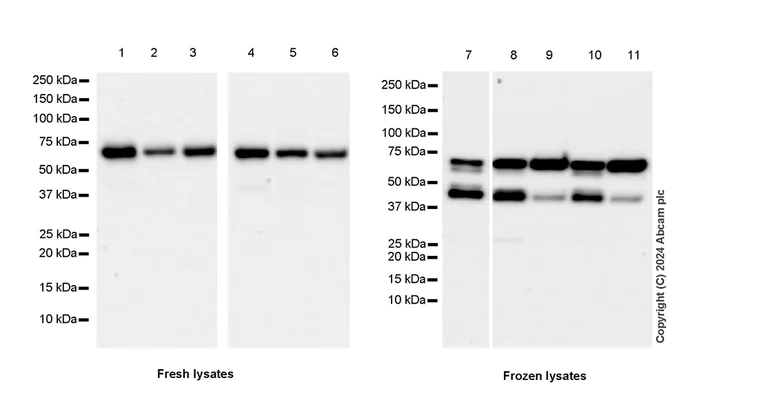

Western blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

The lysates were freshly made and used for Western Blotting immediately to minimize protein degradation.

The bands beneath the target band (40 kDa) are likely to be degraded target fragments.

Exposure time : Lanes 1-6 : 10 seconds, Lanes 7-11 : 48 seconds

All lanes:

Western blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] (<a href='/en-us/products/primary-antibodies/g3bp2-isoform-a-antibody-epr27325-43-ab317687'>ab317687</a>) at 1/1000 dilution

Lanes 1 and 9:

Mouse brain tissue lysate at 20 µg

Lane 2:

Mouse liver tissue lysate at 20 µg

Lane 3:

Mouse testis tissue lysate at 20 µg

Lane 4:

Rat brain tissue lysate at 20 µg

Lane 5:

Rat liver tissue lysate at 20 µg

Lane 6:

Rat testis tissue lysate at 20 µg

Lane 7:

Human cerebellum tissue lysate at 20 µg

Lane 8:

Mouse cerebral cortex tissue lysate at 20 µg

Lane 10:

Rat cerebellum tissue lysate at 20 µg

Lane 11:

Rat cerebral cortex tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 70 kDa,40 kDa

false

• Dot

Supplier Data

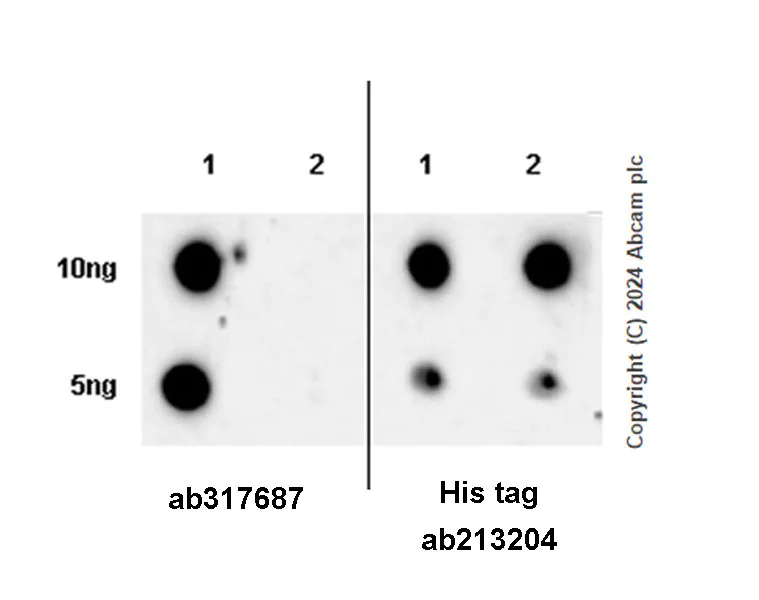

Dot Blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] - BSA and Azide free (AB317688)

This data was developed using ab317687, the same antibody clone in a different buffer formulation.

Dot blot analysis of G3BP2 (isoform a) using ab317687 at 1 : 1000 (0.527 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.

Lane 1 : His-tagged human G3BP2 fragment Lane 2 : His-tagged human G3BP1 fragment

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody does not cross-react with human G3BP1.

Anti-6X His tag® antibody [EPR20547] - ChIP Grade (ab213204) as total protein control staining at 1/5000 dilution.

All lanes:

Dot Blot - Anti-G3BP2 (isoform a) antibody [EPR27325-43] (<a href='/en-us/products/primary-antibodies/g3bp2-isoform-a-antibody-epr27325-43-ab317687'>ab317687</a>) at 1/1000 dilution

Lane 1:

His-tagged human G3BP2 recombinant protein

Lane 2:

His-tagged human G3BP1 recombinant protein

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s
