Anti-GABA B Receptor 1 antibody [2D7]

5 product images

•

  Western blot - Anti-GABA B Receptor 1 antibody [2D7] (ab55051)

  GABA B Receptor 1 antibody (ab55051) at 1ug/lane + IMR-32 cell lysate at 25ug/lane.


  This image was generated using the ascites version of the product.

  All lanes: Western blot - Anti-GABA B Receptor 1 antibody [2D7] (ab55051)

  Predicted band size: 108 kDa

•

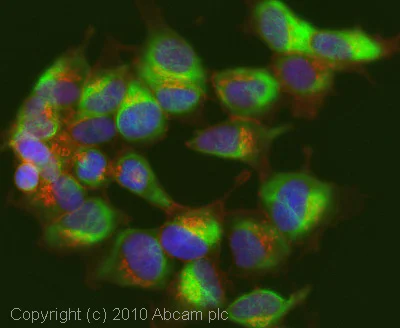

  Immunocytochemistry/ Immunofluorescence - Anti-GABA B Receptor 1 antibody [2D7] (ab55051)

  ICC/IF image of ab55051 stained SHSY5Y cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab55051, 5μg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.


  This image was generated using the ascites version of the product.

•

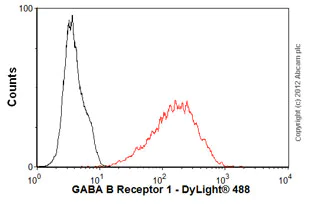

  Flow Cytometry - Anti-GABA B Receptor 1 antibody [2D7] (ab55051)

  Overlay histogram showing SH-SY5Y cells stained with ab55051 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab55051, 0.5μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG2a [ICIGG2A] (Mouse IgG2a, Kappa Monoclonal [B12/8] - Isotype Control ab91361, 1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in SH-SY5Y cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.


  This image was generated using the ascites version of the product.

•

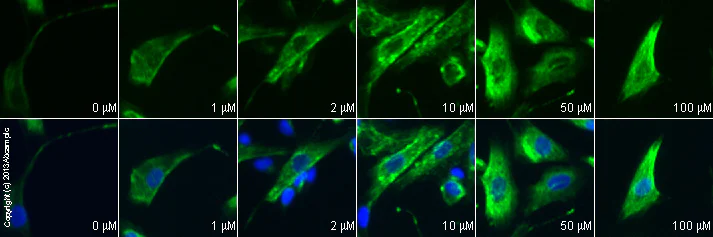

  Immunocytochemistry/ Immunofluorescence - Anti-GABA B Receptor 1 antibody [2D7] (ab55051)

  ab55051 staining GABA B receptor 1 in SK-N-SH cells treated with L-Glutamate (L-Glutamate, excitatory neurotransmitter ab120049), by ICC/IF. Internalization of GABA B receptor 1 correlates with increased concentration of L-Glutamate, as described in literature.
  The cells were incubated at 37°C for 30 minutes in media containing different concentrations of L-Glutamate, excitatory neurotransmitter ab120049 (L-Glutamate) in DMSO, fixed with 4% formaldehyde for 10 minutes at room temperature and blocked with PBS containing 10% goat serum, 0.3 M glycine, 1% BSA and 0.1% tween for 2h at room temperature. Staining of the treated cells with ab55051 (1 μg/ml) was performed overnight at 4°C in PBS containing 1% BSA and 0.1% tween. A DyLight 488 goat anti-mouse polyclonal antibody (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/250 dilution was used as the secondary antibody. Nuclei were counterstained with DAPI and are shown in blue.


  This image was generated using the ascites version of the product.

•

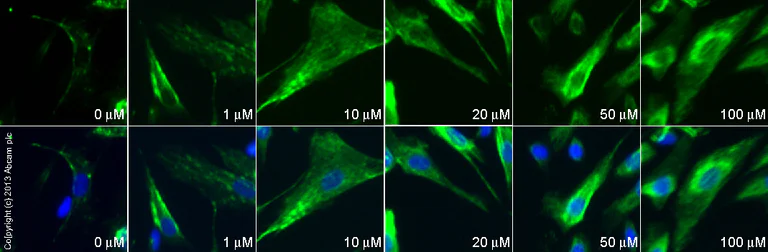

  Immunocytochemistry/ Immunofluorescence - Anti-GABA B Receptor 1 antibody [2D7] (ab55051)

  ab55051 staining GABA B receptor 1 in SK-N-SH cells treated with NMDA (NMDA, excitotoxic amino acid ab120052), by ICC/IF. Internalization of GABA B receptor 1 correlates with increased concentration of NMDA, as described in literature.
  The cells were incubated at 37°C for 30 minutes in media containing different concentrations of NMDA, excitotoxic amino acid ab120052 (NMDA) in DMSO, fixed with 4% formaldehyde for 10 minutes at room temperature and blocked with PBS containing 10% goat serum, 0.3 M glycine, 1% BSA and 0.1% tween for 2h at room temperature. Staining of the treated cells with ab55051 (1 μg/ml) was performed overnight at 4°C in PBS containing 1% BSA and 0.1% tween. A DyLight 488 goat anti-mouse polyclonal antibody (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/250 dilution was used as the secondary antibody. Nuclei were counterstained with DAPI and are shown in blue.


  This image was generated using the ascites version of the product.
