Anti-Galectin 3 antibody [EPR2774] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Galectin 3 antibody [EPR2774] - BSA and Azide free (AB247475)

This data was developed using ab76466, the same antibody clone in a different buffer formulation.

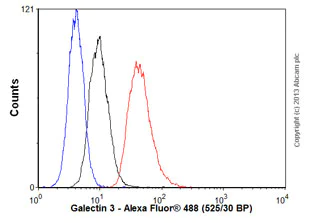

Overlay histogram showing THP1 cells stained with ab76466 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% human serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab76466, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1µg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Galectin 3 antibody [EPR2774] - BSA and Azide free (AB247475)

This data was developed using ab76466, the same antibody clone in a different buffer formulation.ab76466, at a 1/100 dilution, staining Galectin 3 in HeLa cells by Immunofluorescence.

• WB

Lab

Western blot - Anti-Galectin 3 antibody [EPR2774] - BSA and Azide free (AB247475)

This data was developed using ab76466, the same antibody clone in a different buffer formulation.

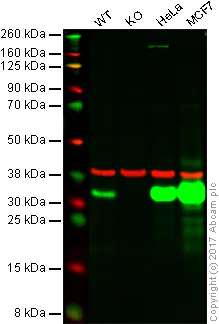

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)

Lane 2 : Galectin 3 (KO) knockout HAP1 whole cell lysate (20 μg)

Lane 3 : HeLa whole cell lysate (20 μg)

Lane 4 : MCF7 whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab76466 observed at 35 kDa. Red - loading control, ab8245, observed at 37 kDa.

ab76466 was shown to specifically react with Galectin 3 (KO) when Galectin 3 (KO) knockout samples were used. Wild-type and Galectin 3 (KO) knockout samples were subjected to SDS-PAGE. ab76466 and ab8245 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 2000 dilution and 1/10000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Galectin 3 antibody [EPR2774] (<a href='/en-us/products/primary-antibodies/galectin-3-antibody-epr2774-ab76466'>ab76466</a>)

Predicted band size: 26 kDa

Observed band size: 35 kDa

false

• WB

Unknown

Western blot - Anti-Galectin 3 antibody [EPR2774] - BSA and Azide free (AB247475)

This data was developed using ab76466, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-Galectin 3 antibody [EPR2774] (<a href='/en-us/products/primary-antibodies/galectin-3-antibody-epr2774-ab76466'>ab76466</a>) at 1/5000 dilution

Lane 1:

HeLa cell lysate at 10 µg

Lane 2:

SW480 cell lysate at 10 µg

Lane 3:

A431 cell lysate at 10 µg

Lane 4:

MCF7 cell lysate at 10 µg

Secondary

All lanes:

goat anti-rabbit HRP at 1/2000 dilution

Predicted band size: 26 kDa

Observed band size: 30 kDa

false
