Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free

• IHC-P

Lab

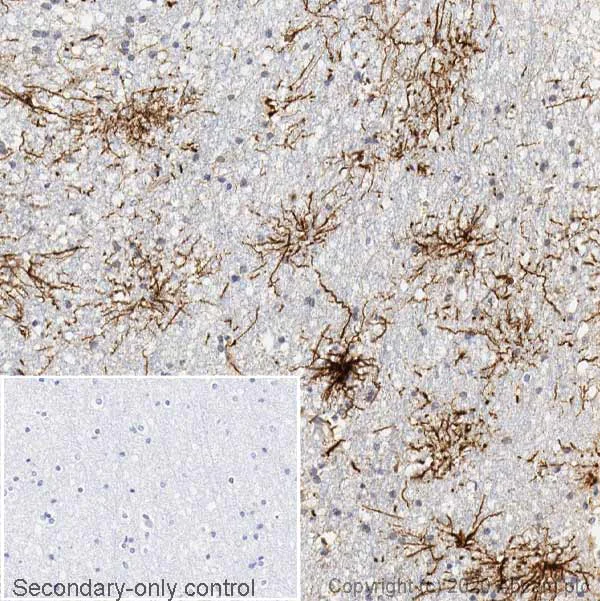

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

This data was produced using ab279290, the same clone in a different formulation.

IHC image of GFAP staining in a section of formalin-fixed paraffin-embedded normal human cerebral cortex performed on a Leica BOND^TM system using the standard protocol F.

The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab279290, 1μg/ml, for 15 mins at room temperature. A rabbit anti-mouse IgG2a, was added for 8 mins at room temperature and detected using an HRP conjugated goat anti-rabbit compact polymer system. DAB was used as the chromogen.

The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.
For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• Flow Cyt (Intra)

Supplier Data

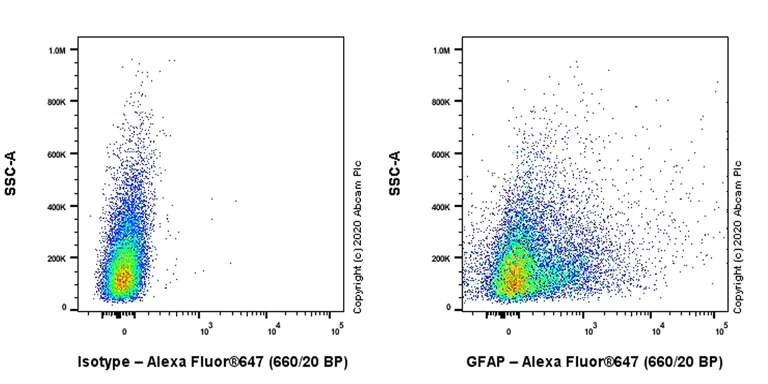

Flow Cytometry (Intracellular) - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

This data was produced using ab279290, the same clone in a different formulation.

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized rat primary neural/glia cells labelling GFAP with ab279290 at 1/1000 dilution (0.1μg)/ Right compared with a Mouse monoclonal IgG isotype control/ Left. Goat Anti-Mouse IgG (Alexa Fluor^® 647, ab150119) at 1/2000 dilution was used as the secondary antibody.

• ICC

Supplier Data

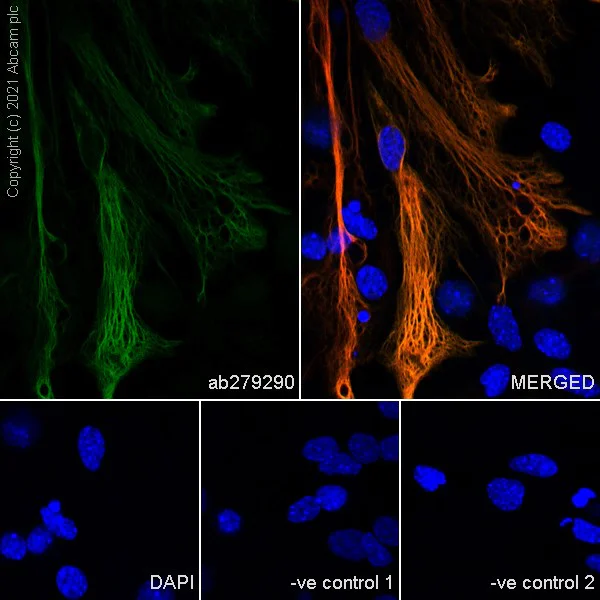

Immunocytochemistry - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

This data was developed using ab279290, the same antibody clone in a different buffer formulation.

Immunocytochemical analysis of 4% PFA-fixed, 0.1% Triton X-100 permeabilized mouse neural/glia tissue labeling GFAP with ab279290 at 1/50 (16 μg/ml) dilution followed by ab98736 Goat Anti-Mouse IgG (DyLight® 488) pre-adsorbed at 1/1000 dilution (Green). Positive staining on mouse primary astrocytes is observed. The nuclear counterstain was DAPI (Blue).

Counterstain : ab207165 anti-GFAP rabbit mAb at 1/1000 dilution with secondary antibody ab150088 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 594) pre-adsorbed at 1/1000 dilution.

Negative controls : ab279290 with secondary ab150080 at 1/500 dilution; and ab207165 at 1/1000 dilution with secondary ab98376 at 1/1000 dilution

• IHC-Fr

Lab

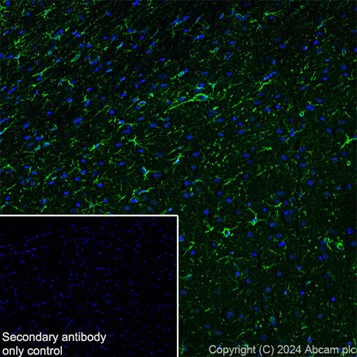

Immunohistochemistry (Frozen sections) - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized fresh frozen mouse cerebrum tissue labeling GFAP with ab279290 at 1/200 (10 µg/ml) dilution followed by ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) at 1/1000 (2μg/mL) dilution. Positive staining on mouse cerebrum is observed. The nuclear counterstain was DAPI (blue).

Secondary antibody control : Secondary antibody is ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution.

This data was developed using ab279290, the same antibody clone in a different buffer formulation.

• IHC-Fr

Lab

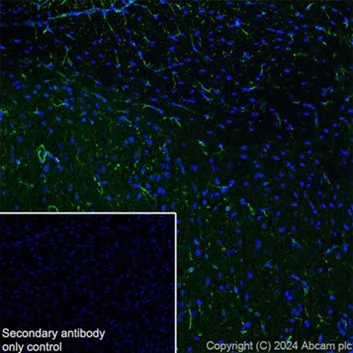

Immunohistochemistry (Frozen sections) - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized fresh frozen rat cerebrum tissue labeling GFAP with ab279290 at 1/200 (10 µg/ml) dilution followed by ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) at 1/1000 (2μg/mL) dilution. Positive staining on rat cerebrum is observed. The nuclear counterstain was DAPI (blue).

Secondary antibody control : Secondary antibody is ab150113 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution.

This data was developed using ab279290, the same antibody clone in a different buffer formulation.

• IP

Supplier Data

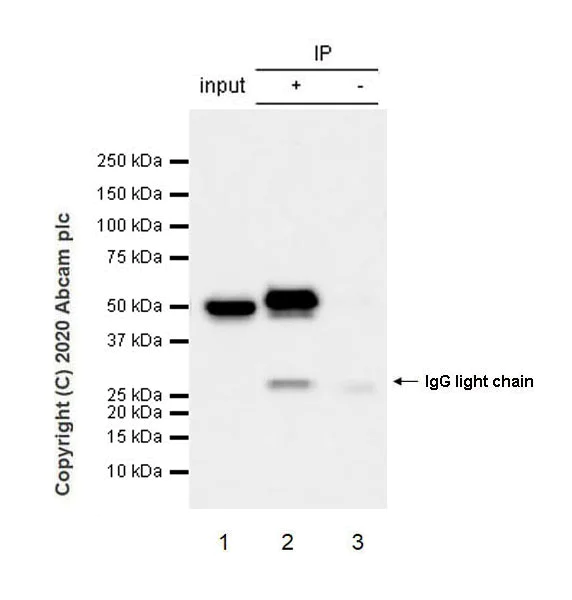

Immunoprecipitation - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

This data was produced using ab279290, the same clone in a different formulation.

GFAP was immunoprecipitated from 0.35 mg rat brain tissue lysate 10 μg with ab279290 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab279290 at 1/1000 dilution. mouse IgG for IP (HRP) (ab131368) was used at 1/5000 dilution.

Lane 1 : Rat brain tissue lysate 10μg.

Lane 2 : ab279290 IP in rat brain tissue lysate.

Lane 3 : Mouse monoclonal IgG2a (ab18413) instead of ab279290 in rat brain tissue lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 23 seconds.

All lanes:

Immunoprecipitation - Anti-GFAP antibody [EPR1034Y] - Astrocyte marker - Mouse IgG2a (Chimeric) (<a href='/en-us/products/primary-antibodies/gfap-antibody-epr1034y-astrocyte-marker-mouse-igg2a-chimeric-ab279290'>ab279290</a>)

Predicted band size: 49 kDa

Observed band size: 50 kDa

false

• WB

Supplier Data

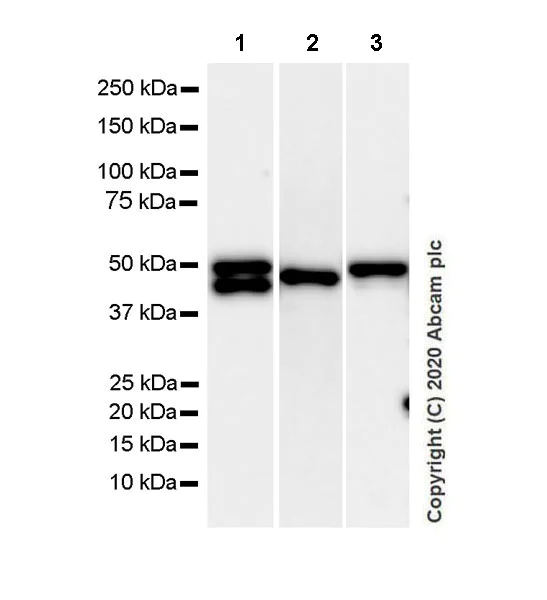

Western blot - Anti-GFAP antibody [EPR1034Y] - Mouse IgG2a (Chimeric) - BSA and Azide free (AB279302)

This data was produced using ab279290, the same clone in a different formulation.

Blocking/Dilution buffer : 5% NFDM/TBST.

The molecular weight observed is consistent with the literature (PMID : 824020, 2294, 6340792).

Exposure times : Lane 1 : 3.25 seconds; Lane 2 : 48 seconds; Lane 3 : 10 seconds.

All lanes:

Western blot - Anti-GFAP antibody [EPR1034Y] - Astrocyte marker - Mouse IgG2a (Chimeric) (<a href='/en-us/products/primary-antibodies/gfap-antibody-epr1034y-astrocyte-marker-mouse-igg2a-chimeric-ab279290'>ab279290</a>) at 1/1000 dilution

Lane 1:

Human brain tissue lysate at 20 µg

Lane 2:

Mouse brain tissue lysate at 20 µg

Lane 3:

Rat brain tissue lysate at 20 µg

Secondary

All lanes:

Peroxidase-Conjugated Goat anti-Mouse IgG (H+L) at 1/5000 dilution

Predicted band size: 49 kDa

Observed band size: 40-50 kDa

false
