Anti-GFAP antibody [EPR19996] - Astrocyte Marker

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

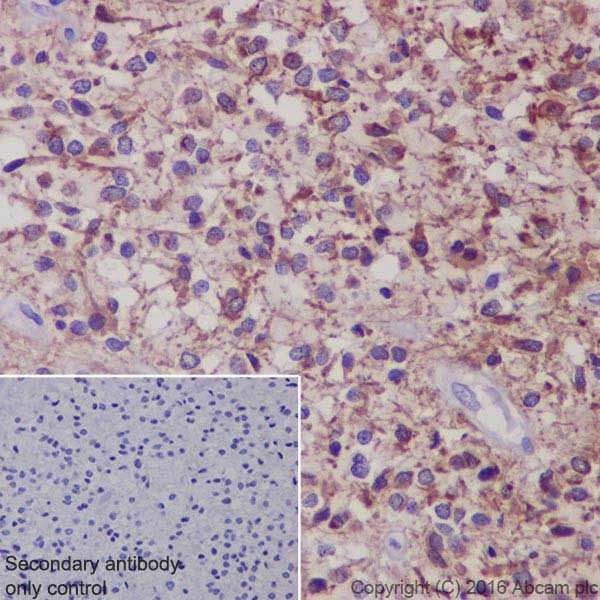

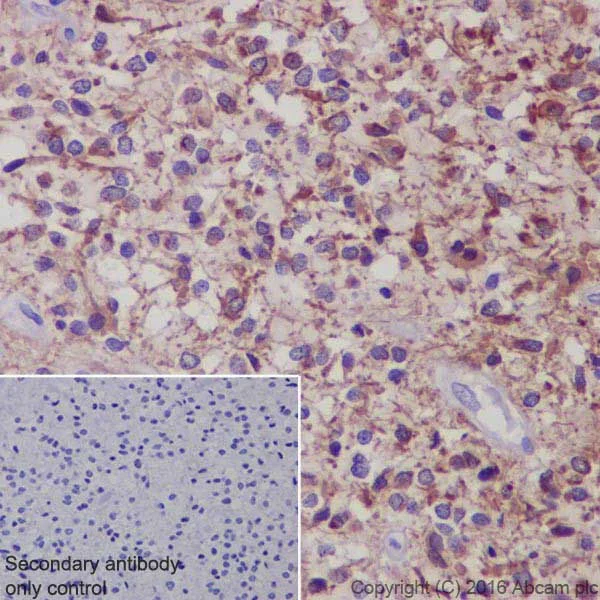

Immunohistochemical analysis of paraffin-embedded human glioma tissue labeling GFAP with ab207165 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Cytoplasmic staining on tumor cells of human glioma is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

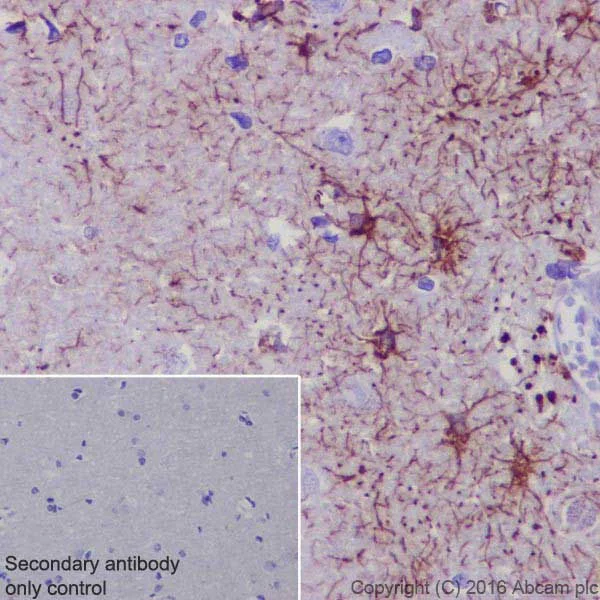

Immunohistochemical analysis of paraffin-embedded human cerebrum tissue labeling GFAP with ab207165 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Cytoplasmic and membrane staining on glial cells of human cerebrum [PMID : 15378652] is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IP

Supplier Data

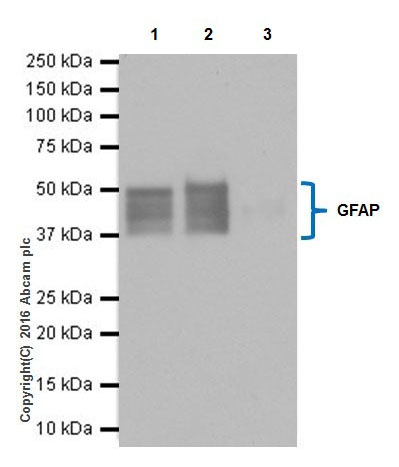

Immunoprecipitation - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

GFAP was immunoprecipitated from 0.35 mg of human brain lysate with ab207165 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab207165 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : Human brain lysate 10μg (Input).

Lane 2 : ab207165 IP in human brain lysate.

Lane 3 : Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) instead of ab207165 in human brain lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

All lanes:

Immunoprecipitation - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (ab207165)

Predicted band size: 49 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

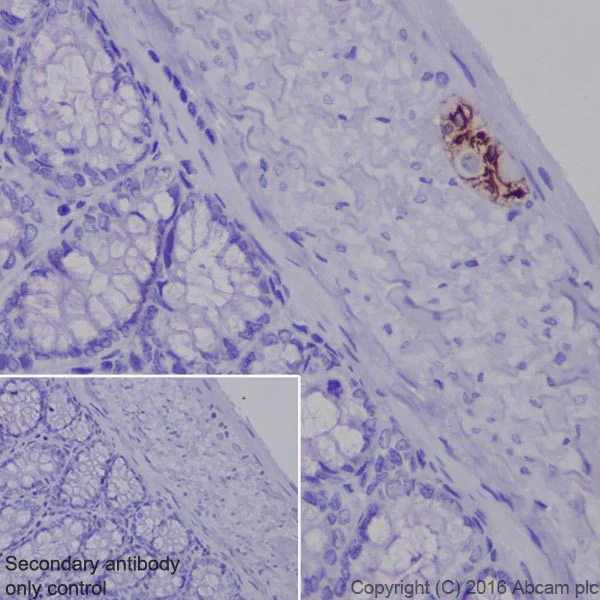

Immunohistochemical analysis of paraffin-embedded rat colon tissue labeling GFAP with ab207165 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Specific cytoplasmic staining on myenteric nerve plexus, and negative on epithelial cells and smooth muscle cells of rat colon is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

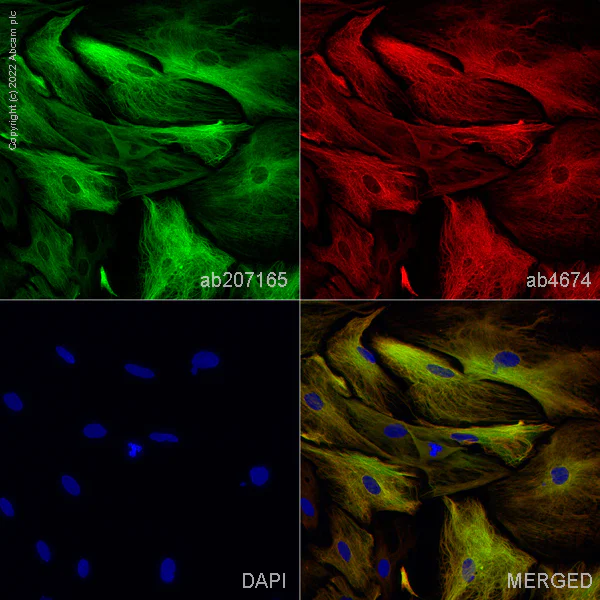

Immunofluorescence staining of GFAP using ab207165 in primary rat hippocampal mixed glia, (prepared from P2 rat hippocampal brain area, obtained from Transnetyx Tissue by BrainBits, LLC, cat.no. SDPHP4m), DIV4. The cells were fixed with 100% MeOH (5 min), permeabilized with 0.1% Triton-X-100 (in PBS) for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab207165 at 0.1 μg/ml and ab4674, Anti-GFAP antibody, at 1/1000 dilution. Cells were then incubated with ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and ab150176, Goat Anti-Chicken IgY H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue). Images were acquired with the Perkin Elmer Operetta HCA and a maximum intensity projection of confocal sections is shown. The antibody ab207165 gave comparable results using 4% formaldehyde fixation (10 min).

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

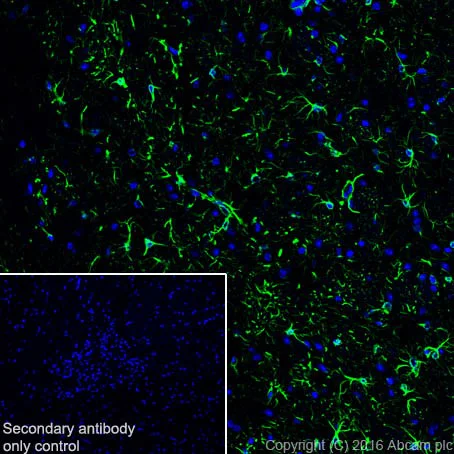

Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized frozen mouse cerebrum tissue labeling GFAP with ab207165 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Cytoplasmic and membrane staining on glial cells of mouse cerebrum is observed.

The nuclear counterstain is DAPI (blue).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

Immunohistochemical analysis of paraffin-embedded mouse colon tissue labeling GFAP with ab207165 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Specific cytoplasmic staining on myenteric nerve plexus, and negative on epithelial cells and smooth muscle cells of mouse colon is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

Immunohistochemical analysis of paraffin-embedded rat hippocampus tissue labeling GFAP with ab207165 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Cytoplasmic and membrane staining on glial cells of rat hippocampus is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

Immunohistochemical analysis of paraffin-embedded mouse cerebrum tissue labeling GFAP with ab207165 at 1/400 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Cytoplasmic and membrane staining on glial cells of mouse cerebrum is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

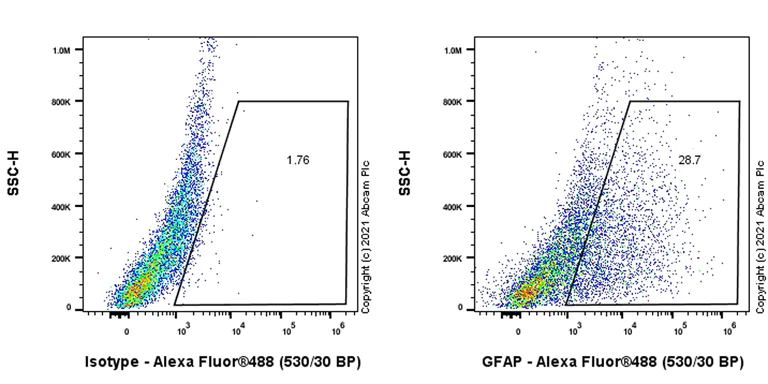

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Mouse primary brain cells cells labelling GFAP with ab207165 at 1/500 dilution (0.1ug)/ Right compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control. A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

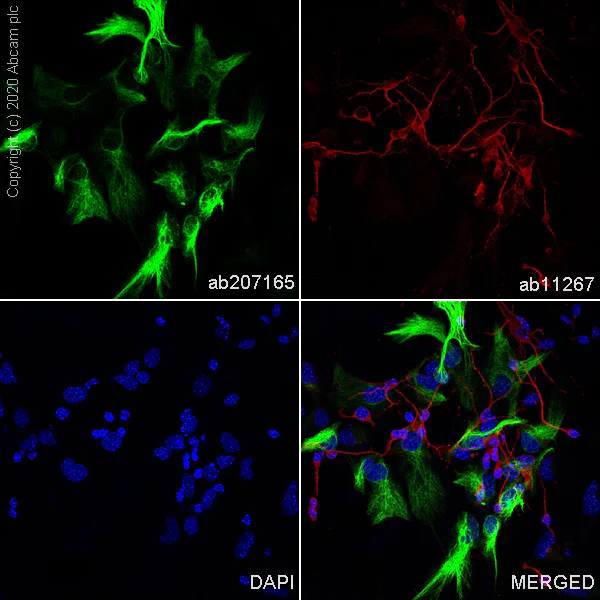

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mouse primary neural/glia cells labelling GFAP with ab207165 at 1/1000 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (2 µg/mL) (Green). Confocal image showing cytoplasmic staining in mouse primary astrocyte. Confocal scanning Z step was set as 0.3 µm followed by image processing with maximum Z projection. ab11267 Anti-MAP2 mouse monoclonal antibody was used to counterstain tubulin at 1/500 dilution (4 µg/mL) followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 dilution (2 µg/mL) (Red). The Nuclear counterstain was DAPI (Blue).

• WB

Supplier Data

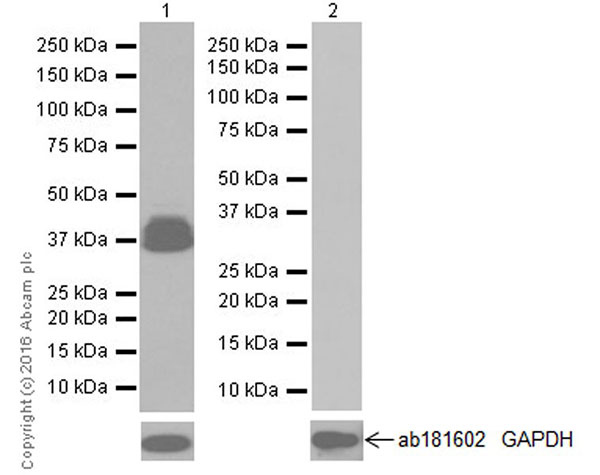

Western blot - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

Blocking/Dilution buffer : 5% NFDM/TBST.

The molecular weight observed is consistent with the literature.

Negative control : NIH/3T3 (PMID : 824020; PMID : 2294; PMID : 6340792; PMID : 9466565).

Lane 1:

Western blot - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (ab207165) at 1/10000 dilution

Lane 2:

Western blot - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (ab207165) at 1/1000 dilution

Lane 1:

Human brain lysate at 10 µg

Lane 2:

NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 49 kDa

Observed band size: 40-54 kDa

false

Exposure time: 1min

• WB

Supplier Data

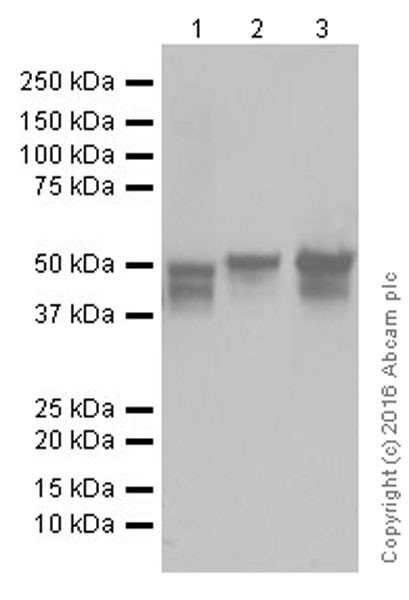

Western blot - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (AB207165)

Blocking/Dilution buffer : 5% NFDM/TBST.

The molecular weight observed is consistent with the literature (PMID : 824020; PMID : 2294; PMID : 6340792).

All lanes:

Western blot - Anti-GFAP antibody [EPR19996] - Astrocyte Marker (ab207165) at 1/5000 dilution

Lane 1:

Mouse brain lysate at 10 µg

Lane 2:

Rat brain lysate at 10 µg

Lane 3:

Rat cerebellum lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 49 kDa

Observed band size: 40-54 kDa

false

Exposure time: 1s
