Anti-GFP antibody

11 product images

•

  This image is courtesy of Bart Rountree

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFP antibody (ab6673)

  Immunofluorescence of TGN mouse liver labeling GFP on hepatocytes with ab6673.

•

  Suarez-Bregua et al PLoS One. 2017 Oct 17;12(10):e0186444. doi: 10.1371/journal.pone.0186444. eCollection 2017. Fig 1. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

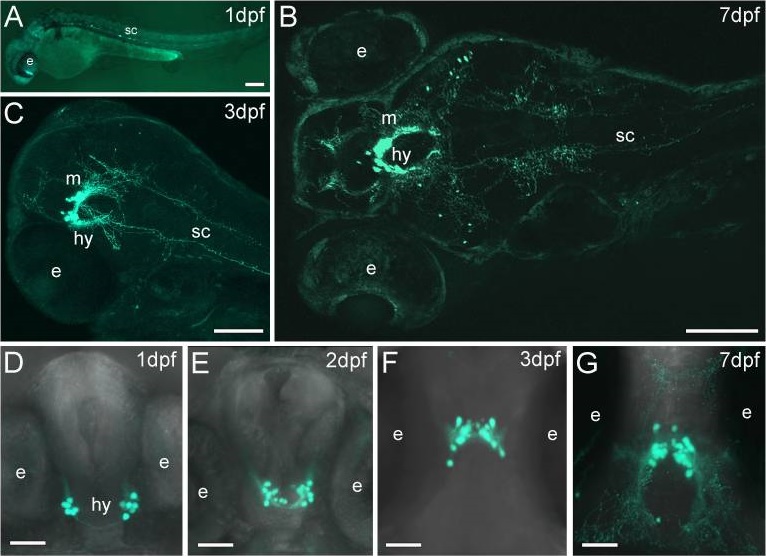

  Immunohistochemistry - Free Floating - Anti-GFP antibody (ab6673)

  Pth4:eGFP transgenic zebrafish embryos at 1 and 2 dpf were fixed with 4% PFA and washed in PBST. They were then washed in PBDT (1% BSA, 1% DMSO, 0.1% Triton X-100 in PBS, pH 7.4), blocked in 10% normal goat serum/PBDT, and incubated overnight at 4°C with primary antibodies to HuC/D (1/100) and GFP (1/400, Abcam ab6673). Further PBST washes and blocking were followed by secondary antibodies overnight at 4°C. Hoechst 34580 was added to stain nuclei (1/2500). After further PBDT and PBS washes, embryos were mounted for confocal imaging.


  Abbreviation: e, eye; hy, hypothalamus; m, midbrain; sc, spinal cord. Scale bars: 100 μm (A-C) 50 μm (D-G).

•

  Borkowska et al PLoS One. 2016 May 31;11(5):e0156082. doi: 10.1371/journal.pone.0156082. eCollection 2016. Fig 5. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunocytochemistry/ Immunofluorescence - Anti-GFP antibody (ab6673)

  In utero electroporation of Disc1 and Disc1-100P constructs into wild-type neocortex and analysis at P21.

  (Panels D-E") Expression of the constructs was assessed.

  (Panels D-D'') 2 days after transfection in vitro.

  (Panels E-E'') at P21 in vivo.

  Immunochemistry for FLAG and GFP showed that constructs encoding either WT Disc1, the Disc1-100P variant, or GFP alone, expressed these protein species in transfected HEK-293 cells in vitro (Fig 5D–5D") and in P21 postmitotic cortical neurons in vivo (Fig 5E–5E")

•

  Goldman et al PLoS One. 2018 Jan 12;13(1):e0191245. doi: 10.1371/journal.pone.0191245. eCollection 2018. Fig 5. Reproduced under the Creative Commons license https://creativecommons.org/publicdomain/zero/1.0/

  Immunohistochemistry (Frozen sections) - Anti-GFP antibody (ab6673)

  Immunofluorescence for assessment of GFP⁺ myofibers in rat tissue.

  VML affected muscle from the 50% MG + HA+LMN group were probed for the presence of GFP. GFP+ fibers were detected in a qualitatively similar magnitude at both 2 and 8 weeks post-injury indicating viable engraftment of donor derived muscle progenitor cells. Scale bars are 1mm for whole mount images, 50 μm for regions of interest.

  A portion of the TA muscle from the defect region was embedded in a talcum-based gel, frozen in 2-methylbutane, and supercooled in liquid nitrogen. Cryosections (8 μm) were prepared and stained using standard protocols for hematoxylin & eosin.

  ab6673 used at a 1/100 dilution.

•

  Cedeno et al PLoS One. 2017 Sep 21;12(9):e0185196. doi: 10.1371/journal.pone.0185196. eCollection 2017. Fig 3. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFP antibody (ab6673)

  Mouse small intestines were washed with DPBS and fixed overnight at 4°C in Zinc formalin. Following sectioning and tissue deparaffanization, antigen retrieval was performed with 10mM Tris base (pH 9.0) buffer using a pressure cooker.


  For immunohistochemistry, sections were quenched of endogenous peroxidases by 3% H₂O₂, and sequentially blocked with Avidin D, biotin, and protein blocking reagents. Primary antibody incubation was conducted at 4°C overnight. Secondary biotinylated antibody was added at a dilution of 1/200, and incubated 2 hours at room temperature. Finally, sections were stained according to the ABC peroxidase protocol and counterstained with hematoxylin.

  ab6673 used at a 1/200 dilution.

  Panel D: Representative anti-eGFP immunofluorescence of macroH2A WT and DKO jejunum counterstained with DAPI (blue).

•

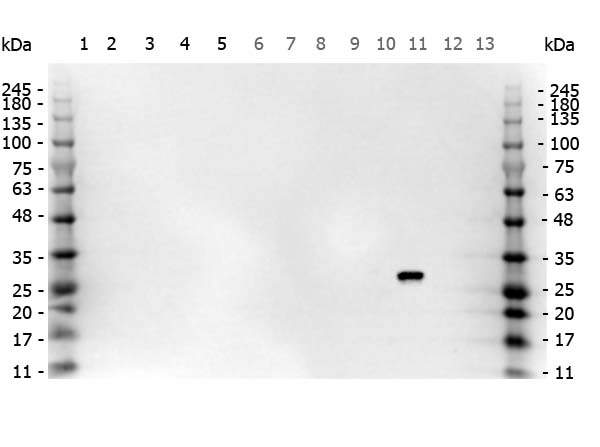

  Western blot - Anti-GFP antibody (ab6673)

  Blocking Buffer: 1% Casein-TTBS for 30 min at RT.

  All lanes: Western blot - Anti-GFP antibody (ab6673) at 1 µg/mL

  Lane 1: HEK-293 (Human epithelial cell line from embryonic kidney) lysate at 10 µg

  Lane 2: HeLa (Human epithelial cell line from cervix adenocarcinoma) lysate at 10 µg

  Lane 3: CHO/K1 lysate at 10 µg

  Lane 4: MDA-MB-231 (Human breast adenocarcinoma cell line) lysate at 10 µg

  Lane 5: A431 (Human epidermoid carcinoma cell line) lysate at 10 µg

  Lane 6: Jurkat (Human T cell leukemia cell line from peripheral blood) lysate at 10 µg

  Lane 7: NIH/3T3 (Mouse embryo fibroblast cell line) lysate

  Lane 8: E-coli HCP control, 50 ng

  Lane 9: FLAG Positive control lysate at 10 µg

  Lane 10: Red fluorescent protein, 50 ng

  Lane 11: Green fluorescent protein, 50 ng

  Lane 12: Glutathinoe-S-Transferase protein, 50 ng

  Lane 13: Maltose Binding protein, 50 ng

  Secondary

  All lanes: Peroxidase goat secondary antibody, 60 min at RT at 1/30000 dilution

  Predicted band size: 27 kDa

•

  IHC - Wholemount - Anti-GFP antibody (ab6673)

  Immunofluorescence Microscopy using FITC Anti-GFP antibody ab6662.

  Tissue: Drosophila melanogaster late stage embryonic central nervous system.

  Fixation: 0.5% PFA.

  Antigen retrieval: Not required.

  Primary antibody: Anti-GFP antibody at a 1/1,000 for 1 h at RT.

  Secondary antibody: AlexaFluor 488™ conjugated anti-Goat antibody at 1/300 for 45 minutes at RT.

  Panel A: shows a lateral view (ventral left).

  Panels B and C: shows ventral views of whole mount embryos at 63x magnification (plus 2x digital zoom).

  In all panels, anterior is up.

  Staining: tau-GFP cell bodies (large arrowhead) and axons of motorneurons (arrow) and interneurons (small arrowhead) as green fluorescent signal.

•

  Immunofluorescence - Anti-GFP antibody (ab6673)

  E5.5 Hex-GFP transgenic mouse embryo stained for GFP using ab6673 at 1/500 dilution. Secondary antibody is a fluorochrome conjugated anti-goat IgG secondary antibody at 1/10,000 for 45 min at RT.


  Staining: GFP as green fluorescent signal with DAPI blue counterstain.

•

  Western blot - Anti-GFP antibody (ab6673)

  All lanes: Western blot - Anti-GFP antibody (ab6673) at 1 µg/mL

  Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) cells at 35 µg

  Lane 2: Mock transfected HeLa cell lysate at 35 µg

  Secondary

  All lanes: IRDye® 800 conjugated Donkey-a-Goat IgG [H&L] at 1/2500 dilution

  Predicted band size: 27 kDa

  Observed band size: 33 kDa

•

  This image is courtesy of an anonymous customer review.

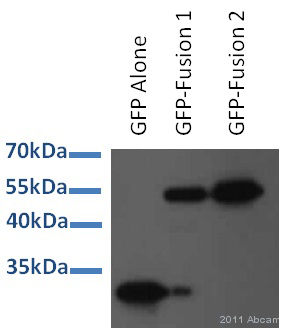

  Western blot - Anti-GFP antibody (ab6673)

  All lanes: Western blot - Anti-GFP antibody (ab6673) at 1/1000 dilution

  Lane 1: MRC5VA lung fibroblast whole cell lysate overexpressing EGFP alone at 15 µg

  Lanes 2 - 3: MRC5VA lung fibroblast whole cell lysate overexpressing an EGFP fusion protein at 15 µg

  Secondary

  All lanes: HRP-conjugated anti-goat polyclonal at 1/10000 dilution

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 27 kDa

  Observed band size: 27 kDa, 55 kDa

  Exposure time: 5s

•

  This image is courtesy of Jeff Klein

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GFP antibody (ab6673)

  Immunohistochemistry of GFP transgenic mouse liver labeling GFP with ab6673.
