Anti-GFPT2 antibody [EPR19095] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

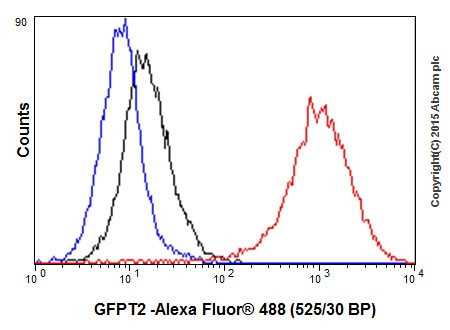

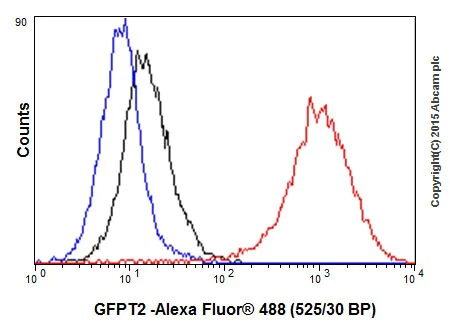

Flow Cytometry (Intracellular) - Anti-GFPT2 antibody [EPR19095] - BSA and Azide free (AB240316)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) cells labeling GFPT2 with ab190966 at 1/150 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue).

Goat anti-Rabbit IgG (Alexa Fluor^® 488) at 1/500 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab190966).

• ICC/IF

Supplier Data

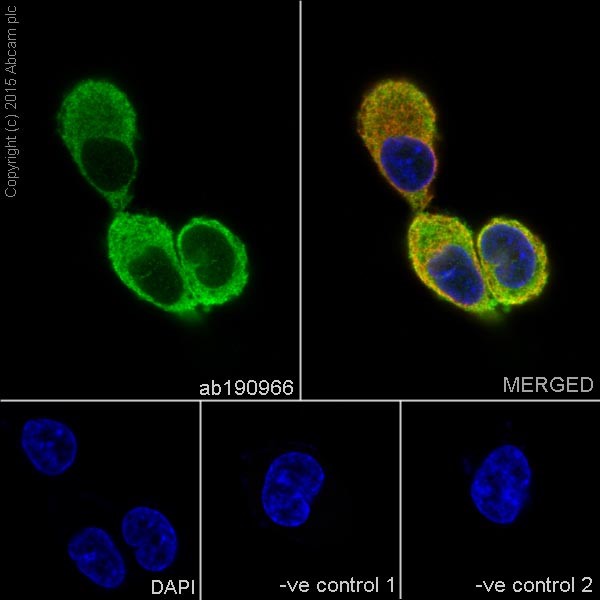

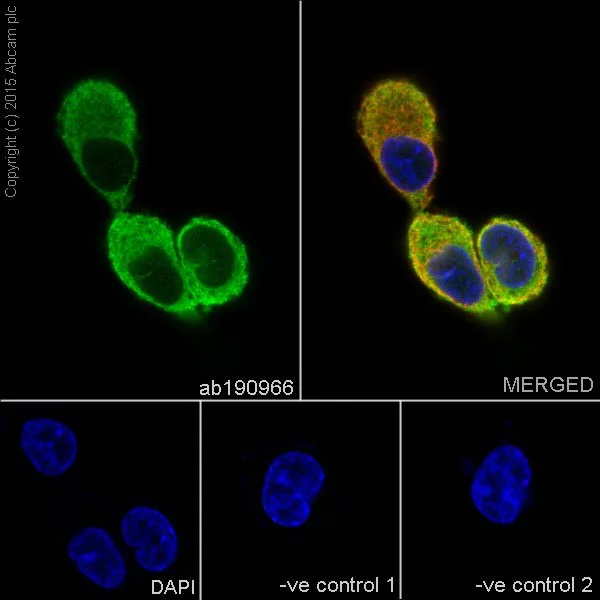

Immunocytochemistry/ Immunofluorescence - Anti-GFPT2 antibody [EPR19095] - BSA and Azide free (AB240316)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized U-87 MG (Human glioblastoma-astrocytoma epithelial cell line) cells labeling GFPT2 with ab190966 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing cytoplasm staining on U-87 MG cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed (ab150120) at 1/1000 dilution (red).

The negative controls are as follows : -

-ve control 1 : ab190966 at 1/500 dilution followed by ab150120 at 1/1000 dilution.

-ve control 2 : ab7291 at 1/1000 dilution followed by ab150077 at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab190966).

• IP

Supplier Data

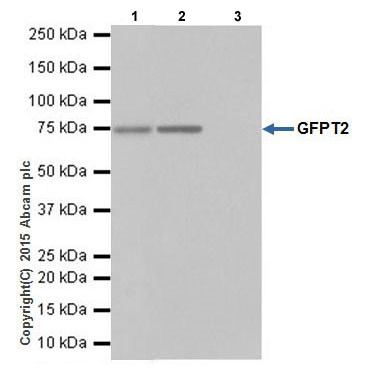

Immunoprecipitation - Anti-GFPT2 antibody [EPR19095] - BSA and Azide free (AB240316)

GFPT2 was immunoprecipitated from 1mg of NIH/3T3 (Mouse embryo fibroblast cells) whole cell lysate with ab190966 at 1/50 dilution.

Western blot was performed from the immunoprecipitate using ab190966 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : NIH/3T3 whole cell lysate 10ug (Input).

Lane 2 : ab190966 IP in NIH/3T3 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab190966 in NIH/3T3 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab190966).

All lanes:

Immunoprecipitation - Anti-GFPT2 antibody [EPR19095] (<a href='/en-us/products/primary-antibodies/gfpt2-antibody-epr19095-ab190966'>ab190966</a>)

Predicted band size: 77 kDa

Observed band size: 77 kDa
