Anti-GLP-1R antibody [EPR21819] - BSA and Azide free

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-GLP-1R antibody [EPR21819] - BSA and Azide free (AB236269)

4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized rat pancreas tissue stained for GLP-1R (green) using ab218532 at 1/500 dilution, followed by AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution. Positive cytoplasmic and membranous staining in rat pancreatic islet cells (PMID : 18541709; 24695667) is observed. Nuclear counterstained with DAPI.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution.

Heat-mediated antigen retrieval using Tris-EDTA buffer (pH9.0) (ab94681).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218532).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GLP-1R antibody [EPR21819] - BSA and Azide free (AB236269)

Immunohistochemical analysis of paraffin-embedded mouse pancreas tissue stained for GLP-1R using ab218532 at 1/2000 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Positive staining of mouse pancreatic islet cells (PMID : 24467746) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Performed heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218532).

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-GLP-1R antibody [EPR21819] - BSA and Azide free (AB236269)

4% paraformaldehyde-fixed, 0.2% Triton X-100 permeabilized mouse pancreas tissue stained for GLP-1R (green) using ab218532 at 1/500 dilution, followed by AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution. Positive cytoplasmic and membranous staining in mouse pancreatic islet cells (PMID : 18541709; 24695667) is observed. Nuclear counterstained with DAPI.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution.

Heat-mediated antigen retrieval using Tris-EDTA buffer (pH9.0) (ab94681).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218532).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GLP-1R antibody [EPR21819] - BSA and Azide free (AB236269)

Immunohistochemical analysis of paraffin-embedded rat pancreas tissue stained for GLP-1R using ab218532 at 1/1000 dilution, followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Cytoplasmic and membranous staining in rat pancreatic islet cells (PMID : 24467746) is observed. Counterstained with hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Performed heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab218532).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GLP-1R antibody [EPR21819] - BSA and Azide free (AB236269)

This data was developed using ab218532, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded (A) Pancreas tissue from wild-type C57BL/6JGpt mice and (B) Pancreas tissue from GLP-1R knockout mice tissue labeling GLP-1R with ab218532 at 1/1000 dilution, followed by a ready to use LeicaDS9800 (Bond^™ Polymer Refine Detection).

Positive staining on (A) Pancreas tissue from wild-type C57BL/6JGpt mice and no staining on (B) Pancreas tissue from GLP-1R knockout mice.
The section was incubated with ab218532 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.
The tissue samples were kindly provided by GemPharmatech. C57BL/6JGpt wildtype mice and GLP-1R-KO homozygous mice (Strain ID : T006049).

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond^™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

• WB

Lab

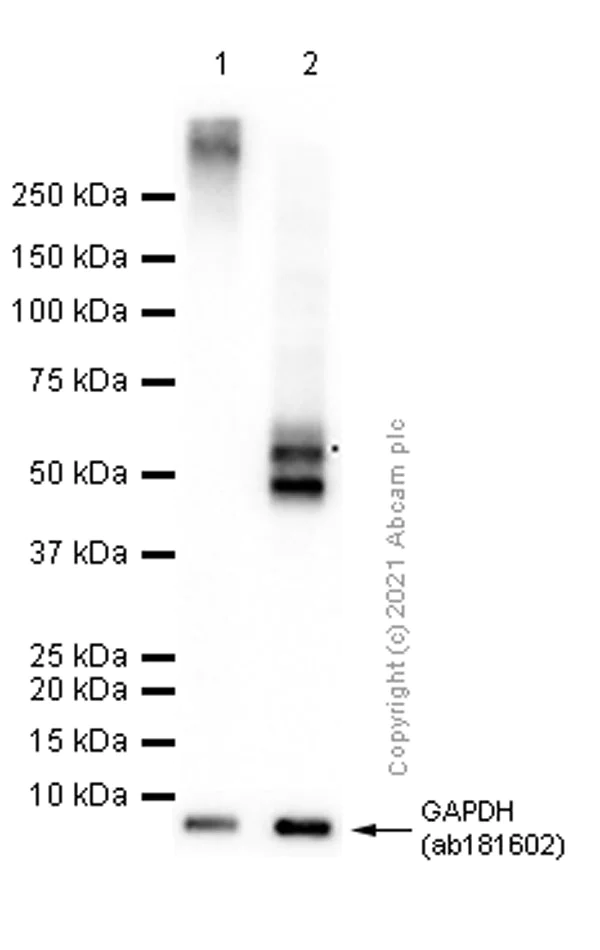

Western blot - Anti-GLP-1R antibody [EPR21819] - BSA and Azide free (AB236269)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This data was developed using ab218532, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-GLP-1R antibody [EPR21819] (<a href='/en-us/products/primary-antibodies/glp-1r-antibody-epr21819-ab218532'>ab218532</a>) at 1/1000 dilution

Lane 1:

Beta-TC-6 (Mouse pancreas insulinoma beta cell) whole cell lysate boiled. at 20 µg

Lane 2:

Beta-TC-6 (Mouse pancreas insulinoma beta cell) whole cell lysate unboiled. at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 53 kDa

Observed band size: 46.66 kDa

false

Exposure time: 20s
