Anti-Glucose Transporter GLUT1 antibody

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glucose Transporter GLUT1 antibody (AB15309)

ab15309 staining Glucose Transporter GLUT1 in human esophagous by Immunohistochemistry (FFPE-sections).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Glucose Transporter GLUT1 antibody (AB15309)

ICC/IF image of ab15309 stained HepG2 cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab15309, 1μg/ml) overnight at +4°C. The secondary antibody (green) was DyLight^® 488 goat anti-rabbit IgG - H&L, pre-adsorbed (ab96899) used at a 1/250 dilution for 1h. Alexa Fluor^® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.

• IHC-P

AbReview39480****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glucose Transporter GLUT1 antibody (AB15309)

ab15309 staining Glucose Transporter GLUT1 (green) in Human red blood cells tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 1% BSA for 30 minutes at room temperature; antigen retrieval was by heat mediation in a citrate buffer, pH 6.0. Samples were incubated with primary antibody (1/500 in PBS-T + 1% PBS) for 12 hours. An Alexa Fluor® 488-conjugated Donkey anti-rabbit IgG polyclonal (1/500) was used as the secondary antibody. Red - autofluorescence of erythrocytes.

This image is courtesy of an Abreview submitted by Heiko Locher

• ICC/IF

AbReview4611****

Immunocytochemistry/ Immunofluorescence - Anti-Glucose Transporter GLUT1 antibody (AB15309)

ab15309 at a 1/100 dilution staining rat cells (neural stem cells from adult subventricular zone) by Immunocytochemistry/Immunofluorescence. The cells were incubated with the antibody for 18 hours and then bound antibody was detected using a Cy3 conjugated Goat anti-rabbit IgG (H + L).

This image is courtesy of an Abreview submitted by Martin Maurer.

• IF

CiteAb

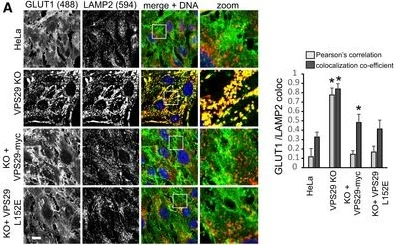

Immunofluorescence - Anti-Glucose Transporter GLUT1 antibody (AB15309)

Immunofluorescence using Anti-Glucose Transporter GLUT1 antibody, ab15309. Publication image from Jimenez-Orgaz, A. et al., 2018, EMBO J, 29158324. Legend direct from paper.

Control of RAB7 activity is not required for retromer‐based sorting of integral membrane proteinsAll images show formaldehyde‐fixed cells. Parental HeLa cells, VPS29 KO cells, and VPS29 KO cells transduced with the indicated VPS29 rescue constructs cells were co‐stained for endogenous GLUT1 (green) and endogenous LAMP2 (red), and co‐localization was quantified over three independent experiments.Parental HeLa cells, VPS29 KO cells, and VPS29 KO cells transduced with the indicated VPS29 rescue constructs were surface‐biotinylated, followed by streptavidin isolation and Western blot‐based quantification of biotinylated surface proteins. Surface GLUT1 was quantified over four independent experiments.RAB7a knockout cells and RAB7 KO cells transduced with the indicated GFP‐RAB7 rescue constructs cells were co‐stained for endogenous GLUT1 (red) and endogenous LAMP2 (blue), and co‐localization was quantified over two independent experiments.Parental HeLa cells, RAB7a knockout cells, and RAB7 KO cells transduced with the indicated GFP‐RAB7 rescue constructs were co‐stained for endogenous CI‐MPR (red) and endogenous TGN46 (blue).Data information : All scale bars = 10 µm, all error bars = SD, and *P < 0.05 in a t‐test of the respective condition compared to the control cells. Source data are available online for this figure.

• IF

CiteAb

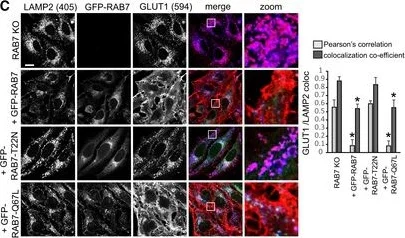

Immunofluorescence - Anti-Glucose Transporter GLUT1 antibody (AB15309)

Immunofluorescence using Anti-Glucose Transporter GLUT1 antibody, ab15309. Publication image from Jimenez-Orgaz, A. et al., 2018, EMBO J, 29158324. Legend direct from paper.

Control of RAB7 activity is not required for retromer‐based sorting of integral membrane proteinsAll images show formaldehyde‐fixed cells. Parental HeLa cells, VPS29 KO cells, and VPS29 KO cells transduced with the indicated VPS29 rescue constructs cells were co‐stained for endogenous GLUT1 (green) and endogenous LAMP2 (red), and co‐localization was quantified over three independent experiments.Parental HeLa cells, VPS29 KO cells, and VPS29 KO cells transduced with the indicated VPS29 rescue constructs were surface‐biotinylated, followed by streptavidin isolation and Western blot‐based quantification of biotinylated surface proteins. Surface GLUT1 was quantified over four independent experiments.RAB7a knockout cells and RAB7 KO cells transduced with the indicated GFP‐RAB7 rescue constructs cells were co‐stained for endogenous GLUT1 (red) and endogenous LAMP2 (blue), and co‐localization was quantified over two independent experiments.Parental HeLa cells, RAB7a knockout cells, and RAB7 KO cells transduced with the indicated GFP‐RAB7 rescue constructs were co‐stained for endogenous CI‐MPR (red) and endogenous TGN46 (blue).Data information : All scale bars = 10 µm, all error bars = SD, and *P < 0.05 in a t‐test of the respective condition compared to the control cells. Source data are available online for this figure.
