Anti-Glucose Transporter GLUT2 antibody [EPR22946-74]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glucose Transporter GLUT2 antibody [EPR22946-74] (AB234440)

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling Glucose Transporter GLUT2 with ab234440 at 1/500 dilution (1.07 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Membranous staining on human liver (PMID/ 30374065). The section was incubated with ab234440 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control/ Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

• Flow Cyt

Unknown

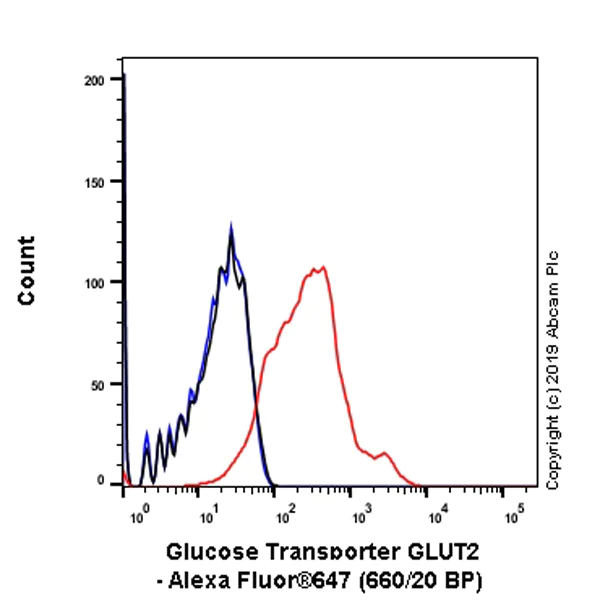

Flow Cytometry - Anti-Glucose Transporter GLUT2 antibody [EPR22946-74] (AB234440)

Flow cytometric analysis of HepG2 (Human hepatocellular carcinoma epithelial cell) cells labelling Glucose Transporter GLUT2 with ab234440 at 1/500 dilution (Red) as compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor^® 647, ab150079) at 1/2000 dilution was used as the secondary antibody.

Gated on viable cells.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glucose Transporter GLUT2 antibody [EPR22946-74] (AB234440)

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling Glucose Transporter GLUT2 with ab234440 at 1/500 dilution (1.07 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human renal tubules. The section was incubated with ab234440 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control/ Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glucose Transporter GLUT2 antibody [EPR22946-74] (AB234440)

Immunohistochemical analysis of paraffin-embedded Human hepatocellular carcinoma tissue labeling Glucose Transporter GLUT2 with ab234440 at 1/500 dilution (1.07 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Membranous staining on human hepatocellular carcinoma (PMID/ 30374065). The section was incubated with ab234440 for 30 mins at RT. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control/ Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-Glucose Transporter GLUT2 antibody [EPR22946-74] (AB234440)

This data was developed using ab260003, the same antibody clone in a different buffer formulation.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver labelling GLUT2 with ab260003 at 1/1000 (B), eNOS with ab317582 at 1/500 dilution (C) and CD163 with ab213612 at 1/8000 dilution (D). Opal Polymer HRP Ms + Rb was used as a secondary antibody, and Nuclear DNA was labeled with DAPI (shown in blue). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

Panel A : merged staining of anti-GLUT2 (magenta; Opal™690), anti-eNOS (green; Opal™520) and anti-CD163 (gray; Opal™570) on human liver.
Panel B : anti-GLUT2 staining membrane of hepatocytes in human liver.
Panel C : anti-eNOS staining endothelium in human liver.
Panel D : anti-CD163 staining Kupffer cells in human liver.

The section was incubated in three rounds of staining : in the order of ab260003, ab317582 and ab213612 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

• mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-Glucose Transporter GLUT2 antibody [EPR22946-74] (AB234440)

Fluorescence multiplex immunohistochemical analysis of human liver (formalin-fixed paraffin-embedded section). Panel A shows merged staining of anti-eNOS stained on endothelial cells (ab252439; red; Opal™570) at 1 : 1000 ( 1.004 μg/ml) [Panel B], anti-CD163 stained on Kupffer cells (ab213612; green; Opal™520) at 1 : 8000 ( 0.13 μg/ml) [Panel B], and anti-Glucose Transporter GLUT2 stained on membrane of hepatocytes (ab234440; gray; Opal™690) at 1 : 200 ( 3.005 μg/ml) [Panel D] on human liver. DAPI was used as a nuclear counter stain. Followed by Opal Polymer HRP Ms + Rb secondary. The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope. The section was incubated in three rounds of staining : in the order of ab234440, ab213612, and ab252439 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins was used.
